Introduction

There are few developers in the world that have never used an issue tracker. But there are even fewer developers who have ever used an issue tracker which uses a graph database. This is a shame because issue tracking really maps much better onto a graph database, than it does onto a relational database. Proof of that is the JIRA database schema.

Now obviously, the example below does not have all of the features that a tool like JIRA provides. But it is only a proof of concept, you could map every feature of JIRA into a Neo4J database. What I’ve done below, is take out some of the core functionalities and implement those.

The data set

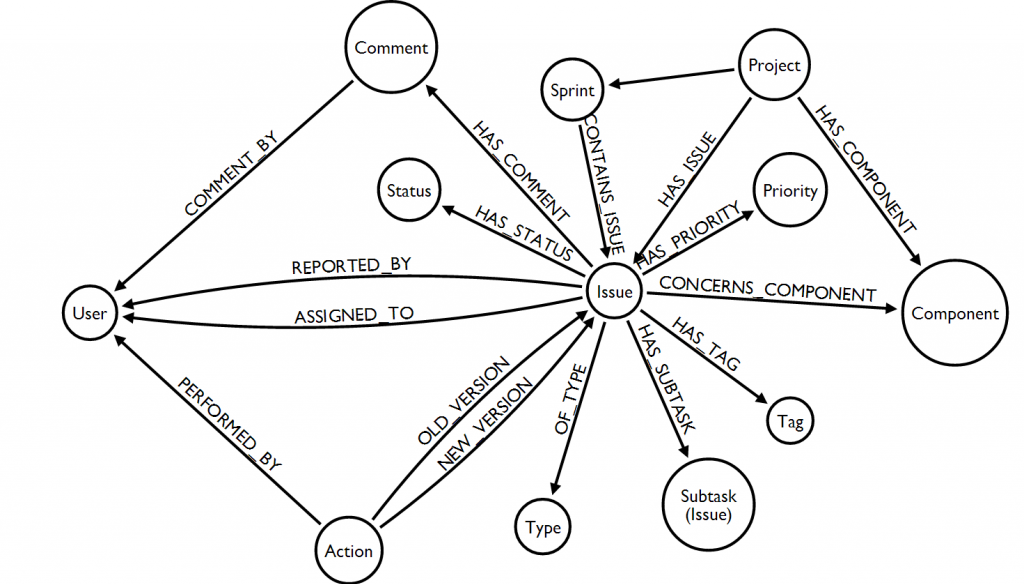

As you can see, the entire domain is centered around the issues, hence the name issue tracker. Some of the nodes contain constants (for instance priority or type) and can be reused in every project, but they could also be remade for every project since you’ll hardly ever want to search outside of your project.

CREATE

(emil:USER {name: 'Emil Eifrem'}),
(peter:USER {name: 'Peter Neubauer'}),
(michael:USER {name: 'Michael Hunger'}),

(open:STATUS {value: 'Open'}),
(inprogress:STATUS {value: 'In Progress'}),
(reopened:STATUS {value: 'Reopened'}),
(resolved:STATUS {value: 'Resolved'}),
(closed:STATUS {value: 'Closed'}),
(waiting:STATUS {value: 'Waiting'}),

(bug:TYPE {value: 'Bug'}),
(task:TYPE {value: 'Task'}),
(subtask:TYPE {value: 'Sub-task'}),
(improvement:TYPE {value: 'Improvement'}),
(newfeature:TYPE {value: 'New Feature'}),

(cypher_tag:TAG {value: 'Cypher'}),

(issue_1:ISSUE:CURRENT {id: 'issue_1', summary: 'This is a first issue', description: 'Yes, this is definitely a first issue and it has a description.'}),
(issue_2:ISSUE:CURRENT {id: 'issue_2', summary: 'This is a second issue', description: 'Yes, this is definitely a second issue and it has a description.'}),

(issue_1_old:ISSUE:HISTORICAL {id: 'issue_1', summary: 'This used to be a first issue', description: 'Yes, it was until it was changed'}),

(issue_3:ISSUE:CURRENT {id: 'issue_3', summary: 'This is a subtask', description: 'Yes, it is a subtask indeed.'}),

(neo4j:PROJECT {id: 'NEO4J', name: 'Neo4j Graph Database'}),

(sprint1:SPRINT {id: 'sprint_1', name: 'Initial sprint'}),
(sprint2:SPRINT {id: 'sprint_2', name: 'Second sprint'}),

(cyphercomponent:COMPONENT {id: 'cypher', name: 'Cypher Component'}),
(graphvizcomponent:COMPONENT {id: 'graphviz', name: 'Graphviz Component'}),

(trivial:PRIORITY {value: 'trivial'}),
(minor:PRIORITY {value: 'minor'}),
(major:PRIORITY {value: 'major'}),
(critical:PRIORITY {value: 'critical'}),
(blocker:PRIORITY {value: 'blocker'}),

(comment:COMMENT {id: 'comment_1', title: 'Comment Title', content: 'Comment content'}),

(update:ACTION {type: 'update'}),


issue_1-[:REPORTED_BY]->emil,
issue_1-[:ASSIGNED_TO]->michael,
issue_2-[:REPORTED_BY]->peter,
issue_2-[:ASSIGNED_TO]->peter,

issue_1-[:HAS_COMMENT]->comment,
comment-[:COMMENT_BY]->michael,

update-[:PERFORMED_BY]->michael,
update-[:OLD_VERSION]->issue_1_old,
update-[:NEW_VERSION]->issue_1,

issue_1-[:OF_TYPE]->bug,
issue_2-[:OF_TYPE]->task,
issue_1_old-[:OF_TYPE]->bug,
issue_3-[:OF_TYPE]->subtask,

issue_2-[:HAS_SUBTASK]->issue_3,

issue_1-[:HAS_PRIORITY]->major,
issue_2-[:HAS_PRIORITY]->critical,
issue_3-[:HAS_PRIORITY]->blocker,
issue_1_old-[:HAS_PRIORITY]->major,

issue_1-[:HAS_STATUS]->open,
issue_2-[:HAS_STATUS]->reopened,
issue_3-[:HAS_STATUS]->resolved,

issue_2-[:HAS_TAG]->cypher_tag,
issue_3-[:HAS_TAG]->cypher_tag,

issue_2-[:CONCERNS_COMPONENT]->cyphercomponent,
issue_3-[:CONCERNS_COMPONENT]->cyphercomponent,
issue_1-[:CONCERNS_COMPONENT]->graphvizcomponent,

neo4j-[:HAS_ISSUE]->issue_1,
neo4j-[:HAS_ISSUE]->issue_2,
neo4j-[:HAS_ISSUE]->issue_3,
neo4j-[:HAS_ISSUE]->issue_1_old,

sprint1-[:CONTAINS_ISSUE]->issue_1,
sprint1-[:CONTAINS_ISSUE]->issue_3,
sprint2-[:CONTAINS_ISSUE]->issue_2,

neo4j-[:HAS_SPRINT]->sprint1,
neo4j-[:HAS_SPRINT]->sprint2,

neo4j-[:HAS_COMPONENT]->cyphercomponent,
neo4j-[:HAS_COMPONENT]->graphvizcomponent;
Loading graph...

Use Cases

Get all current issues

MATCH issue:ISSUE:CURRENT
RETURN issue.id, issue.summary, issue.description

Get all current open issues

MATCH issue:ISSUE:CURRENT-[:HAS_STATUS]->status:STATUS
WHERE status.value='Open'
RETURN issue.id, issue.summary, issue.description

Get all current open issues assigned to Michael

MATCH user<-[:ASSIGNED_TO]-issue:ISSUE:CURRENT-[:HAS_STATUS]->status:STATUS
WHERE user.name='Michael Hunger' AND status.value='Open'
RETURN issue.id, issue.summary, issue.description

Get all current open issues assigned to Michael in sprint 1

MATCH user<-[:ASSIGNED_TO]-issue:ISSUE:CURRENT-[:HAS_STATUS]->status:STATUS,
issue<-[:CONTAINS_ISSUE]-sprint:SPRINT
WHERE user.name='Michael Hunger' AND status.value='Open' AND sprint.id='sprint_1'
RETURN issue.id, issue.summary, issue.description

Get all current issues assigned to and reported by the same person

MATCH user<-[:ASSIGNED_TO]-issue:ISSUE:CURRENT-[:REPORTED_BY]->user
RETURN issue.id, issue.summary, user.name

Get the history for an issue

MATCH issue:ISSUE-[:NEW_VERSION]-action:ACTION-[OLD_VERSION]-issueold:ISSUE:HISTORICAL
RETURN issueold.summary, issueold.description

Get the blocking priority issues

MATCH issue:ISSUE:CURRENT-[:HAS_PRIORITY]->priority:PRIORITY
WHERE priority.value='blocker'
RETURN issue.id, issue.summary

Get the comments on an issue

MATCH issue:ISSUE-[:HAS_COMMENT]->comment:COMMENT-[:COMMENT_BY]->user:USER
WHERE issue.id='issue_1'
RETURN comment.title, comment.content, user.name

Other queries

In a similar fashion like the queries above, you can search based on priority, labels, type, status, …​ or combine several of them into one search query. In this fashion, you can perform any search that JIRA also provides. You can improve the performance by creating schema indices on the properties you’re looking up in the WHERE clause.

Play around with it in the console
