Union types

This is the documentation of the GraphQL Library version 7. For the long-term support (LTS) version 5, refer to GraphQL Library version 5 LTS.

This page describes how to use unions in the context of relationships, and exemplifies how to use them in queries and mutations.

Data model

Take the following graph as an example in which a User type has a relationship HAS_CONTENT to a Content type, which is a union of two node types, Blog and Post.

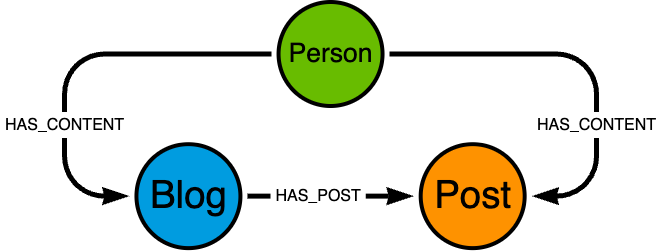

Figure 1. Model of a User node connected to both Blog and Post nodes through the HAS_CONTENT relationship. The HAS_CONTENT relationship properties differ between the two target node types.

Sample database data

Consider a database consisting of the following sample data, which follows the data model described above.

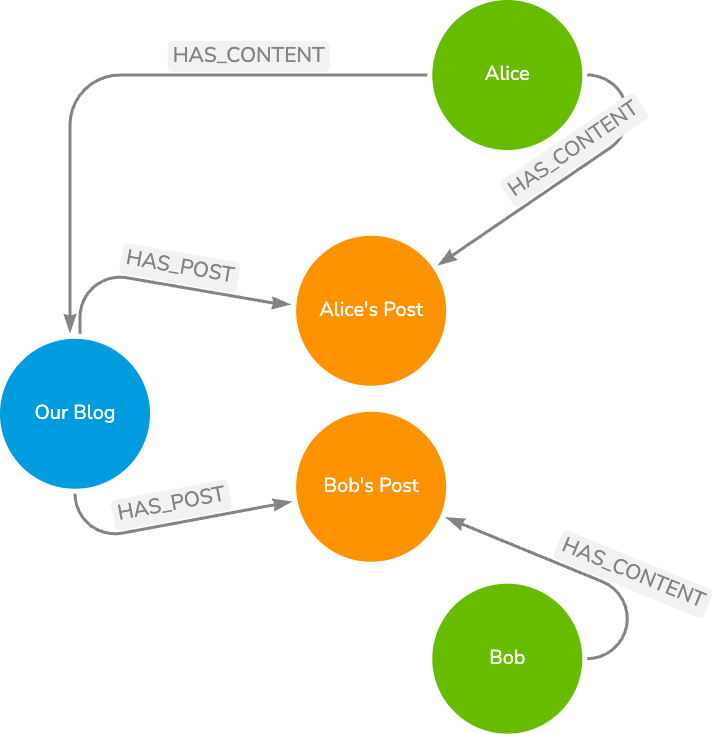

Figure 2. Sample database data of a Blog node (shown in blue) that has HAS_POST relationships to two Posts (shown in orange). User nodes (shown in green) have HAS_CONTENT relationships to both Blog and Post nodes.

Writing type definitions

Conceptually, both Blog and Post are types of "content" attributed to a User. However they are fundamentally different types of content with different fields therefore they can be grouped together by a union type.

Defining the union and node types with relationship fields

union Content = Blog | Post

type Blog @node {
    title: String
    posts: [Post!]! @relationship(type: "HAS_POST", direction: OUT)
}

type Post @node {
    content: String
}

type User @node {
    name: String
    content: [Content!]! @relationship(type: "HAS_CONTENT", direction: OUT)
}

Querying a union

Union types are useful for modeling relationships that can point to multiple different node types which do not share common fields.

When querying a relationship field of a union type, you must use inline fragments to specify which fields to return for each type in the union.

Example 1. Get User nodes with related Content nodes with inline fragments for all concrete member types

Notice the use of inline fragments for all the member types of the Content union, which are Blog and Post in this case.

query {
    users {
        name
        content {
            ... on Blog {
                title
            }
            ... on Post {
                content
            }
        }
    }
}

If the inline fragment corresponding to a union member type is not included in the query, then no fields of that type are returned. Instead the response will be an empty object.

Example 2. Get User nodes with related Content nodes omitting the Post type inline fragment

The following query only includes an inline fragment for the Blog type, and omits the inline fragment for the Post type:

query {
    users {
        name
        content {
            ... on Blog {
                title
            }
        }
    }
}

The response to this query includes empty objects for the Post type, as no fields were specified for it in the query:

{
    "data": {
        "users": [
            {
                "name": "Alice",
                "content": [{ "title": "Alice's Blog" }, {}]
            },
            {
                "name": "Bob",
                "content": [{}]
            }
        ]
    }
}

Filtering for a specific union member type

To filter for a specific union member type, you can use the where argument on the relationship field.

Example 3. Get User nodes with related Content nodes filtered by Blog type

Notice the inline fragment corresponding to the Post type does not need to be included in the query, as they are filtered out by the where argument:

query {
    users {
        name
        content(where: { Blog: { NOT: { title: { eq: null } } }}) {
            ... on Blog {
                title
            }
        }
    }
}

Creating a union relationship

To create the sample database data shown in the graph above, one approach is to first create the User nodes.

User Alice is connected through the HAS_CONTENT relationship to a Blog node with two Post nodes connected to it through the HAS_POST relationship. The relationship to the Content union can be created through a nested mutation at the same time.

Example 4. Create User nodes with HAS_CONTENT relationship to Blog nodes

Notice the specification of the concrete type (Blog) of the Content union in the create input.

mutation {
    createUsers(
        input: [
            {
                name: "Bob"
            },
            {
                name: "Alice"
                content: {
                    Blog: {
                        create: [
                            {
                                node: {
                                    title: "Our Blog"
                                    posts: {
                                        create: [
                                            { node: { content: "Alice's Post" } },
                                            { node: { content: "Bob's Post" } }
                                        ]
                                    }
                                }
                            }
                        ]
                    }
                }
            }
        ]
    ) {
        users {
            name
        }
    }
}

Executing this mutation on an empty database creates the following graph:

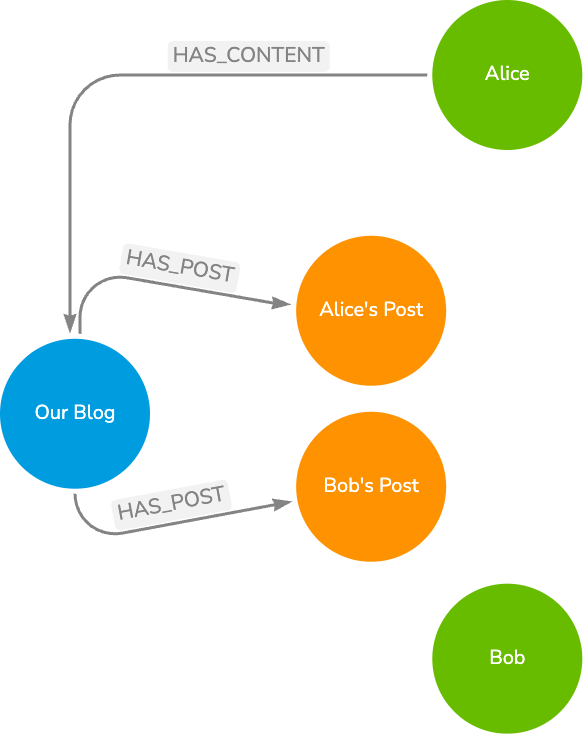

Figure 3. Sample database data of User nodes (shown in green) and a Blog node (shown in blue) that has HAS_POST relationships to two Posts (shown in orange). The HAS_CONTENT relationship between User and Post nodes is missing.

Update a union relationship

You can update the User nodes and create their HAS_POST relationships to the Post nodes part of the Content union.

Example 5. Update User nodes with HAS_CONTENT relationships to Post nodes

Notice the specification of the concrete type (Post) of the Content union in the update input.

mutation {
    mutation {
        updateUsers(
           where: { name: { eq: "Alice" } }
           update: {
               content: {
                    Post: [
                        {
                            connect: [
                                {
                                    where: { node: { content: { eq: "Alice's Post" } } }
                                }
                            ]
                        }
                    ]
                }
            }
        ) {
            users {
                name
            }
        }
    }
}

Execute the same mutation again for User Bob, adjusting the filter criteria.
