Neo4j Helm chart for standalone server deployments

In the standalone server setup, the user is responsible for defining a single YAML file, containing all the configurations for the Neo4j standalone server, and for running the helm install my-neo4j-release neo4j/neo4j -f values.yaml command to deploy the Neo4j DBMS.

Example of a values.yaml file
neo4j:
  edition: community
  name: my-neo4j
volumes:
  data:
    mode: "defaultStorageClass"
Example of a Helm install command for deploying a standalone server
helm install my-neo4j neo4j/neo4j -f values.yaml

Then, the Neo4j Helm chart creates Kubernetes entities needed for running and accessing Neo4j.

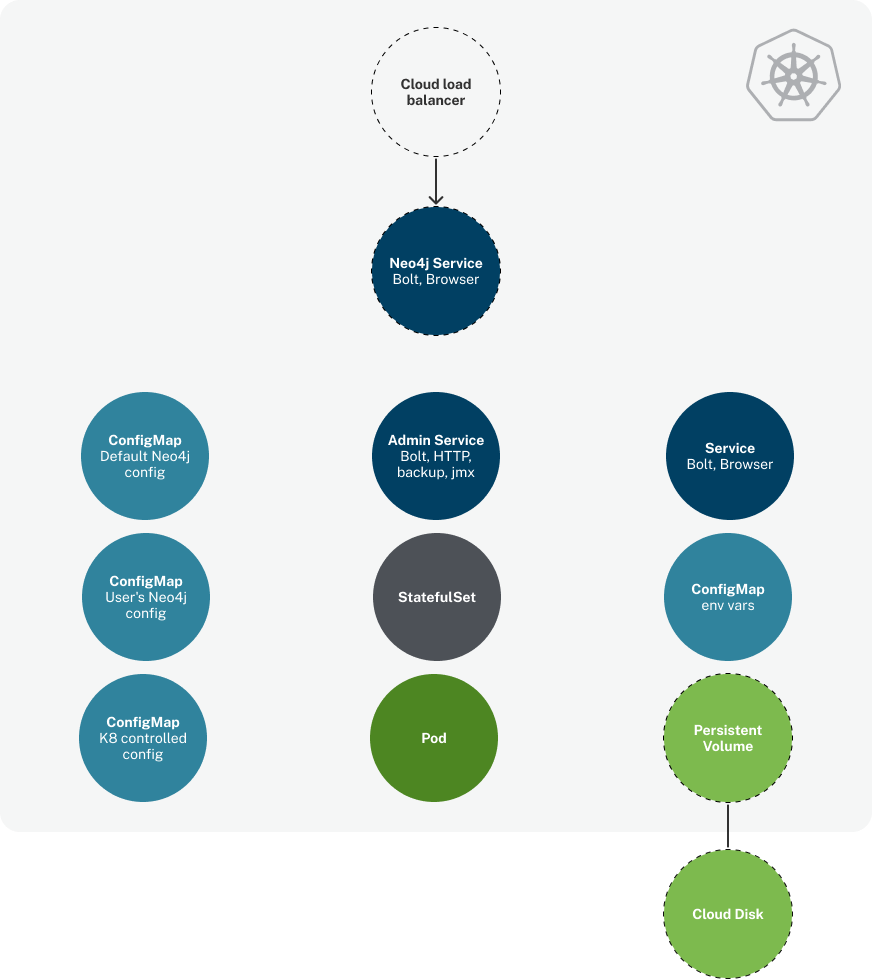

The following diagram is a schematic representation of the Helm chart involved and the Kubernetes and Cloud resources it instantiates when installed:
