Map

A map renders all returned nodes, relationships and paths on a geographical map.

The visualization uses map tiles from OpenStreetMap but they are served through Neo4j’s own tile service rather than public OpenStreetMap APIs, so no data is sent to external services.

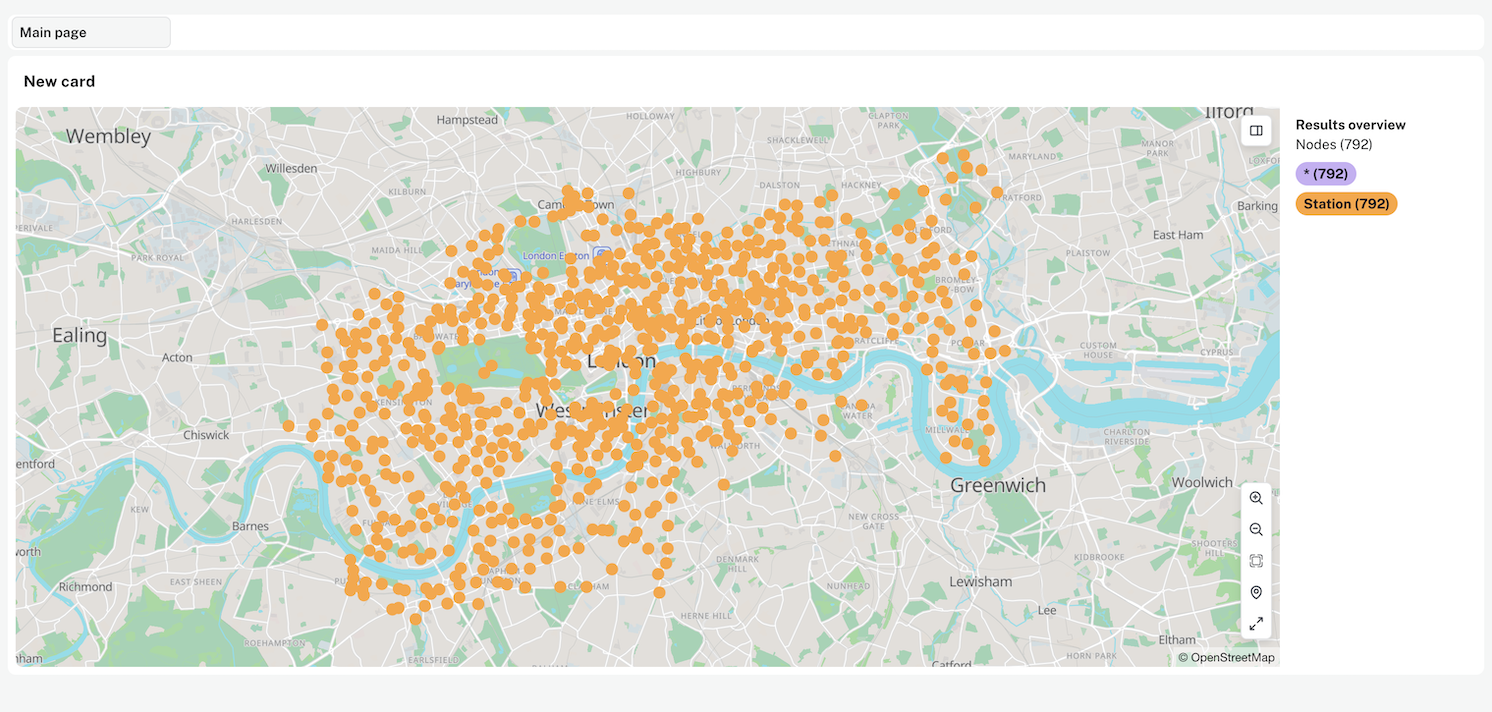

Figure 1. Map visualization example

Node positions are detected in the following order:

Point property

Any property of type Point containing a valid geographic coordinate (WGS 84 2D or 3D). The property can be named anything as long as the value is of type Point. Note: While 3D points are accepted, the height/z value is ignored and not rendered. For more info, see Spatial values > Point documentation
Fallback latitude / longitude

If no Point property is found, the visualization looks for properties named exactly latitude and longitude. Both must exist.
Fallback properties: lat / long

If the above are not found, properties named exactly lat and long are used. Again, both must exist.

If more than one spatial property is detected, the property for node placement can be changed in Settings. Fallback properties (latitude / longitude and lat / long) are not configurable.

If a node has no detectable spatial properties it’s not displayed on the map. A Not detected label appears in Settings, and a warning message is shown in the preview.

If the query returns a relationship whose connected nodes lack spatial properties, the relationship will not be shown on the map.

Example map graph

This graph models a Nordic geography using a few cities, airports and places.

This example uses Cypher to create a graph with 10 nodes and 9 relationships:

4 City nodes (Stockholm, Göteborg, Malmö, Uppsala)
3 Airport nodes (Arlanda Airport, Landvetter Airport, Malmö Airport)
3 Place nodes (Stadshuset, Turning Torso, Slottsskogen)

Create an Aura instance, then go to "Query". In the Cypher editor, copy and paste the following Cypher and execute the query:

// 1. Setup Constraints
CREATE CONSTRAINT city_name IF NOT EXISTS FOR (c:City) REQUIRE c.name IS UNIQUE;
CREATE CONSTRAINT airport_name IF NOT EXISTS FOR (a:Airport) REQUIRE a.name IS UNIQUE;
CREATE CONSTRAINT place_name IF NOT EXISTS FOR (p:Place) REQUIRE p.name IS UNIQUE;

// 2. Create Cities (With dual native Point properties)
CREATE (sto:City {
    name: "Stockholm",
    location: point({latitude: 59.3293, longitude: 18.0686}),
    location2: point({latitude: 59.3400, longitude: 18.0800})
})
CREATE (got:City {
    name: "Göteborg",
    location: point({latitude: 57.7089, longitude: 11.9746}),
    location2: point({latitude: 57.7150, longitude: 11.9900})
})
CREATE (mal:City {
    name: "Malmö",
    location: point({latitude: 55.6059, longitude: 13.0008}),
    location2: point({latitude: 55.5900, longitude: 13.0100})
})
CREATE (upp:City {
    name: "Uppsala",
    location: point({latitude: 59.8586, longitude: 17.6389}),
    location2: point({latitude: 59.8650, longitude: 17.6500})
});

// 3. Create Airports (Using 'latitude' and 'longitude')
CREATE (arn:Airport {name: "Arlanda Airport", iata: "ARN", latitude: 59.6498, longitude: 17.9237})
CREATE (land:Airport {name: "Landvetter Airport", iata: "GOT", latitude: 57.6628, longitude: 12.2798})
CREATE (mmx:Airport {name: "Malmö Airport", iata: "MMX", latitude: 55.5395, longitude: 13.3649});

// 4. Create Places (Using shorthand 'lat' and 'long')
CREATE (sh:Place {name: "Stadshuset", kind: "Landmark", lat: 59.3275, long: 18.0543})
CREATE (tt:Place {name: "Turning Torso", kind: "Building", lat: 55.6132, long: 12.9767})
CREATE (sk:Place {name: "Slottsskogen", kind: "Park", lat: 57.6826, long: 11.9405});

// 5. Create Relationships (Place/Airport -> City)
MATCH (a:Airport {name: "Arlanda Airport"}), (c:City {name: "Stockholm"}) MERGE (a)-[:SERVES_CITY]->(c);
MATCH (a:Airport {name: "Landvetter Airport"}), (c:City {name: "Göteborg"}) MERGE (a)-[:SERVES_CITY]->(c);
MATCH (a:Airport {name: "Malmö Airport"}), (c:City {name: "Malmö"}) MERGE (a)-[:SERVES_CITY]->(c);
MATCH (p:Place {name: "Stadshuset"}), (c:City {name: "Stockholm"}) MERGE (p)-[:SERVES_CITY]->(c);
MATCH (p:Place {name: "Slottsskogen"}), (c:City {name: "Göteborg"}) MERGE (p)-[:SERVES_CITY]->(c);
MATCH (p:Place {name: "Turning Torso"}), (c:City {name: "Malmö"}) MERGE (p)-[:SERVES_CITY]->(c);

// 6. Add Flight Paths between Airports
MATCH (arn:Airport {iata: "ARN"}), (land:Airport {iata: "GOT"})
MERGE (arn)-[:FLIGHT_PATH {distance_km: 395}]->(land);

MATCH (arn:Airport {iata: "ARN"}), (mmx:Airport {iata: "MMX"})
MERGE (arn)-[:FLIGHT_PATH {distance_km: 530}]->(mmx);

MATCH (land:Airport {iata: "GOT"}), (mmx:Airport {iata: "MMX"})
MERGE (land)-[:FLIGHT_PATH {distance_km: 235}]->(mmx);

Cypher examples

Airports serving cities

This example shows how connected airports and cities appear on the map.

An example of a natural language prompt:

Prompt for a data-focused dashboard

Show me all city nodes, and airport nodes, and the relationship between them.

A corresponding Cypher query:

Cities on a map

MATCH (c:City)-[r]-(a:Airport)
RETURN c, r, a
LIMIT 100

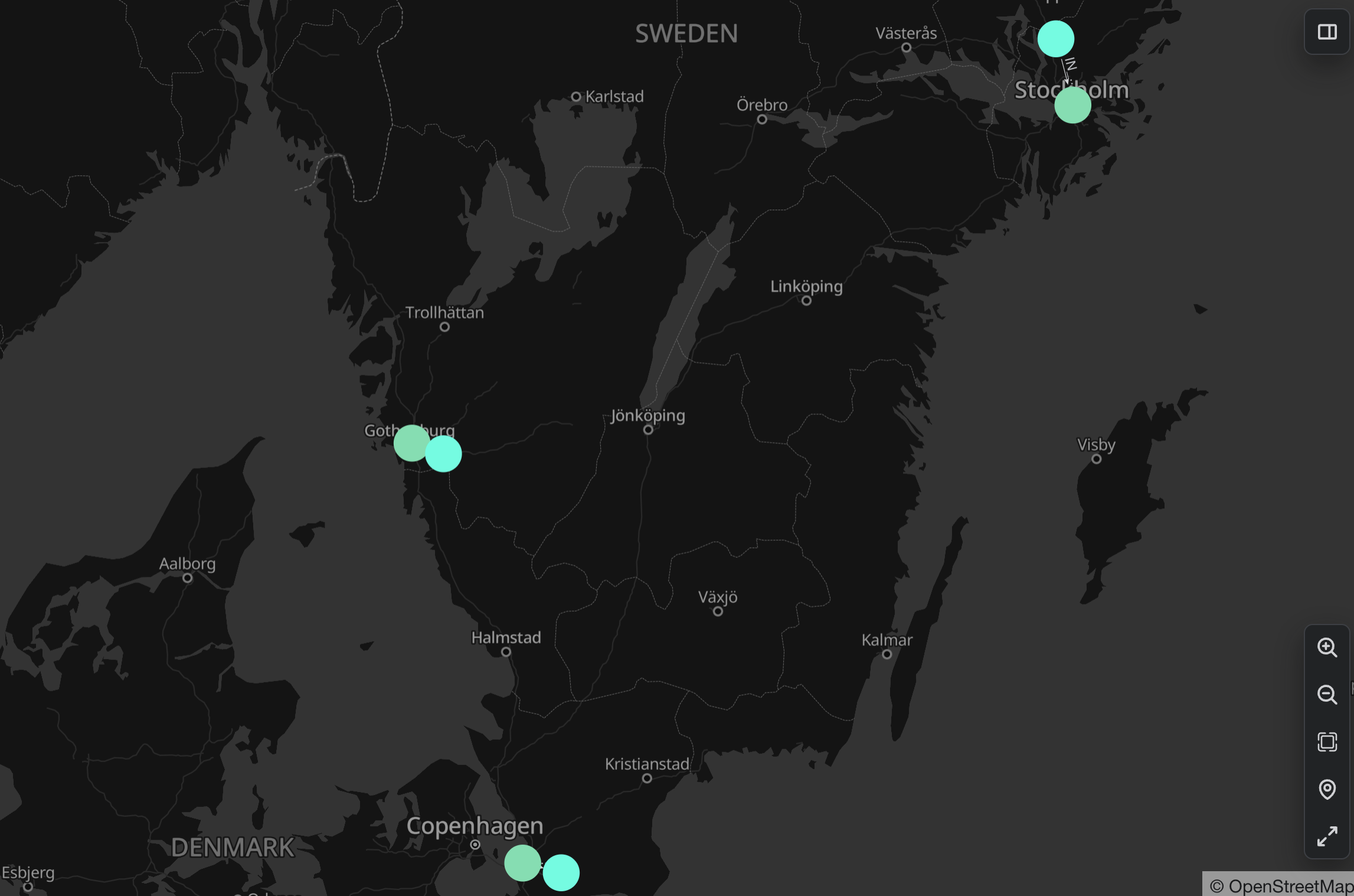

Figure 2. Example: City nodes, and airport nodes, and the relationship between them

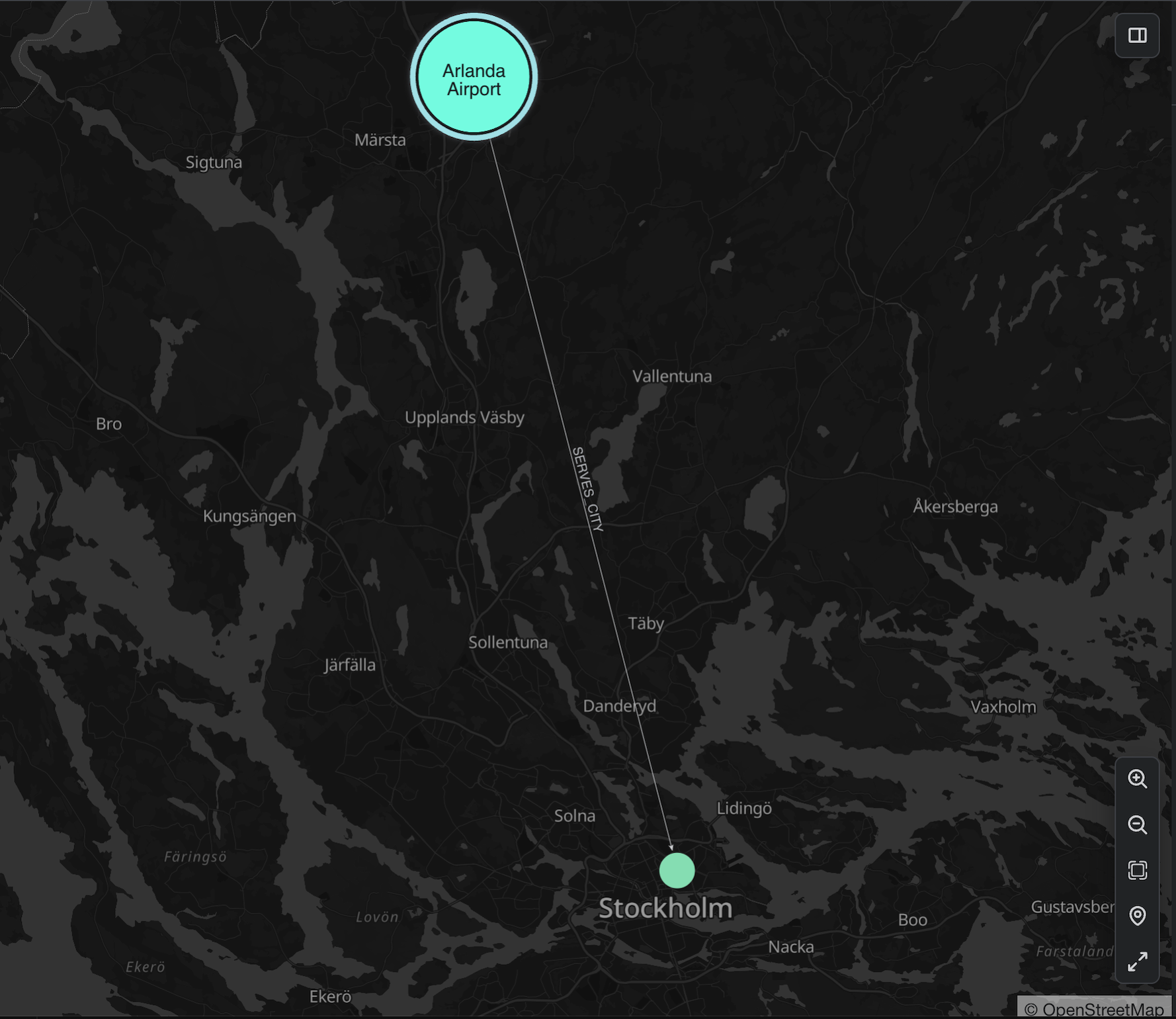

Zooming in on the map shows that Arlanda Airport serves Stockholm.

Figure 3. Example: Zoom in of airport serving a city nodes

Configuration

Map style

Minimal
Detailed

Geospatial properties

Choose which property defines the location for each label type. For example:

City: position2
Airport: coordinates

This lets you use different coordinate fields for different labels, depending on your graph’s schema. For example, you might place the City node for Stockholm directly at the city center, or slightly offset if you want visual spacing.

Styling

Styling changes apply across all cards.

Adjust how your map looks by editing a few visual properties:

Color: Choose a color for each node label or relationship type.
Size: Set the size of your nodes, or the width of relationship lines. Larger node sizes help captions show up more clearly.
Caption: Choose which property to display as the label for nodes or relationships. Relationship captions appear along the connecting line. Node captions appear only when there is enough space. If the node is too small, the label will not render. The default node size is the fourth item in the size selector.
