Add a deployment

Adding a self-managed deployment to fleet management is a straightforward process. First you add the deployment you want to monitor, then you set up the plugin, and finally you register your deployment.

In Instances, navigate to Self-managed and use the Add deployment button to get started.

new self managed

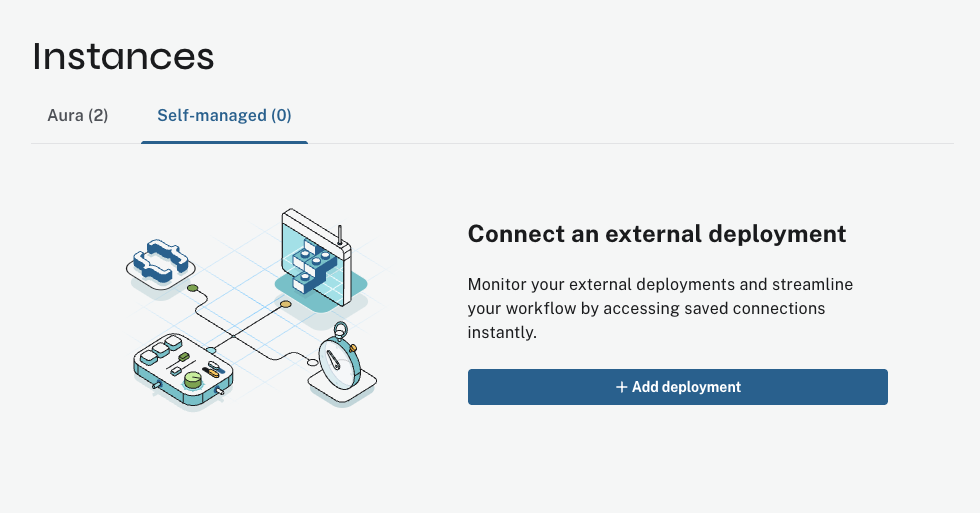

Figure 1. Add a new self-managed deployment

Then you need to decide what type of connection you want to create to the self-managed instance.

add sm deployment

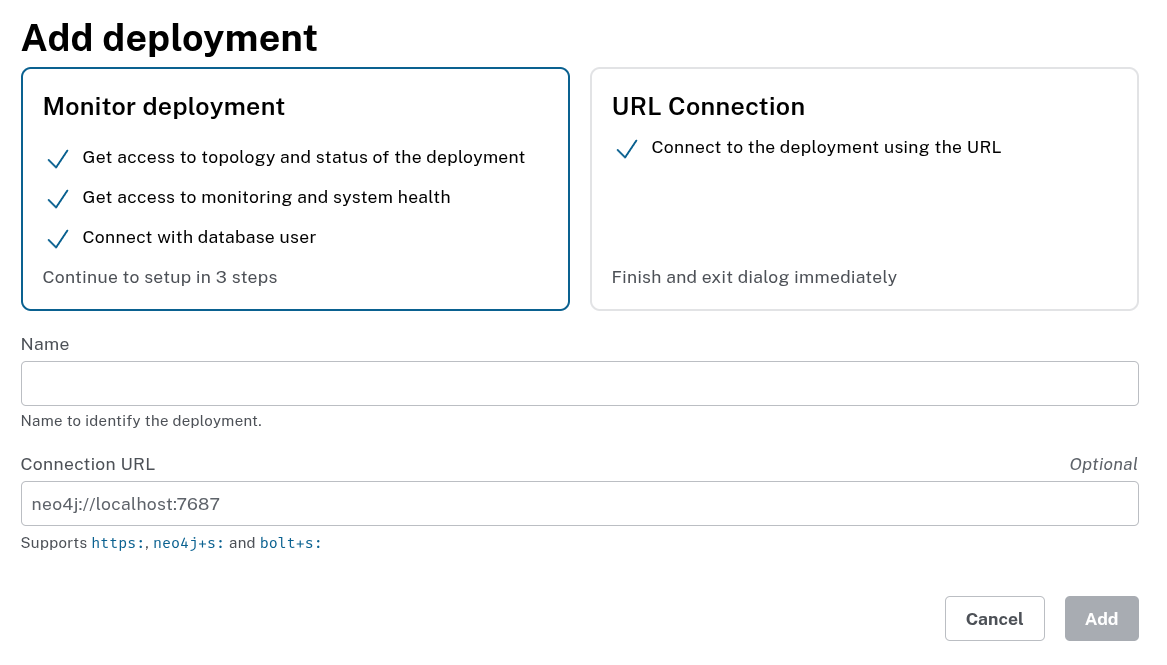

Figure 2. Add a self-managed deployment

The wizard provides two top-level options.

  • Monitor deployment - this option allows you to set up fleet management.

  • URL connection - this option allows you to add an unmonitored deployment that can still be connected to using the provided connection URL.

Set up the plugin

The next step of the wizard walks you through the process of adding the fleet management plugin to your Neo4j deployment.

Download the plugin

Follow the link in the wizard to download the plugin. Neo4j Fleet management plugin has the name format neo4j-fleet-management-plugin-VERSION-NEO4J_VERSION.jar. Select the appropriate plugin for your Neo4j version.

Install the plugin

If your self-managed deployment consists of multiple servers, the plugin needs to be installed on each one. See the Operations Manual → Configure plugins for instructions on how to install plugins.

As mentioned, the plugin provides a number of procedures for connection management and monitoring. To allow these to run, you need to enable them in the configuration. Add fleetManagement.* to dbms.security.procedures.unrestricted. For example:

dbms.security.procedures.unrestricted=fleetManagement.*

If dbms.security.procedures.allowlist is set in your configuration, fleetManagement.* should also be added to this setting, otherwise no change is needed.

dbms.security.procedures.allowlist=<existing-value>,fleetManagement.*

Restart Neo4j

Once the plugin is installed and configured, restart Neo4j to load the plugin.

Verify the plugin is installed correctly

By calling the procedure CALL fleetManagement.status(), for example in Neo4j Browser, you can verify that the plugin is installed correctly.

If the procedure returns a result, the plugin is installed, and you can select Next in the wizard.

Register the deployment

You register your deployment by first requesting a token, then registering the generated token.

Registering a token will associate the deployment with the Aura project which was used to generate the token. Never register a token obtained from a third party.

In the next step of the wizard, select an expiry time for the generated token and whether to enable automatic rotation. If auto-rotation is enabled, the plugin will automatically negotiate a new token before the current one is expired.

In the final step, you will see the generated token. Save it in a secure location and then register it using the procedure fleetManagement.registerToken, as described in the wizard. If your deployment is a cluster, the token only needs to be registered once to take effect across all servers.
