IP filtering

AuraDB Business Critical AuraDB Virtual Dedicated Cloud

IP filtering is a way to restrict access to your Aura instances over the public internet. Only allowing trusted IP addresses or CIDR ranges helps secure your environment without requiring private network configurations.

  • AuraDB Business Critical supports up to 20 allowed IP ranges.

  • AuraDB Virtual Dedicated Cloud supports up to 100 allowed IP ranges.

  • Contact support if you need to increase the limit.

Required roles

To create or edit IP filters, users must have one of the following roles:

  • Organization Owner

  • Organization Admin

Add a new filter

  1. In the Aura console, go to Organization Settings > Security > IP Filtering

  2. Add the name and description of the IP filter (Adding a description makes it easier to manage later, because descriptions will be displayed in the Allow List when you’ve finished creating the filter.)

  3. Select where to apply the filter:

    1. If you apply a filter to an Organization it applies to all instances in the org

    2. If you apply a filter to a Project it applies to all instances in the project

    3. If you apply a filter to an Instance it applies to that individual instance

  4. Select allowed IP addresses:

    1. All: No filtering is applied, all IPs are allowed.

    2. Specific range of IP addresses: Add addresses or CIDR ranges. Ranges of IP addresses require CIDR notation e.g. 46.15.1.0 with a subnet mask of 255.255.255.240 is written as 46.15.1.0/28 which includes all hosts from 46.15.1.1 through to 46.15.1.14. You can use online subnet calculators to help determine the CIDR.

  5. Once all the required information is provided, selecting Create enforces the IP filter.

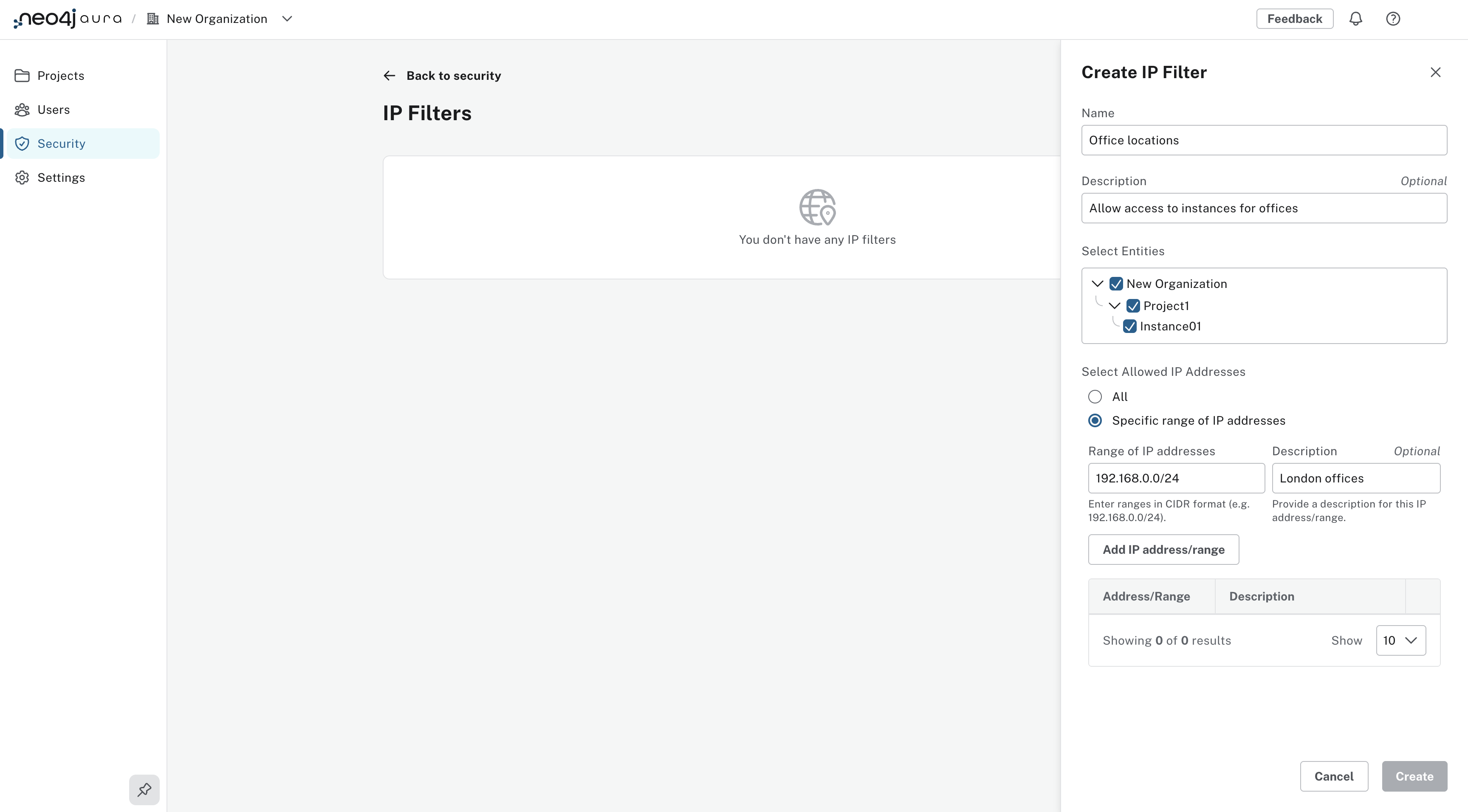

ip filtering
Figure 1. Add a filter

Edit a filter

IP filters apply only to new network connections. Existing connections are not affected if they are no longer in the allow list after an IP filter is edited or deleted. Only new connections are compared to the updated allow list.

To edit an existing filter, use the […​] more menu, then select Inspect.

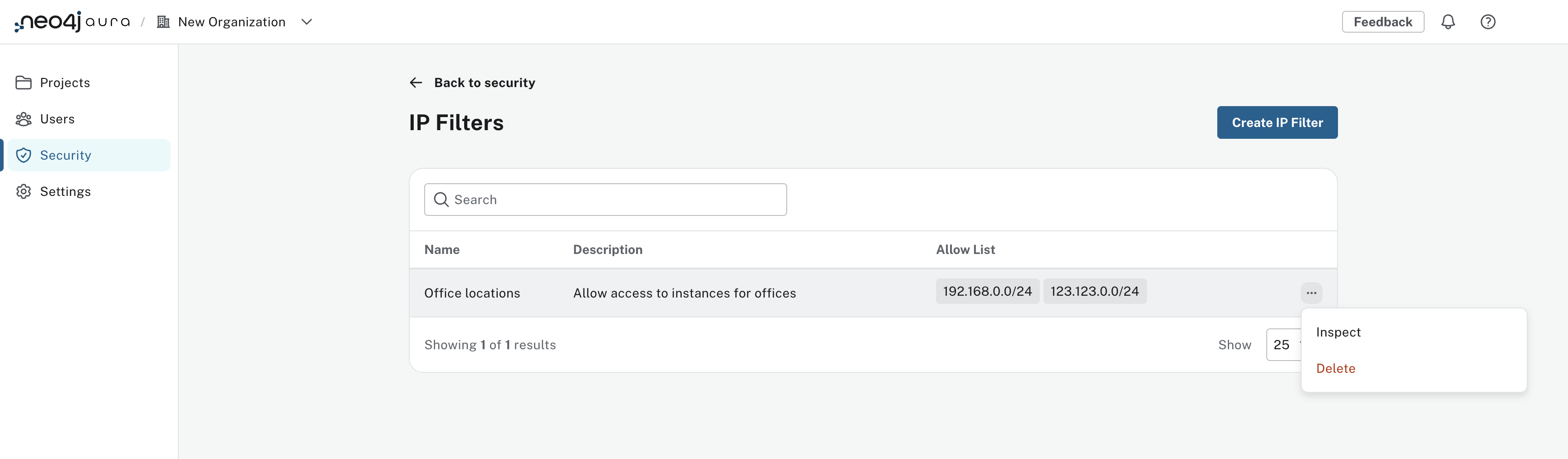

edit a filter
Figure 2. Edit a filter

Scope and inheritance

IP filters allow or deny a connection to an instance. Each instance can only have one IP filter. Applying filters at broader levels (organization or project level) helps admins enforce access control across multiple instances without configuring each one individually. Filters set at the organization or project level are inherited by all existing instances and newly created instances within that scope.

New instances created in an organization or project will automatically inherit the IP filter applied to the project.

IP filtering and GDS Sessions

Graph Analytics is an on-demand ephemeral compute environment for running GDS workloads. Each compute unit is called a GDS Session.

When a GDS Session uses an Aura instance as its data source, the IP filter set on that Aura instance applies to the GDS Session. GDS Sessions connecting to non-Aura or self-managed instances are out of scope.

Benefits and use cases

IP filtering is helpful if user credentials are compromised because access is restricted to traffic originating from approved IP addresses.

It’s a great fit when you want to:

  • Quickly secure public instances without cloud configuration - useful when an instance is not managing sensitive production data.

  • Limit access to trusted networks such as office locations or partner data centers.

  • Enforce corporate or regulatory access boundaries with minimal setup.

  • Apply access controls to dev or test environments where private endpoints are unnecessary.

  • Block access from geographic regions outside an area of operation. Standardize access policies across an organization or project without having to manage each instance individually.

IP filtering vs. Private Endpoints

IP filtering is a simpler solution for restricting network access when you don’t yet need to implement a Private Endpoint. Filters work on public endpoints and can be used if you later configure a Private Endpoint, as long as public traffic is still enabled. If you want to restrict traffic more securely to only private cloud networks, set up a Private Endpoint. Private Endpoints provide secure access through your VPC, while IP filtering works on public endpoints.

With IP filtering:

  • No VPN or Private Endpoint setup is required.

  • Users only need to add their local IP address to the Allow List to access Aura from tools such as Query, Explore, and Neo4j Desktop.

Using neo4j-admin database upload with IP filtering

To use neo4j-admin database upload add the specific Control Plane Egress to your IP filter allow list. This ensures the temporary connection needed to push data is permitted.
