Card Component

Light Dark

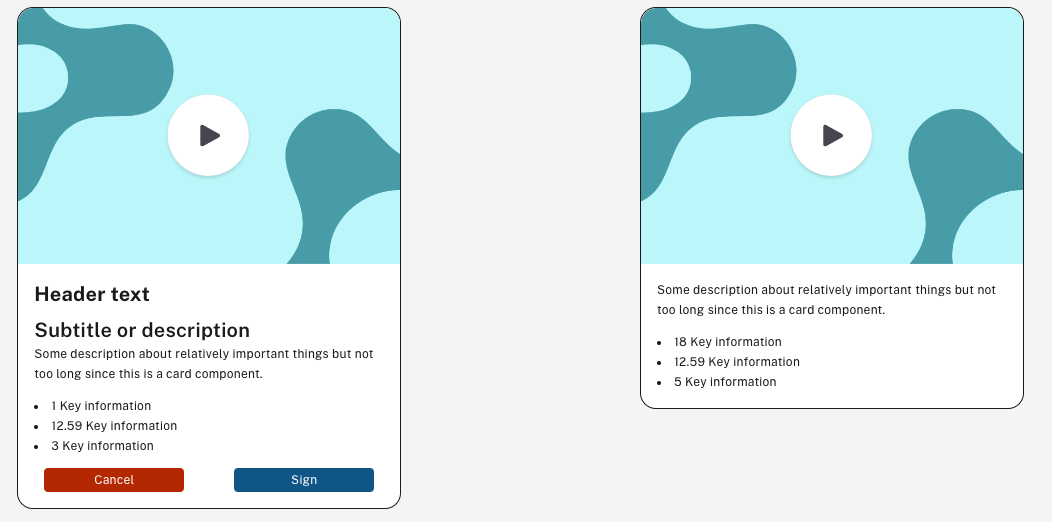

CardLight

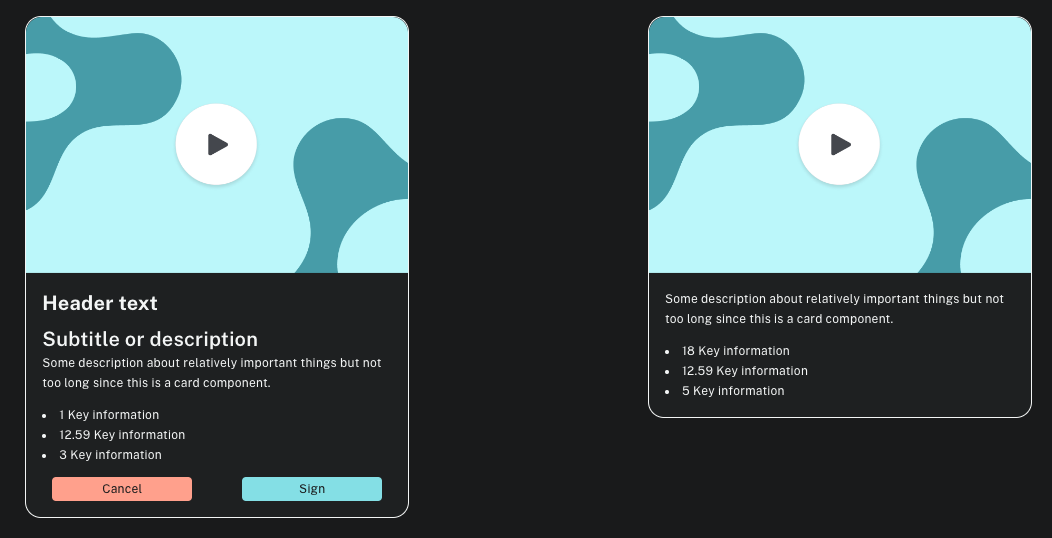

CardDark

The Card component is a flexible and versatile UI element designed using a compound component pattern. It supports both vertical and horizontal layouts, optional images or icons, and structured content sections. The component provides a clean, modern interface for displaying organized information.

Link to the live preview

Link to the component code

Pre-requisite

  • Ensure you have the @neo4j-ndl library installed in your project to use this Card component.

Usage

To use the Card component in your application, follow these steps:

  1. Import the component and required assets:

    import Card from './path/to/Card';
import testImg from './assets/cardImg.png';
import { Button, Typography } from '@neo4j-ndl/react';
import { AcademicCapIconOutline, RocketLaunchIconOutline } from '@neo4j-ndl/react/icons';

  2. Use the compound component pattern to build your card:

    // Vertical card with image and full content
<Card layout='vertical' imageSrc={testImg} imageSize='full' className='h-auto w-96'>
  <Card.Header>Header text</Card.Header>
  <Card.Subheader>Subtitle or description</Card.Subheader>
  <Card.Content>
    <p>Some description about relatively important things.</p>
    <ul className='list-disc list-inside'>
      <li>Key information item 1</li>
      <li>Key information item 2</li>
      <li>Key information item 3</li>
    </ul>
    <div className='flex flex-row min-w-full justify-between'>
      <Button size='small' color='danger' className='w-2/5 mx-2.5'>
        <Typography variant='body-small'>Cancel</Typography>
      </Button>
      <Button size='small' color='primary' className='w-2/5 mx-2.5'>
        <Typography variant='body-small'>Confirm</Typography>
      </Button>
    </div>
  </Card.Content>
</Card>

// Horizontal card with icon
<Card layout='horizontal' iconSystem={AcademicCapIconOutline}>
  <Card.Header>Header text</Card.Header>
  <Card.Content>
    <p>Content for horizontal layout card.</p>
  </Card.Content>
</Card>

Component Props

The main Card component accepts the following props:

Name Description Required

layout

Layout orientation: 'vertical' or 'horizontal'

Yes

imageSrc

Path to the image to display in the card

No

imageSize

Size of the image: 'full' or 'small' (default: 'small')

No

iconSystem

React component for an icon from @neo4j-ndl/react/icons

No

children

Child components (Card.Header, Card.Subheader, Card.Content)

Yes

className

Additional CSS classes for styling

No

Compound Components

The Card component uses a compound component pattern with three sub-components:

Card.Header

Displays the main title of the card using Typography variant='h5'.

<Card.Header>Your Card Title</Card.Header>

Card.Subheader

Displays a subtitle or secondary information using Typography variant='subheading-large'.

<Card.Subheader>Subtitle or description</Card.Subheader>

Card.Content

Contains the main content of the card using Typography variant='body-small' with flex layout.

<Card.Content>
  <p>Your main content here...</p>
  <ul>...</ul>
  <div>Buttons or other elements</div>
</Card.Content>

Key components

Layout System

The Card component supports two layout orientations that automatically adjust the content flow:

Vertical Layout: Content stacks vertically with image/icon at the top

<Card layout='vertical' imageSrc={testImg} imageSize='full'>
  {/* Content flows vertically */}
</Card>

Horizontal Layout: Content flows horizontally with image/icon on the left

<Card layout='horizontal' imageSrc={testImg} imageSize='full' className='h-72'>
  {/* Content flows horizontally */}
</Card>

Image and Icon Support

The component supports either images or system icons, but not both simultaneously:

Image Support: - imageSize='full': Full-width/height image that adapts to layout - imageSize='small': Small 16x16 image for minimal presence

// Full-size image
<Card layout='vertical' imageSrc={testImg} imageSize='full'>
  {/* Content */}
</Card>

// Small image
<Card layout='horizontal' imageSrc={testImg} imageSize='small'>
  {/* Content */}
</Card>

Icon Support: Uses Neo4j Design Language icons

<Card layout='vertical' iconSystem={RocketLaunchIconOutline}>
  {/* Content */}
</Card>

Compound Component Architecture

The Card uses React’s compound component pattern, allowing flexible content composition:

const Card: React.FC<CardProps> & {
  Header: React.FC<CardHeaderProps>;
  Subheader: React.FC<CardSubheaderProps>;
  Content: React.FC<CardContentProps>;
} = ({ layout, imageSrc, imageSize, iconSystem, children, className }) => {
  // Component implementation
};

Card.Header = Header;
Card.Subheader = Subheader;
Card.Content = Content;

Responsive Design

The component automatically adapts to different layouts:

  • Horizontal layout: Image takes 1/3 width, content takes 2/3 width

  • Vertical layout: Image takes full width, content stacks below

  • Flexible styling: Supports custom className for additional styling

// Grid layout for multiple cards
<div className='grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-8'>
  {cards.map((card, index) => (
    <Card key={index} layout='vertical' className='h-auto w-96'>
      {/* Card content */}
    </Card>
  ))}
</div>

Content Flexibility

Each compound component provides semantic structure:

  • Header: Main title with h5 typography

  • Subheader: Secondary information with subheading-large typography

  • Content: Flexible container supporting any React content (text, lists, buttons, etc.)

<Card.Content>
  <p>Text content</p>
  <ul className='list-disc list-inside'>
    <li>List items</li>
  </ul>
  <div className='flex justify-between'>
    <Button>Action 1</Button>
    <Button>Action 2</Button>
  </div>
</Card.Content>
