Choropleth

A Choropleth chart will render geographical data in geoJson polygons layout. It takes two fields:

code: String. This represents the country code of region to be used.
value: Number. Cardinal data to be used on the chart.

Examples

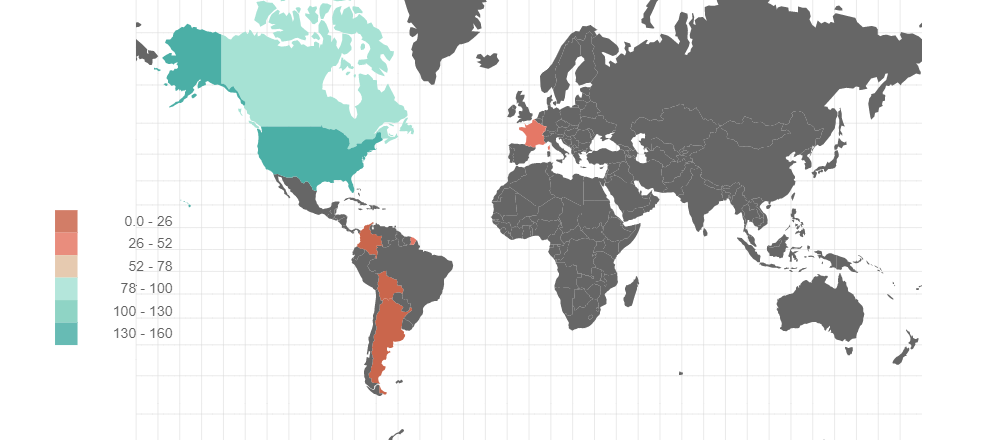

Basic Choropleth

MATCH (:Company{name:'NeoDash'})-[:HAS_DEPARTMENT]->(:Department)<-[:IN_DEPARTMENT]-(e:Employee),
(e)-[:LIVES_IN]->(c:Country)
WITH c.code as code, count(e) as value
RETURN code, value

Advanced Settings

Name	Type	Default Value	Description
Enable interactivity	on/off	on	If enabled, turn on animations when a user hovers over a polygon.
Color Scheme	List		The color scheme to use for the choropleth. Country colors will vary according their min to max ratio.
Polygon border width (px)	number	0	The width of the border of each rectangle.
Margin Left (px)	number	24	The margin in pixels on the left side of the visualization.
Margin Right (px)	number	24	The margin in pixels on the right side of the visualization.
Margin Top (px)	number	24	The margin in pixels on the top side of the visualization.
Margin Bottom (px)	number	40	The margin in pixels on the bottom side of the visualization.
Projection Scale	number	100	Projection Scale of the visualization
Projection x translation	number	0.5	This parameter will move the center of the visualization on the x axis
Projection y translation	number	0.5	This parameter will move the center of the visualization on the y axis
Auto-run query	on/off	on	When activated, automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.
Report Description	markdown text		When specified, adds another button the report header that opens a pop-up. This pop-up contains the rendered markdown from this setting.
