Table

The most common report in a dashboard is often a simple table view. NeoDash contains a powerful table component that can render all the data returned by a Cypher query. This includes simple data like numbers or text, but also Neo4j native data like nodes, relationships, and paths.

The table report supports the following additional features:

  • automatic pagination of results.

  • Sorting/filtering by clicking on the table headers.

  • Downloading your data as a CSV file.

Double-clicking on a table cell will copy that cell’s value to the user’s clipboard.

Examples

Basic Table

MATCH (n:Movie)<-[:ACTED_IN]-(p:Person)
RETURN n.title, n.released, count(p) as actors
Basic Table

Table with nodes / collections

MATCH (n:Movie)<-[:ACTED_IN]-(p:Person)
RETURN n, collect(p.name) as actors LIMIT 200

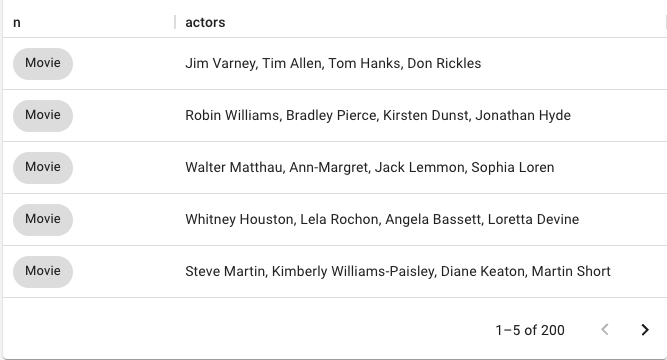

Table with nodes / collections

Advanced Settings

Name Type Default Value Description

Transpose Rows & Columns

on/off

off

when activated, transposes the rows and columns of the table. This means that each of the returned rows from Neo4j will be shown as a column instead of a row.

Relative Column Sizes

List of numbers

[1, 1, 1, …]

The relative width between each of the columns in the table. For example, if the first column should be twice the width of the 2nd and 3rd, this will be set to ``[2, 1, 1]''.

Enable CSV Download

on/off

off

when activated, displays a button on the bottom right of the table footer. This button lets the user download the complete set of table results (all pages) as a CSV file.

Auto-run query

on/off

on

when activated automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.

Report Description

markdown text

When specified, adds another button the report header that opens a pop-up. This pop-up contains the rendered markdown from this setting.

Rule-Based Styling

Using the Rule-Based Styling menu, the following style rules can be applied to the table:

  • The background color of an entire row in a table.

  • The text color of an entire row in a table.

  • The background color of a single cell in the table.

  • The text color of a single cell in the table.
