Sunburst

This documentation pertains to the unsupported version of NeoDash, as part of Neo4j Labs. For users of the supported NeoDash offering, refer to NeoDash commercial.

Advanced Visualization

A sunburst chart will render hierarchical data in a multi-level pie visualization. It takes two fields:

Path: a list of strings. This represents the hierarchy (from highest to lowest level).
Value: a number that matches the size of the element at the lowest level. Sizes of non-leaf levels are determined from the sum of their children.

Examples

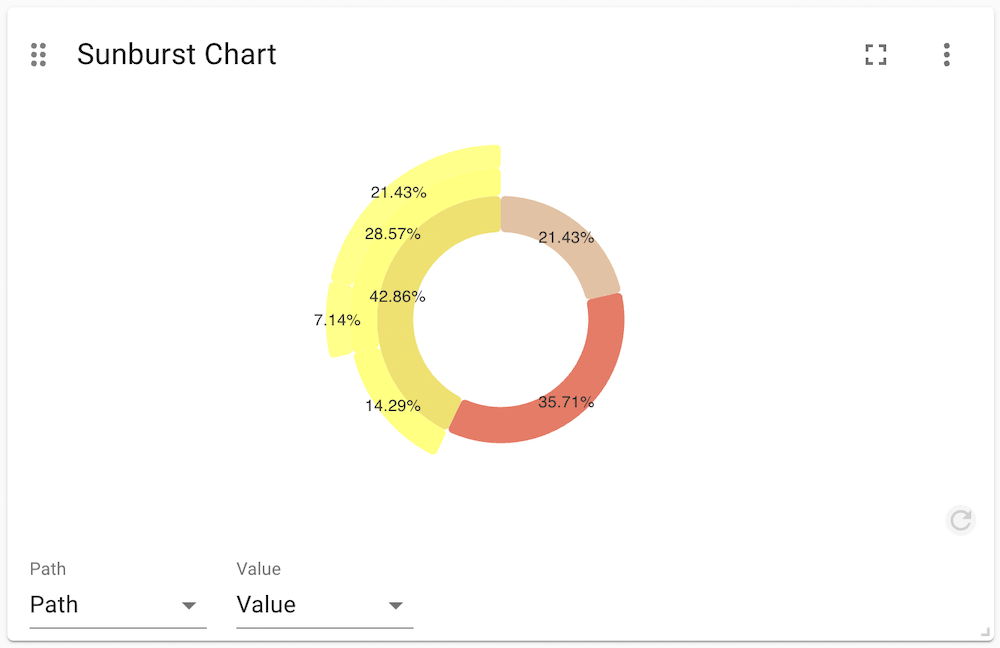

Basic Sunburst Chart

MATCH path=(:Company{name:'NeoDash'})-[:HAS_DEPARTMENT*]->(:Department)
WITH nodes(path) as no
WITH no, last(no) as leaf
WITH  [n IN no[..-1] | n.name] AS result, sum(leaf.employees) as val
RETURN result, val

Advanced Settings

Name	Type	Default Value	Description
Show Values on Arcs	on/off	off	If enabled, show the category values inside the sunburst arcs.
Enable interactivity	on/off	on	If enabled, turn on animations when a user hovers over an arc.
Color Scheme	List		The color scheme to use for the arcs. Colors are assigned automatically for each of the sub-hierarchies.
Arc border width (px)	number	0	The width of the border of each arc.
Margin Left (px)	number	24	The margin in pixels on the left side of the visualization.
Margin Right (px)	number	24	The margin in pixels on the right side of the visualization.
Margin Top (px)	number	24	The margin in pixels on the top side of the visualization.
Margin Bottom (px)	number	40	The margin in pixels on the bottom side of the visualization.
Minimum Arc Angle for Label (degrees)	number	10	The minimum angle of an arc needed to display a label (if labels are enabled).
Slice Corner Radius	number	3	The rounding angle of each of the arcs in the visualization.
Inherit color from parent	on/off	on	If enabled, starting from level 2, each level will inherit the same color of his parent. If disabled, color will be randomly assigned based on the color scheme.
Auto-run query	on/off	on	When activated, automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.
Report Description	markdown text		When specified, adds another button the report header that opens a pop-up. This pop-up contains the rendered markdown from this setting.

Name

Type

Default Value

Description

Show Values on Arcs

on/off

off

If enabled, show the category values inside the sunburst arcs.

Enable interactivity

on/off

If enabled, turn on animations when a user hovers over an arc.

Color Scheme

List

The color scheme to use for the arcs. Colors are assigned automatically for each of the sub-hierarchies.

Arc border width (px)

number

The width of the border of each arc.

Margin Left (px)

number

The margin in pixels on the left side of the visualization.

Margin Right (px)

number

The margin in pixels on the right side of the visualization.

Margin Top (px)

number

The margin in pixels on the top side of the visualization.

Margin Bottom (px)

number

The margin in pixels on the bottom side of the visualization.

Minimum Arc Angle for Label (degrees)

number

The minimum angle of an arc needed to display a label (if labels are enabled).

Slice Corner Radius

number

The rounding angle of each of the arcs in the visualization.

Inherit color from parent

on/off

If enabled, starting from level 2, each level will inherit the same color of his parent. If disabled, color will be randomly assigned based on the color scheme.

Auto-run query

on/off

When activated, automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.

Report Description

markdown text

When specified, adds another button the report header that opens a pop-up. This pop-up contains the rendered markdown from this setting.
