Pinecone

In Pinecone a collection is a static and non-queryable copy of an index, therefore, unlike other vector dbs, the Pinecone procedures work on indexes instead of collections.

However, the vectordb procedures to handle CRUD operations on collections are usually named apoc.ml.<vdbname>.createCollection and apoc.ml.<vdbname>.deleteCollection, so to be consistent, the Pinecone index procedures are named apoc.ml.pinecone.createCollection and apoc.ml.pinecone.deleteCollection.

Here is a list of all available Pinecone procedures:

name description

apoc.vectordb.pinecone.info(hostOrKey, index, $config)

Get information about the specified existing index or throws a 404 error if it does not exist

apoc.vectordb.pinecone.createCollection(hostOrKey, index, similarity, size, $config)

Creates an index, with the name specified in the 2nd parameter, and with the specified similarity and size. The default endpoint is <hostOrKey param>/indexes.

apoc.vectordb.pinecone.deleteCollection(hostOrKey, index, $config)

Deletes an index with the name specified in the 2nd parameter. The default endpoint is <hostOrKey param>/indexes/<index param>.

apoc.vectordb.pinecone.upsert(hostOrKey, index, vectors, $config)

Upserts, in the index with the name specified in the 2nd parameter, the vectors [{id: 'id', vector: '<vectorDb>', medatada: '<metadata>'}]. The default endpoint is <hostOrKey param>/vectors/upsert.

apoc.vectordb.pinecone.delete(hostOrKey, index, ids, $config)

Delete the vectors with the specified ids. The default endpoint is <hostOrKey param>/indexes/<index param>.

apoc.vectordb.pinecone.get(hostOrKey, index, ids, $config)

Get the vectors with the specified ids. The default endpoint is <hostOrKey param>/vectors/fetch.

apoc.vectordb.pinecone.getAndUpdate(hostOrKey, index, ids, $config)

Get the vectors with the specified ids, and optionally creates/updates neo4j entities. The default endpoint is <hostOrKey param>/vectors/fetch.

apoc.vectordb.pinecone.query(hostOrKey, index, vector, filter, limit, $config)

Retrieve closest vectors the the defined vector, limit of results, in the index with the name specified in the 2nd parameter. The default endpoint is <hostOrKey param>/query.

apoc.vectordb.pinecone.queryAndUpdate(hostOrKey, index, vector, filter, limit, $config)

Retrieve closest vectors the the defined vector, limit of results, in the index with the name specified in the 2nd parameter, and optionally creates/updates neo4j entities. The default endpoint is <hostOrKey param>/query.

where the 1st parameter can be a key defined by the apoc config apoc.pinecone.<key>.host=myHost.

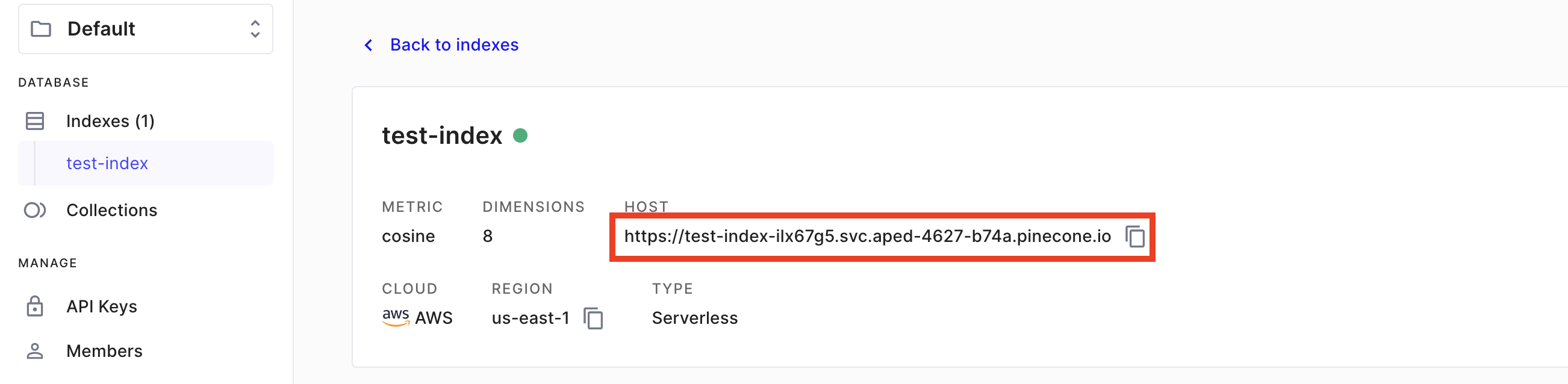

The default hostOrKey is "https://api.pinecone.io", therefore in general can be null with the createCollection and deleteCollection procedures, and equal to the host name, with the other ones, that is, the one indicated in the Pinecone dashboard:

pinecone index

Examples

The following example assume we want to create and manage an index called test-index.

Get index info (it leverages this API)
CALL apoc.vectordb.pinecone.info(hostOrKey, 'test-index', {<optional config>})
Table 1. Example results
value

{ "dimension": 3, "environment": "us-east1-gcp", "name": "tiny-index", "size": 3126700, "status": "Ready", "vector_count": 99 }
Create an index (it leverages this API)
CALL apoc.vectordb.pinecone.createCollection(null, 'test-index', 'cosine', 4, {<optional config>})
Delete an index (it leverages this API)
CALL apoc.vectordb.pinecone.deleteCollection(null, 'test-index', {<optional config>})
Upsert vectors (it leverages this API)
CALL apoc.vectordb.pinecone.upsert('https://test-index-ilx67g5.svc.aped-4627-b74a.pinecone.io',
  'test-index',
  [
    {id: '1', vector: [0.05, 0.61, 0.76, 0.74], metadata: {city: "Berlin", foo: "one"}},
    {id: '2', vector: [0.19, 0.81, 0.75, 0.11], metadata: {city: "London", foo: "two"}}
  ],
  {<optional config>})
Get vectors (it leverages this API)
CALL apoc.vectordb.pinecone.get($host, 'test-index', [1,2], {<optional config>})
Table 2. Example results
score metadata id vector text entity

null

{city: "Berlin", foo: "one"}

null

null

null

null

null

{city: "Berlin", foo: "two"}

null

null

null

null
Get vectors with {allResults: true}
CALL apoc.vectordb.pinecone.get($host, 'test-index', ['1','2'], {allResults: true, <optional config>})
Table 3. Example results
score metadata id vector text entity

null

{city: "Berlin", foo: "one"}

1

[…​]

null

null

null

{city: "Berlin", foo: "two"}

2

[…​]

null

null
Query vectors (it leverages this API)
CALL apoc.vectordb.pinecone.query($host,
    'test-index',
    [0.2, 0.1, 0.9, 0.7],
    { city: { `$eq`: "London" } },
    5,
    {allResults: true, <optional config>})
Table 4. Example results
score metadata id vector text entity

1,

{city: "Berlin", foo: "one"}

1

[…​]

null

null

0.1

{city: "Berlin", foo: "two"}

2

[…​]

null

null

We can define a mapping, to auto-create one/multiple nodes and relationships, by leveraging the vector metadata.

For example, if we have created 2 vectors with the above upsert procedures, we can populate some existing nodes (i.e. (:Test {myId: 'one'}) and (:Test {myId: 'two'})):

CALL apoc.vectordb.pinecone.queryAndUpdate($host, 'test-index',
    [0.2, 0.1, 0.9, 0.7],
    {},
    5,
    { mapping: {
            embeddingKey: "vect",
            nodeLabel: "Test",
            entityKey: "myId",
            metadataKey: "foo"
        }
    })

which populates the two nodes as: (:Test {myId: 'one', city: 'Berlin', vect: [vector1]}) and (:Test {myId: 'two', city: 'London', vect: [vector2]}), which will be returned in the entity column result.

We can also set the mapping configuration mode to CREATE_IF_MISSING (which creates nodes if not exist), READ_ONLY (to search for nodes/rels, without making updates) or UPDATE_EXISTING (default behavior):

CALL apoc.vectordb.pinecone.queryAndUpdate($host, 'test-index',
    [0.2, 0.1, 0.9, 0.7],
    {},
    5,
    { mapping: {
            mode: "CREATE_IF_MISSING",
            embeddingKey: "vect",
            nodeLabel: "Test",
            entityKey: "myId",
            metadataKey: "foo"
        }
    })

which creates and 2 new nodes as above.

Or, we can populate an existing relationship (i.e. (:Start)-[:TEST {myId: 'one'}]→(:End) and (:Start)-[:TEST {myId: 'two'}]→(:End)):

CALL apoc.vectordb.pinecone.queryAndUpdate($host, 'test-index',
    [0.2, 0.1, 0.9, 0.7],
    {},
    5,
    { mapping: {
            embeddingKey: "vect",
            relType: "TEST",
            entityKey: "myId",
            metadataKey: "foo"
        }
    })

which populates the two relationships as: ()-[:TEST {myId: 'one', city: 'Berlin', vect: [vector1]}]-() and ()-[:TEST {myId: 'two', city: 'London', vect: [vector2]}]-(), which will be returned in the entity column result.

We can also use mapping for apoc.vectordb.pinecone.query procedure, to search for nodes/rels fitting label/type and metadataKey, without making updates (i.e. equivalent to *.queryOrUpdate procedure with mapping config having mode: "READ_ONLY").

For example, with the previous relationships, we can execute the following procedure, which just return the relationships in the column rel:

CALL apoc.vectordb.pinecone.query($host, 'test-index',
    [0.2, 0.1, 0.9, 0.7],
    {},
    5,
    { mapping: {
            embeddingKey: "vect",
            relType: "TEST",
            entityKey: "myId",
            metadataKey: "foo"
        }
    })

We can use mapping with apoc.vectordb.pinecone.get* procedures as well

To optimize performances, we can choose what to YIELD with the apoc.vectordb.pinecone.query* and the apoc.vectordb.pinecone.get* procedures.

For example, by executing a CALL apoc.vectordb.pinecone.query(…​) YIELD metadata, score, id, the RestAPI request will have an {"with_payload": false, "with_vectors": false}, so that we do not return the other values that we do not need.

It is possible to execute vector db procedures together with the apoc.ml.rag as follow:

CALL apoc.vectordb.pinecone.getAndUpdate($host, $index, [<id1>, <id2>], $conf) YIELD node, metadata, id, vector
WITH collect(node) as paths
CALL apoc.ml.rag(paths, $attributes, $question, $confPrompt) YIELD value
RETURN value
Delete vectors (it leverages this API)
CALL apoc.vectordb.pinecone.delete($host, 'test-index', ['1','2'], {<optional config>})
