Base Layers

These are the different base layers being used for the following examples:

OsmLayer:

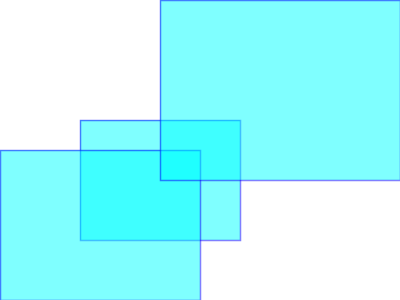

IntersectionLayer:

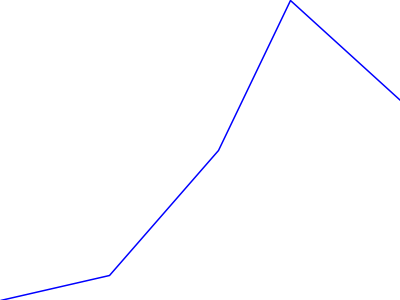

LinesLayer:

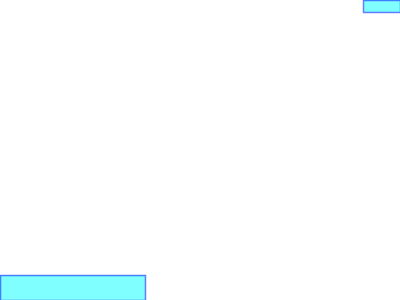

BoxesLayer:

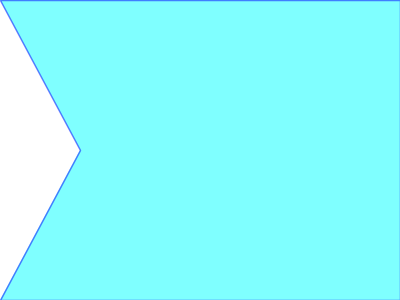

ConcaveLayer:

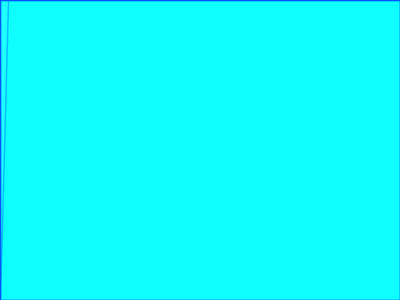

EqualLayer:

GeoPipes Examples

Below follows a non-exhaustive lists of interesting GeoPipes that can be chained together to contruct a geoprocessing system in while trying to keep the processing as lazy as possible using iterators through the different steps.

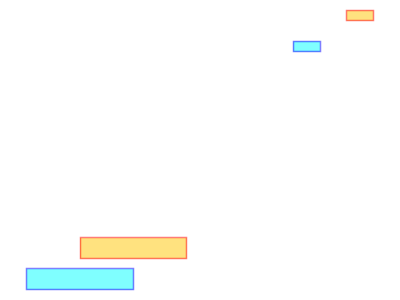

Affine Transformation

This pipe applies an affine transformation to every geometry.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer)
		.applyAffineTransform(AffineTransformation.translationInstance(2, 3));

Output:

Boundary

The boundary pipe calculates boundary of every geometry in the pipeline.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer).toBoundary();

Output:

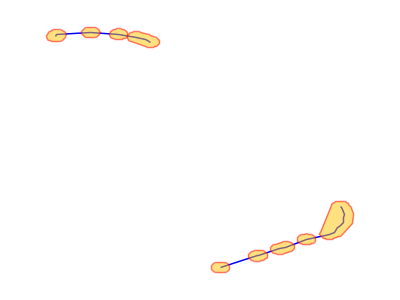

Break up all geometries into points and make density islands

This example demonstrates the some pipes chained together to make a full geoprocessing pipeline.

Example:

//step1
GeoPipeline pipeline = OSMGeoPipeline.startOsm(tx, osmLayer)
		//step2
		.extractOsmPoints()
		//step3
		.groupByDensityIslands(0.0005)
		//step4
		.toConvexHull()
		//step5
		.toBuffer(0.0004);

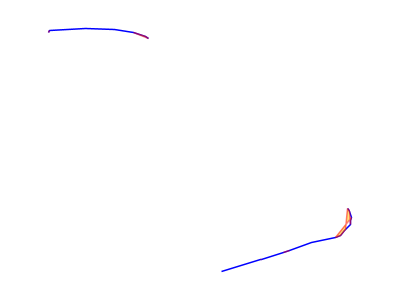

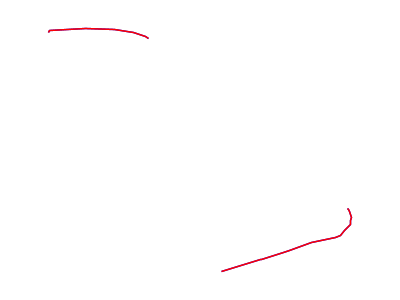

Step 1 - startOsm:

step1 break up all geometries into points and make density islands

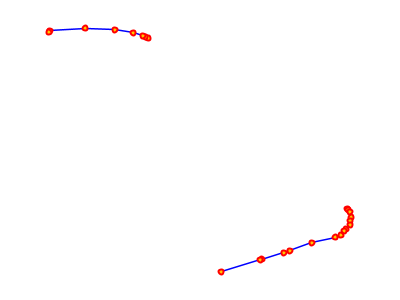

Step 2 - extractOsmPoints:

step2 break up all geometries into points and make density islands

Step 3 - groupByDensityIslands:

step3 break up all geometries into points and make density islands

Step 4 - toConvexHull:

step4 break up all geometries into points and make density islands

Step 5- toBuffer:

step5 break up all geometries into points and make density islands

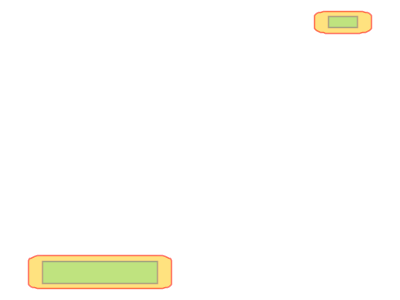

Buffer

This pipe applies a buffer to geometries.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer).toBuffer(0.5);

Output:

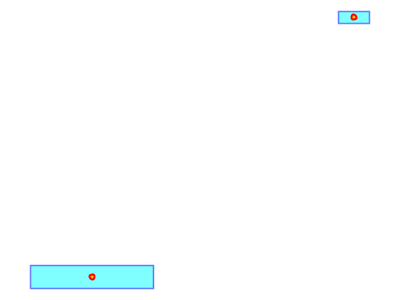

Centroid

This pipe calculates geometry centroid.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer).toCentroid();

Output:

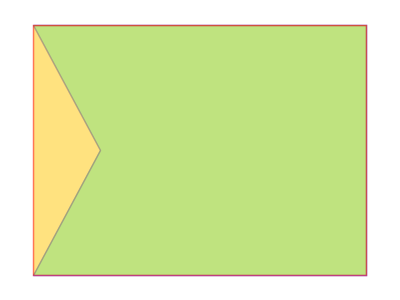

Convex Hull

This pipe calculates geometry convex hull.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, concaveLayer).toConvexHull();

Output:

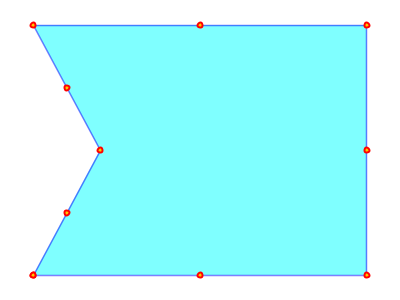

Densify

This pipe inserts extra vertices along the line segments in the geometry. The densified geometry contains no line segment which is longer than the given distance tolerance.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, concaveLayer).densify(5).extractPoints();

Output:

Difference

The Difference pipe computes a geometry representing the points making up item geometry that do not make up the given geometry.

Example:

WKTReader reader = new WKTReader(intersectionLayer.getGeometryFactory());
Geometry geometry = reader.read("POLYGON ((3 3, 3 5, 7 7, 7 3, 3 3))");
GeoPipeline pipeline = GeoPipeline.start(tx, intersectionLayer).difference(geometry);

Output:

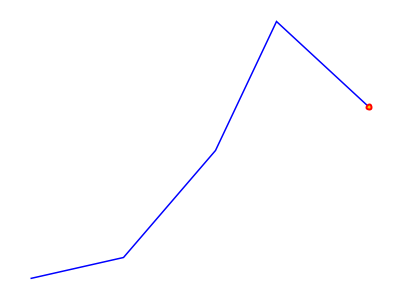

End Point

The EndPoint pipe finds the ending point of item geometry.

Example:

GeoPipeline pipeline = GeoPipeline
		.start(tx, linesLayer)
		.toEndPoint();

Output:

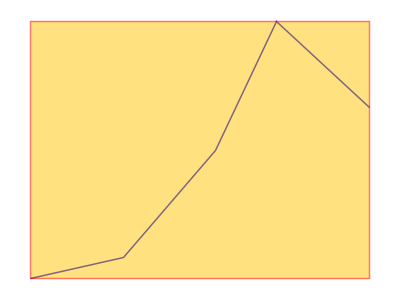

Envelope

The Envelope pipe computes the minimum bounding box of item geometry.

Example:

GeoPipeline pipeline = GeoPipeline
		.start(tx, linesLayer)
		.toEnvelope();

Output:

Export to GML

This pipe exports every geometry as a GML snippet.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer).createGML();
for (GeoPipeFlow flow : pipeline) {
	System.out.println(flow.getProperties().get("GML"));
}

Output:

<gml:Polygon>
  <gml:outerBoundaryIs>
    <gml:LinearRing>
      <gml:coordinates>
        2.0,3.0 2.0,5.0 6.0,5.0 6.0,3.0 2.0,3.0
      </gml:coordinates>
    </gml:LinearRing>
  </gml:outerBoundaryIs>
</gml:Polygon>
<gml:Polygon>
  <gml:outerBoundaryIs>
    <gml:LinearRing>
      <gml:coordinates>
        12.0,26.0 12.0,27.0 13.0,27.0 13.0,26.0 12.0,26.0
      </gml:coordinates>
    </gml:LinearRing>
  </gml:outerBoundaryIs>
</gml:Polygon>

Extract Points

This pipe extracts every point from a geometry.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer).extractPoints();

Output:

Filter by cql using bbox

This pipe is filtering according to a CQL Bounding Box description.

Example:

GeoPipeline cqlFilter = GeoPipeline.start(tx, osmLayer).cqlFilter(tx, "BBOX(the_geom, 10, 40, 20, 56.0583531)");

Filter by cql using complex cql

This pipe is filtering according to a complex CQL description.

Example:

long counter = GeoPipeline.start(tx, osmLayer)
		.cqlFilter(tx, "highway is not null and geometryType(the_geom) = 'LineString'").count();

Intersect All

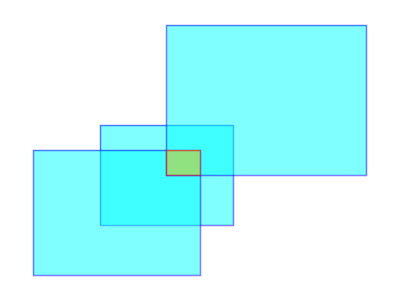

The Intersect All pipe intersects geometries of every item contained in the pipeline. This pipe groups every item in the pipeline in a single item containing the geometry output of the intersection.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, intersectionLayer).intersectAll();

Output:

Intersecting Windows

The FilterIntersectWindow pipe finds geometries that intersects a given rectangle.

Example:

GeoPipeline pipeline = GeoPipeline
		.start(tx, boxesLayer)
		.windowIntersectionFilter(new Envelope(0, 10, 0, 10));

Output:

Intersection

The Intersection pipe computes a geometry representing the intersection between item geometry and the given geometry.

Example:

WKTReader reader = new WKTReader(intersectionLayer.getGeometryFactory());
Geometry geometry = reader.read("POLYGON ((3 3, 3 5, 7 7, 7 3, 3 3))");
GeoPipeline pipeline = GeoPipeline.start(tx, intersectionLayer).intersect(geometry);

Output:

Max

The Max pipe computes the maximum value of the specified property and discard items with a value less than the maximum.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer)
		.calculateArea()
		.getMax("Area");

Output:

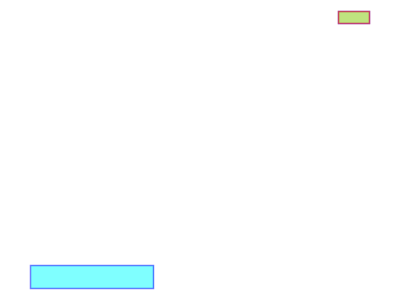

Min

The Min pipe computes the minimum value of the specified property and discard items with a value greater than the minimum.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, boxesLayer)
		.calculateArea()
		.getMin("Area");

Output:

Search within geometry

This pipe performs a search within a geometry in this example, both OSM street geometries should be found in when searching with an enclosing rectangle Envelope.

Example:

GeoPipeline pipeline = GeoPipeline
		.startWithinSearch(tx, osmLayer,
				osmLayer.getGeometryFactory().toGeometry(new Envelope(10, 20, 50, 60)));

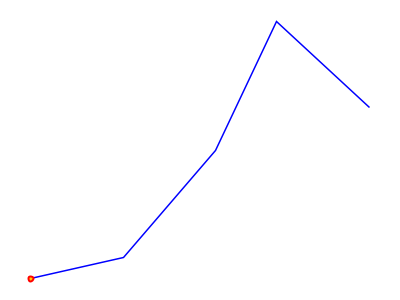

Start Point

The StartPoint pipe finds the starting point of item geometry.

Example:

GeoPipeline pipeline = GeoPipeline
		.start(tx, linesLayer)
		.toStartPoint();

Output:

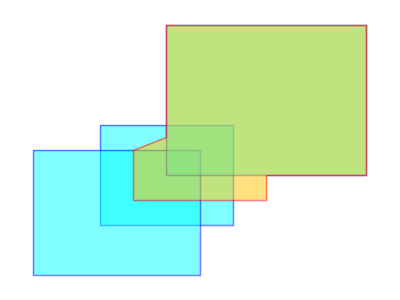

Union

The Union pipe unites item geometry with a given geometry.

Example:

WKTReader reader = new WKTReader(intersectionLayer.getGeometryFactory());
Geometry geometry = reader.read("POLYGON ((3 3, 3 5, 7 7, 7 3, 3 3))");
SearchFilter filter = new SearchIntersectWindow(intersectionLayer, new Envelope(7, 10, 7, 10));
GeoPipeline pipeline = GeoPipeline.start(tx, intersectionLayer, filter).union(geometry);

Output:

Unite All

The Union All pipe unites geometries of every item contained in the pipeline. This pipe groups every item in the pipeline in a single item containing the geometry output of the union.

Example:

GeoPipeline pipeline = GeoPipeline.start(tx, intersectionLayer).unionAll();

Output:
