Tutorial: Import Relational Data Into Neo4j

This guide will teach you the process for exporting data from a relational database (PostgreSQL) and importing into a graph database (Neo4j). You will learn how to take data from the relational system and to the graph by translating the schema and using import tools. This Tutorial uses a specific data set, but the principles in this Tutorial can be applied and reused with any data domain.

Prerequisites
You should have a basic understanding of the property graph model and know how to model data as a graph.

You can perform the steps in this Tutorial in the following environments:

Beginner

About the Data Domain

In this guide, we will be using the NorthWind dataset, an often-used SQL dataset. This data depicts a product sale system - storing and tracking customers, products, customer orders, warehouse stock, shipping, suppliers, and even employees and their sales territories. Although the NorthWind dataset is often used to demonstrate SQL and relational databases, the data also can be structured as a graph.

An entity-relationship diagram (ERD) of the Northwind dataset is shown below.

Northwind diagram

First, this is a rather large and detailed model. We can scale this down a bit for our example and choose the entities that are most critical for our graph - in other words, those that might benefit most from seeing the connections. For our use case, we really want to optimize the relationships with orders - what products were involved (with the categories and suppliers for those products), which employees worked on them and those employees' managers.

Using these business requirements, we can narrow our model down to these essential entities.

Northwind diagram focus

Developing a Graph Model

The first thing you will need to do to get data from a relational database into a graph is to translate the relational data model to a graph data model. Determining how you want to structure tables and rows as nodes and relationships may vary depending on what is most important to your business needs.

For more information on adapting your graph model to different scenarios, check out our modeling designs guide.

When deriving a graph model from a relational model, you should keep a couple of general guidelines in mind.

  1. A row is a node.

  2. A table name is a label name.

  3. A join or foreign key is a relationship.

With these principles in mind, we can map our relational model to a graph with the following steps:

Rows to Nodes, Table names to labels

  1. Each row on our Orders table becomes a node in our graph with Order as the label.

  2. Each row on our Products table becomes a node with Product as the label.

  3. Each row on our Suppliers table becomes a node with Supplier as the label.

  4. Each row on our Categories table becomes a node with Category as the label.

  5. Each row on our Employees table becomes a node with Employee as the label.

Joins to relationships

  1. Join between Suppliers and Products becomes a relationship named SUPPLIES (where supplier supplies product).

  2. Join between Products and Categories becomes a relationship named PART_OF (where product is part of a category).

  3. Join between Employees and Orders becomes a relationship named SOLD (where employee sold an order).

  4. Join between Employees and itself (unary relationship) becomes a relationship named REPORTS_TO (where employees have a manager).

  5. Join with join table (Order Details) between Orders and Products becomes a relationship named CONTAINS with properties of unitPrice, quantity, and discount (where order contains a product).

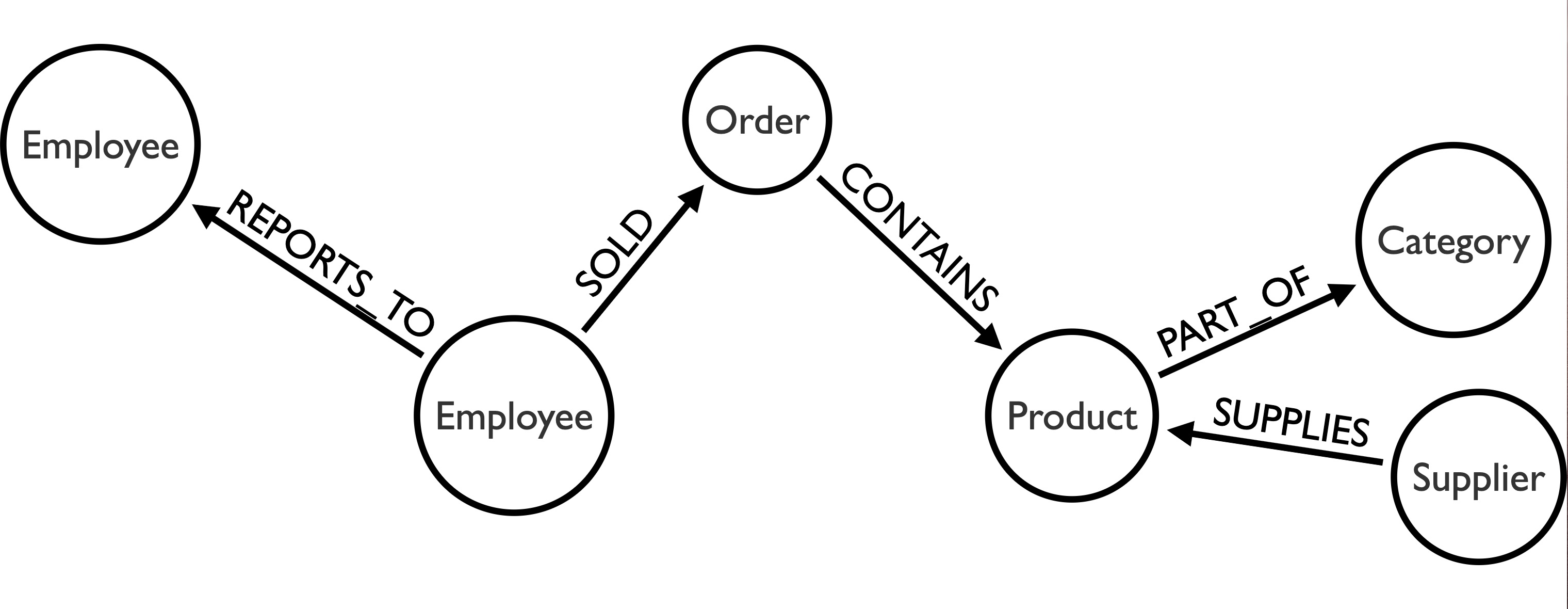

If we draw our translation out on the whiteboard, we have this graph data model.

northwind graph simple

Now, we can, of course, decide that we want to include the rest of the entities from our relational model, but for now, we will keep to this smaller graph model.

How does the Graph Model Differ from the Relational Model?

  • There are no nulls. Non-existing value entries (properties) are just not present.

  • It describes the relationships in more detail. For example, we know that an employee SOLD an order rather than having a foreign key relationship between the Orders and Employees tables. We could also choose to add more metadata about that relationship, should we wish.

  • Either model can be more normalized. For example, addresses have been denormalized in several of the tables, but could have been in a separate table. In a future version of our graph model, we might also choose to separate addresses from the Order (or Supplier or Employee) entities and create separate Address nodes.

Exporting Relational Tables to CSV

Thankfully, this step has already been done for you with the Northwind data you will use later on in this Guide.

However, if you are working with another data domain, you will need to take the data from the relational tables and put it in another format for loading to the graph. A common format that many systems can handle a flat file of comma-separated values (CSV).

Here is an example script we already ran to export the northwind data into CSV files for you.

export_csv.sql
COPY (SELECT * FROM customers) TO '/tmp/customers.csv' WITH CSV header;
COPY (SELECT * FROM suppliers) TO '/tmp/suppliers.csv' WITH CSV header;
COPY (SELECT * FROM products)  TO '/tmp/products.csv' WITH CSV header;
COPY (SELECT * FROM employees) TO '/tmp/employees.csv' WITH CSV header;
COPY (SELECT * FROM categories) TO '/tmp/categories.csv' WITH CSV header;

COPY (SELECT * FROM orders
      LEFT OUTER JOIN order_details ON order_details.OrderID = orders.OrderID) TO '/tmp/orders.csv' WITH CSV header;

If you want to create the CSV files yourself using your own northwind RDBMS, you can run this script against your RDBMS with the command psql -d northwind < export_csv.sql.

Note: You need not run this script unless you want to execute it against your own northwind RDBMS.

Importing the Data using Cypher

You will use Cypher’s LOAD CSV command to transform the contents of the CSV file into a graph structure.

When you use LOAD CSV to create nodes and relationships in the database, you have two options for where the CSV files reside:

  • In the import folder for the Neo4j instance that you can manage.

  • From a publicly-available location such as an S3 bucket or a github location. You must use this option if you are using Neo4j Aura or Neo4j Sandbox.

If you want to use the CSV files for your Neo4j instance that you manage, you can copy the CSV files from northwind zip from github and place them in the import folder for your Neo4j DBMS.

We have already placed these CSV files in Gihub for your access to them.

You use use Cypher’s LOAD CSV statement to read each file and add Cypher clauses after it to take the row/column data and transform it to the graph.

Next you will execute Cypher code to:

  1. Load the nodes from the CSV files.

  2. Create the indexes and constraint for the data in the graph.

  3. Create the relationships between the nodes.

Creating Order nodes

Execute this Cypher block to create the Order nodes in the database:

// Create orders
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/orders.csv' AS row
MERGE (order:Order {orderID: row.OrderID})
  ON CREATE SET order.shipName = row.ShipName;

If you have placed the CSV files in to the import folder, you should use this code syntax to load the CSV files from a local directory:

// Create orders
LOAD CSV WITH HEADERS FROM 'file:///orders.csv' AS row
MERGE (order:Order {orderID: row.OrderID})
  ON CREATE SET order.shipName = row.ShipName;

This code creates 830 Order nodes in the database.

You can view some of the nodes in the database by executing this code:

MATCH (o:Order) return o LIMIT 5;

The graph view is:

import guide Orders

The table view contains these values for the node properties:

o

{"shipName":Vins et alcools Chevalier,"orderID":10248}

{"shipName":Toms Spezialitäten,"orderID":10249}

{"shipName":Hanari Carnes,"orderID":10250}

{"shipName":Victuailles en stock,"orderID":10251}

{"shipName":Suprêmes délices,"orderID":10252}

You might notice that you have not imported all of the field columns in the CSV file. With your statements, you can choose which properties are needed on a node, which can be left out, and which might need imported to another node type or relationship. You might also notice that you used the MERGE keyword, instead of CREATE. Though we feel pretty confident there are no duplicates in our CSV files, we can use MERGE as good practice for ensuring unique entities in our database.

Creating Product nodes

Execute this code to create the Product nodes in the database:

// Create products
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/products.csv' AS row
MERGE (product:Product {productID: row.ProductID})
  ON CREATE SET product.productName = row.ProductName, product.unitPrice = toFloat(row.UnitPrice);

This code creates 77 Product nodes in the database.

You can view some of these nodes in the database by executing this code:

MATCH (p:Product) return p LIMIT 5;

The graph view is:

import guide Products

The table view contains these values for the node properties:

p

{"unitPrice":18.0,"productID":1,"productName":Chai}

{"unitPrice":19.0,"productID":2,"productName":Chang}

{"unitPrice":10.0,"productID":3,"productName":Aniseed Syrup}

{"unitPrice":22.0,"productID":4,"productName":Chef Anton’s Cajun Seasoning}

{"unitPrice":21.35,"productID":5,"productName":Chef Anton’s Gumbo Mix}

Creating Supplier nodes

Execute this code to create the Supplier nodes in the database:

// Create suppliers
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/suppliers.csv' AS row
MERGE (supplier:Supplier {supplierID: row.SupplierID})
  ON CREATE SET supplier.companyName = row.CompanyName;

This code creates 29 Supplier nodes in the database.

You can view some of these nodes in the database by executing this code:

MATCH (s:Supplier) return s LIMIT 5;

The graph view is:

import guide Suppliers

The table view contains these values for the node properties:

s

{"supplierID":1,"companyName":Exotic Liquids}

{"supplierID":2,"companyName":New Orleans Cajun Delights}

{"supplierID":3,"companyName":Grandma Kelly’s Homestead}

{"supplierID":4,"companyName":Tokyo Traders}

{"supplierID":5,"companyName":Cooperativa de Quesos 'Las Cabras'}

Creating Employee nodes

Execute this code to create the Supplier nodes in the database:

// Create employees
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/employees.csv' AS row
MERGE (e:Employee {employeeID:row.EmployeeID})
  ON CREATE SET e.firstName = row.FirstName, e.lastName = row.LastName, e.title = row.Title;

This code creates 9 Employee nodes in the database.

You can view some of these nodes in the database by executing this code:

MATCH (e:Employee) return e LIMIT 5;

The graph view is:

import guide Employees

The table view contains these values for the node properties:

e

{"lastName":Davolio,"firstName":Nancy,"employeeID":1,"title":Sales Representative}

{"lastName":Fuller,"firstName":Andrew,"employeeID":2,"title":Vice President, Sales}

{"lastName":Leverling,"firstName":Janet,"employeeID":3,"title":Sales Representative}

{"lastName":Peacock,"firstName":Margaret,"employeeID":4,"title":Sales Representative}

{"lastName":Buchanan,"firstName":Steven,"employeeID":5,"title":Sales Manager}

Creating Category nodes

// Create categories
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/categories.csv' AS row
MERGE (c:Category {categoryID: row.CategoryID})
  ON CREATE SET c.categoryName = row.CategoryName, c.description = row.Description;

This code creates 8 Category nodes in the database.

You can view some of these nodes in the database by executing this code:

MATCH (c:Category) return c LIMIT 5;

The graph view is:

import guide Categories

The table view contains these values for the node properties:

c

{"description":Soft drinks, coffees, teas, beers, and ales,"categoryName":Beverages,"categoryID":1}

{"description":Sweet and savory sauces, relishes, spreads, and seasonings,"categoryName":Condiments,"categoryID":2}

{"description":Desserts, candies, and sweet breads,"categoryName":Confections,"categoryID":3}

{"description":Cheeses,"categoryName":Dairy Products,"categoryID":4}

{"description":Breads, crackers, pasta, and cereal,"categoryName":Grains/Cereals,"categoryID":5}

For very large commercial or enterprise datasets, you may find out-of-memory errors, especially on smaller machines. To avoid these situations, you can prefix the statement with the :auto USING PERIODIC COMMIT query hint to commit data in batches. This practice is not standard recommendation for smaller datasets, but is only recommended when memory issues are threatened. More information on this query hint can be found in the manual.

Creating the indexes and constraints for the data in the graph

After the nodes are created, you need to create the relationships between them. Importing the relationships will mean looking up the nodes you just created and adding a relationship between those existing entities. To ensure the lookup of nodes is optimized, you will create indexes for any node properties used in the lookups (often the id or another unique value).

We also want to create a constraint (also creates an index with it) that will disallow orders with the same id from getting created, preventing duplicates. Finally, as the indexes are created after the nodes are inserted, their population happens asynchronously, so we call db.awaitIndexes() to block until they are populated.

Execute this code block:

CREATE INDEX product_id FOR (p:Product) ON (p.productID);
CREATE INDEX product_name FOR (p:Product) ON (p.productName);
CREATE INDEX supplier_id FOR (s:Supplier) ON (s.supplierID);
CREATE INDEX employee_id FOR (e:Employee) ON (e.employeeID);
CREATE INDEX category_id FOR (c:Category) ON (c.categoryID);
CREATE CONSTRAINT order_id ON (o:Order) ASSERT o.orderID IS UNIQUE;
CALL db.awaitIndexes();

After you execute this code, you can execute this code to view the indexes (and constraint) in the database:

CALL db.indexes();

You should see these indexes (and constraint) in the database:

id name state populationPercent uniqueness type entityType labelsOrTypes properties provider

5

category_id

ONLINE

100.0

NONUNIQUE

BTREE

NODE

[Category]

[categoryID]

native-btree-1.0

4

employee_id

ONLINE

100.0

NONUNIQUE

BTREE

NODE

[Employee]

[employeeID]

native-btree-1.0

6

order_id

ONLINE

100.0

UNIQUE

BTREE

NODE

[Order]

[orderID]

native-btree-1.0

1

product_id

ONLINE

100.0

NONUNIQUE

BTREE

NODE

[Product]

[productID]

native-btree-1.0

2

product_name

ONLINE

100.0

NONUNIQUE

BTREE

NODE

[Product]

[productName]

native-btree-1.0

3

supplier_id

ONLINE

100.0

NONUNIQUE

BTREE

NODE

[Supplier]

[supplierID]

native-btree-1.0

Creating the relationships between the nodes

Next you will create relationships:

  1. Between orders and employees.

  2. Between products and suppliers and between products and categories.

  3. Between employees.

Creating relationships between orders and employees

With the initial nodes and indexes in place, you can now create the relationships for orders to products and orders to employees.

Execute this code block:

// Create relationships between orders and products
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/orders.csv' AS row
MATCH (order:Order {orderID: row.OrderID})
MATCH (product:Product {productID: row.ProductID})
MERGE (order)-[op:CONTAINS]->(product)
  ON CREATE SET op.unitPrice = toFloat(row.UnitPrice), op.quantity = toFloat(row.Quantity);

This code creates 2155 relationships in the graph.

You can view some of them by executing this code:

MATCH (o:Order)-[]-(p:Product)
RETURN o,p LIMIT 10;

Your graph view should look something like this:

import guide CONTAINS

Then, execute this code block:

// Create relationships between orders and employees
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/orders.csv' AS row
MATCH (order:Order {orderID: row.OrderID})
MATCH (employee:Employee {employeeID: row.EmployeeID})
MERGE (employee)-[:SOLD]->(order);

This code creates 830 relationships in the graph.

You can view some of them by executing this code:

MATCH (o:Order)-[]-(e:Employee)
RETURN o,e LIMIT 10;

Your graph view should look something like this:

import guide SOLD

Creating relationships between products and suppliers and between products and categories

Next, create relationships between products, suppliers, and categories:

Execute this code block:

// Create relationships between products and suppliers
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/products.csv
' AS row
MATCH (product:Product {productID: row.ProductID})
MATCH (supplier:Supplier {supplierID: row.SupplierID})
MERGE (supplier)-[:SUPPLIES]->(product);

This code creates 77 relationships in the graph.

You can view some of them by executing this code:

MATCH (s:Supplier)-[]-(p:Product)
RETURN s,p LIMIT 10;

Your graph view should look something like this:

import guide SUPPLIES

Then, execute this code block:

// Create relationships between products and categories
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/products.csv
' AS row
MATCH (product:Product {productID: row.ProductID})
MATCH (category:Category {categoryID: row.CategoryID})
MERGE (product)-[:PART_OF]->(category);

This code creates 77 relationships in the graph.

You can view some of them by executing this code:

MATCH (c:Category)-[]-(p:Product)
RETURN c,p LIMIT 10;

Your graph view should look something like this:

import guide PART OF

Creating relationships between employees

Lastly, you will create the 'REPORTS_TO' relationship between employees to represent the reporting structure:

Execute this code block:

// Create relationships between employees (reporting hierarchy)
LOAD CSV WITH HEADERS FROM 'https://gist.githubusercontent.com/jexp/054bc6baf36604061bf407aa8cd08608/raw/8bdd36dfc88381995e6823ff3f419b5a0cb8ac4f/employees.csv' AS row
MATCH (employee:Employee {employeeID: row.EmployeeID})
MATCH (manager:Employee {employeeID: row.ReportsTo})
MERGE (employee)-[:REPORTS_TO]->(manager);

This code creates 8 relationships in the graph.

You can view some of them by executing this code:

MATCH (e1:Employee)-[]-(e2:Employee)
RETURN e1,e2 LIMIT 10;

Your graph view should look something like this:

import guide REPORTS TO

Next, you will query the resulting graph to find out what it can tell us about our newly-imported data.

Querying the Graph

We might start with a couple of general queries to verify that our data matches the model we designed earlier in the guide. Here are some example queries.

Execute this code block:

//find a sample of employees who sold orders with their ordered products
MATCH (e:Employee)-[rel:SOLD]->(o:Order)-[rel2:CONTAINS]->(p:Product)
RETURN e, rel, o, rel2, p LIMIT 25;

Execute this code block:

//find the supplier and category for a specific product
MATCH (s:Supplier)-[r1:SUPPLIES]->(p:Product {productName: 'Chocolade'})-[r2:PART_OF]->(c:Category)
RETURN s, r1, p, r2, c;

Once you are comfortable that the data aligns with our data model and everything looks correct, you can start querying to gather information and insight for business decisions.

Which Employee had the Highest Cross-Selling Count of 'Chocolade' and Another Product?

Execute this code block:

MATCH (choc:Product {productName:'Chocolade'})<-[:CONTAINS]-(:Order)<-[:SOLD]-(employee),
      (employee)-[:SOLD]->(o2)-[:CONTAINS]->(other:Product)
RETURN employee.employeeID as employee, other.productName as otherProduct, count(distinct o2) as count
ORDER BY count DESC
LIMIT 5;

Looks like employee No. 4 was busy, though employee No. 1 also did well! Your results should look something like this:

employee otherProduct count

4

Gnocchi di nonna Alice

14

4

Pâté chinois

12

1

Flotemysost

12

3

Gumbär Gummibärchen

12

1

Pavlova

11

How are Employees Organized? Who Reports to Whom?

Execute this code block:

MATCH (e:Employee)<-[:REPORTS_TO]-(sub)
RETURN e.employeeID AS manager, sub.employeeID AS employee;

Your results should look something like this:

manager employee

2

3

2

4

2

5

2

1

2

8

5

9

5

7

5

6

Notice that employee No. 5 has people reporting to them but also reports to employee No. 2.

Next, let’s investigate that a bit more.

Which Employees Report to Each Other Indirectly?

Execute this code block:

MATCH path = (e:Employee)<-[:REPORTS_TO*]-(sub)
WITH e, sub, [person in NODES(path) | person.employeeID][1..-1] AS path
RETURN e.employeeID AS manager, path as middleManager, sub.employeeID AS employee
ORDER BY size(path);

Your results should look something like this:

manager middleManager employee

2

[]

3

2

[]

4

2

[]

5

2

[]

1

2

[]

8

5

[]

9

5

[]

7

5

[]

6

2

[5]

9

2

[5]

7

2

[5]

6

How Many Orders were Made by Each Part of the Hierarchy?

Execute this code block:

MATCH (e:Employee)
OPTIONAL MATCH (e)<-[:REPORTS_TO*0..]-(sub)-[:SOLD]->(order)
RETURN e.employeeID as employee, [x IN COLLECT(DISTINCT sub.employeeID) WHERE x <> e.employeeID] AS reportsTo, COUNT(distinct order) AS totalOrders
ORDER BY totalOrders DESC;

Your results should look something like this:

employee reportsTo totalOrders

2

[8,1,5,6,7,9,4,3]

830

5

[6,7,9]

224

4

[]

156

3

[]

127

1

[]

123

8

[]

104

7

[]

72

6

[]

67

9

[]

43

What’s Next?

If you followed along with each step through this guide, then you might want to explore the data set with more queries and try to answer additional questions you came up with for the data. You may also want to apply these same principles to your own or another data set for analysis.

If you used this as a process flow to apply to a different data set or you would like to do that next, feel free to start at the top and work through this guide again with another domain. The steps and processes still apply (though, of course, the data model, queries, and business questions will need adjusted).

If you have data that needs additional cleansing and manipulation than what is covered in this guide, the APOC library may be able to help. It contains hundreds of procedures and functions for handling large amounts of data, translating values, cleaning messy data sources, and more!

If you are interested in doing a one-time initial dump of relational data to Neo4j, then the Neo4j ETL Tool might be what you are looking for. The application is designed with a point-and-click user interface with the goal of fast, simple relational-to-graph loads that help new and existing users gain faster value from seeing their data as a graph without Cypher, import procedures, or other code.

Resources
