Third-party payment to high-risk jurisdiction

1. Introduction

Transaction monitoring is a fundamental pillar in retail banking, ensuring the integrity and safety of financial transactions. It plays a pivotal role in detecting and preventing financial fraud, money laundering, and other illicit activities, safeguarding the bank and its customers from potential threats and losses.

The "Third-party payment to high-risk jurisdiction" rule monitors transactions directed towards regions or countries categorised as high-risk for financial misconduct. By identifying such transactions, banks can scrutinise them more closely, ensuring they comply with regulatory compliances and aren’t a conduit for nefarious activities.

2. Rule Breakdown

  • Time Range:

    • Evaluate all data over a rolling 30-days (this can be any time period)

  • Catches:

    • Money Mules

  • Logic:

    1. Aggregate total value of inflow payments by unique source accounts

    2. Match transactions to high-risk jurisdiction

      • Where the value of an individual transaction is between 90% - 110% of the original inflow amount.

3. Modelling

This section will show examples of cypher queries on an example graph. The intention is to illustrate what the queries look like and provide a guide on how to structure your data in a real setting. We will do this on a small graph of several nodes. The example graph will be based on the data model below:

3.1. Data Model

fs transaction monitoring high risk jurisdictions model

3.1.1 Required Fields

Below are the fields required to get started:

Account Node:

  • accountNumber: Contains the account identifier. This could be changed for any other identifier you use for an Account.

Transaction Node:

  • transactionId: Unique system identifier for the transaction.

  • amount: Contains the amount of money transferred between accounts.

  • date: Contains the date the transaction occurred.

PERFORMS Relationships:

  • No properties required

BENEFITS_TO Relationships:

  • No properties required

3.2. Demo Data

The following Cypher statement will create the example graph in the Neo4j database:

// Create all accounts
CREATE (a1:Account:Internal {accountNumber: "ACC001"})
CREATE (a2:Account:Internal {accountNumber: "ACC002"})
CREATE (a3:Account:Internal {accountNumber: "ACC003"})
CREATE (a4:Account:Internal {accountNumber: "ACC004"})
CREATE (a5:Account:Internal {accountNumber: "ACC005"})
CREATE (a6:Account:Internal {accountNumber: "ACC006"})
CREATE (a7:Account:External:HighRiskJurisdiction {accountNumber: "ACC007"})

// Create valid transactions
CREATE (a2)-[:PERFORMS]->(:Transaction {transactionId: "TXN001", amount: 1100, date: datetime()-duration({days: 29})})-[:BENEFITS_TO]->(a4)
CREATE (a4)-[:PERFORMS]->(:Transaction {transactionId: "TXN002", amount: 100, date: datetime()-duration({days: 27})})-[:BENEFITS_TO]->(a6)
CREATE (a4)-[:PERFORMS]->(:Transaction {transactionId: "TXN003", amount: 200, date: datetime()-duration({days: 26})})-[:BENEFITS_TO]->(a6)
CREATE (a4)-[:PERFORMS]->(:Transaction {transactionId: "TXN004", amount: 600, date: datetime()-duration({days: 25})})-[:BENEFITS_TO]->(a6)
CREATE (a6)-[:PERFORMS]->(:Transaction {transactionId: "TXN005", amount: 500, date: datetime()-duration({days: 3})})-[:BENEFITS_TO]->(a7)
CREATE (a6)-[:PERFORMS]->(:Transaction {transactionId: "TXN006", amount: 500, date: datetime()-duration({days: 2})})-[:BENEFITS_TO]->(a7)

// Create invalid transactions (outside time window or not matching criteria)
CREATE (a1)-[:PERFORMS]->(:Transaction {transactionId: "TXN007", amount: 500, date: datetime()-duration({days: 60})})-[:BENEFITS_TO]->(a2)
CREATE (a1)-[:PERFORMS]->(:Transaction {transactionId: "TXN008", amount: 500, date: datetime()-duration({days: 60})})-[:BENEFITS_TO]->(a2)
CREATE (a3)-[:PERFORMS]->(:Transaction {transactionId: "TXN009", amount: 750, date: datetime()-duration({days: 28})})-[:BENEFITS_TO]->(a4)
CREATE (a5)-[:PERFORMS]->(:Transaction {transactionId: "TXN010", amount: 100, date: datetime()-duration({days: 24})})-[:BENEFITS_TO]->(a6)
CREATE (a5)-[:PERFORMS]->(:Transaction {transactionId: "TXN011", amount: 50, date: datetime()-duration({days: 24})})-[:BENEFITS_TO]->(a6)

3.3. Neo4j Schema

// Show neo4j scheme
CALL db.schema.visualization()

It will provide the following response:

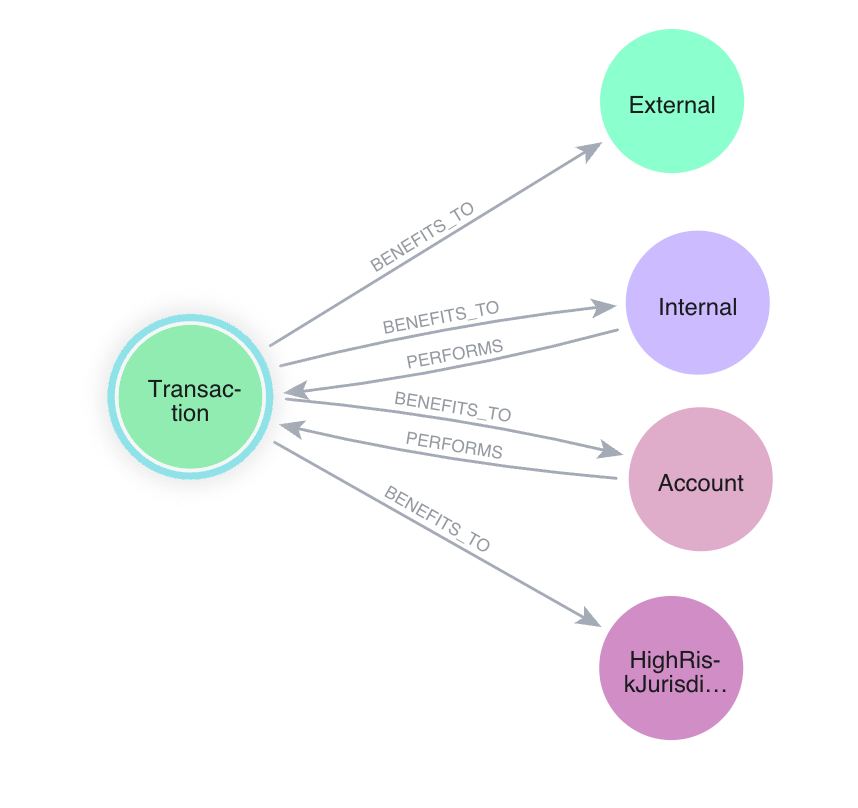

fs transaction monitoring high risk jurisdictions schema

4. Cypher Queries

4.1. Enhanced Graph Version

This is an enhanced version of the standard transaction monitoring rule, which is not achievable at scale and simplicity with the current system. Why?

  1. The recursive traversed back through the relationships indefinitely can not be implemented in any of the current systems

  2. The incredible performance by Neo4j was achieved by the fact we evaluated the following conditions at traversal time:

    1. The value of the aggregated transactions is outside the bounds of 90% - 110% of the original transaction amount.

    2. Where the dates of the transactions are outside the specified period. In this case, 30 days.

MATCH (l:Account)-[:PERFORMS]->(last_t:Transaction)-[:BENEFITS_TO]->(hrj:HighRiskJurisdiction)
WHERE last_t.date >= datetime()-duration({days: 30})
WITH l, hrj, SUM(last_t.amount) AS total_hrj_transactions
MATCH path=(first)((a1)-[:PERFORMS]->(t:Transaction)-[:BENEFITS_TO]->(a2)
   WHERE COLLECT {
       WITH a1, a2
       MATCH (a1)-[:PERFORMS]->(some_t:Transaction)-[:BENEFITS_TO]->(a2)
       WHERE some_t.date >= datetime()-duration({days: 30})
       WITH SUM(some_t.amount) AS s
       RETURN 0.9 * total_hrj_transactions <= s <= 1.1 * total_hrj_transactions
   } = [TRUE]
)*(l)-[:PERFORMS]->(tx:Transaction)-[:BENEFITS_TO]->(hrj)
   WHERE NOT EXISTS {
       WITH first
       MATCH (before)-[:PERFORMS]->(tx:Transaction)-[:BENEFITS_TO]->(first)
       WHERE tx.date >= datetime()-duration({days: 30})
       WITH SUM(tx.amount) AS sx, before
       WHERE 0.9 * total_hrj_transactions <= sx <= 1.1 * total_hrj_transactions
       RETURN before
   } AND
   tx.date >= datetime()-duration({days: 30})
RETURN path
