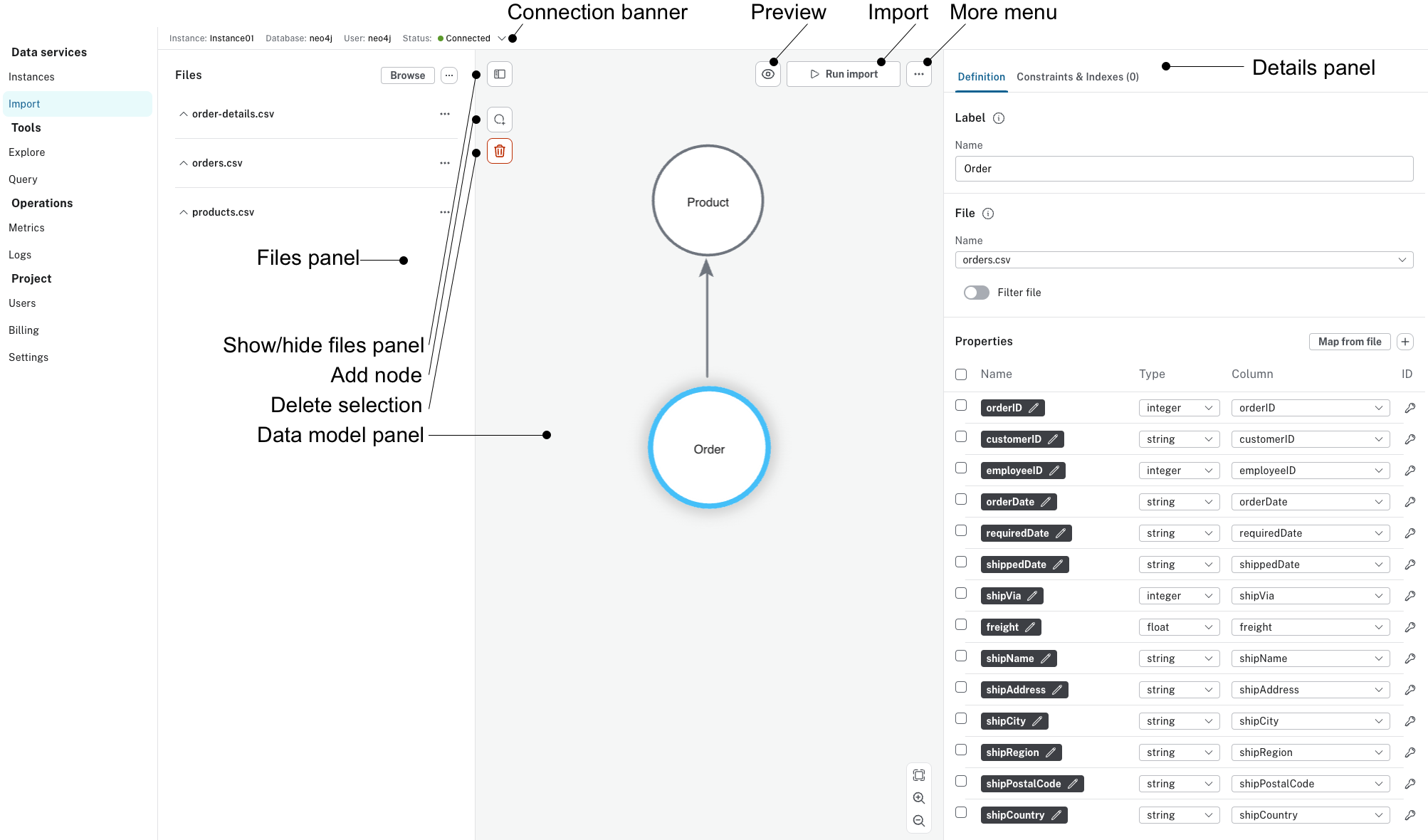

Visual tour

upx import

Files panel

The source files for the import are placed here, either you drag and drop or browse for them. Each file can be expanded using the dropdown option, to display the header and the first row of the file. The …​ menu allows you to delete the file. See File provision for more information about files.

Data model panel

The center of the UI is the canvas used to create the data model on. When you have a model, this panel is where you can see if there are errors in mapping. See Data modeling for more information about the data model.

Add node

This button adds a node to the data model, not to the database. See Data modeling about how to create the data model.

Delete selection

Select one or more elements on the canvaas and then use this button to delete them.

More menu

The …​ menu contains options to open a saved model, with or without data, to save your current model, with or without data, settings for the import, and an option to clear everything. For more information on the settings, see Node exclude list.

Details panel

The details panel contains two tabs, Definition and Constraints & Indexes. The Defintion tab is where you give labels to nodes and relationships, map them to files from the files panel, and specify their properties. See Mapping for more information. The Constraints & Indexes tab allows you to see details about constraints and indexes and lets you add or modify the latter. See Indexes and constraints for more information.
