Invert relationships

The APOC library contains a procedure that can be used to invert the direction of relationships.

Procedure for inverting the direction of relationships

Qualified Name Type

apoc.refactor.invert(rel RELATIONSHIP) - inverts the direction of the given RELATIONSHIP.

Procedure

Example

The below example will further explain this procedure.

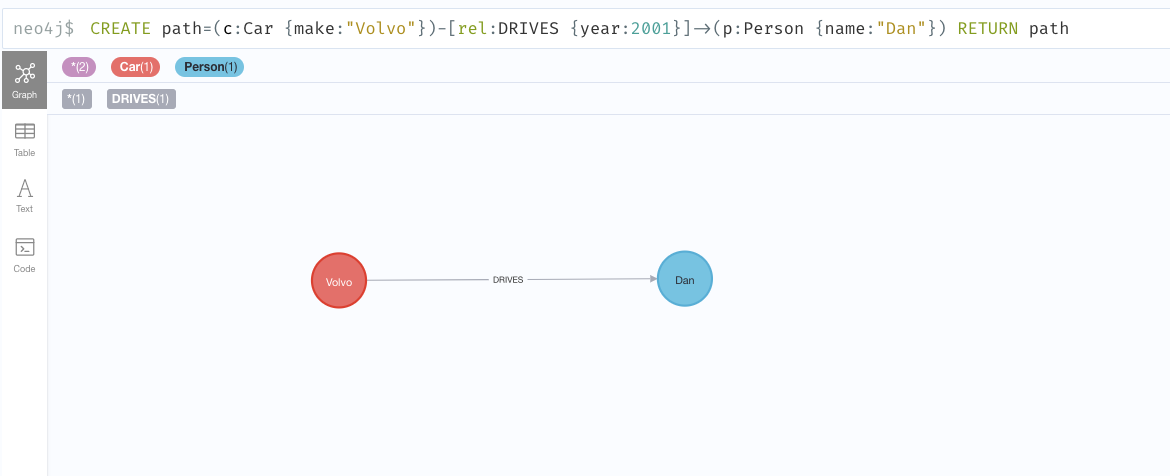

The following creates a graph containing two nodes connected by a relationship:
CREATE path=(c:Car {make:"Volvo"})-[rel:DRIVES {year:2001}]->(p:Person {name:"Dan"}) RETURN path
apoc.refactor.invert.dataset
The following inverts the direction of the relationship:
MATCH (c:Car)-[rel:DRIVES]->(p:Person)
CALL apoc.refactor.invert(rel)
yield input, output
RETURN input, output
Table 1. Results
input output

2

{"identity":3,"start":9,"end":8,"type":"DRIVES","properties":{"year":2001}}

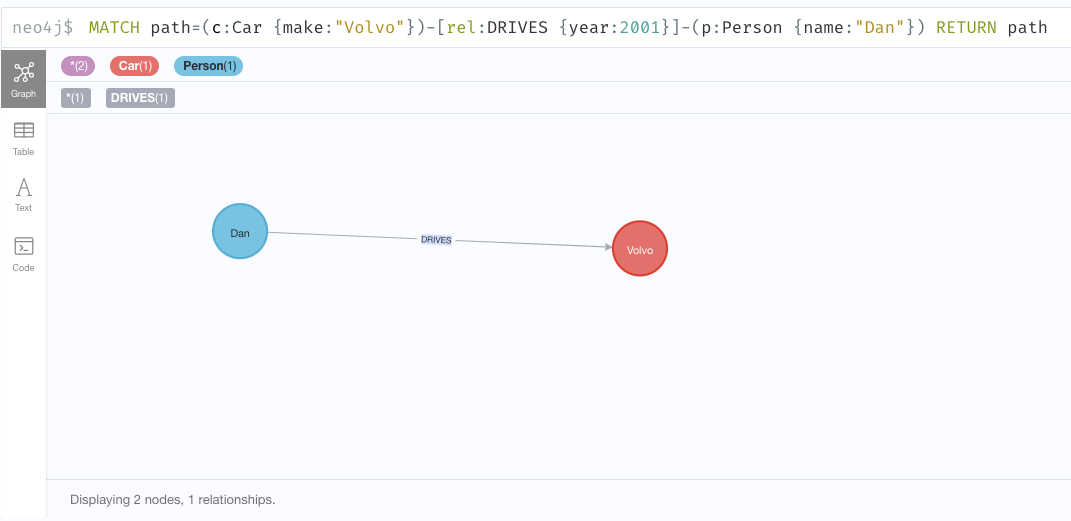

The relationship has now been inverted
 ----
MATCH path=(c:Car {make:"Volvo"})-[rel:DRIVES {year:2001}]-(p:Person {name:"Dan"}) RETURN path
----
apoc.refactor.invert
