Pie Chart

A pie chart will draw categories and values in a circular disc layout. The pie chart will require you to choose the following selections:

  • Category: a text field. These will be the labels on the pie slices.

  • Value: a numeric field. This will be the size of the slices.

The pie chart can be additionally be customized to become a donut chart, show categories as a legend, and to show the percentage of the total value of the pie. See Advanced Settings for more information.

Examples

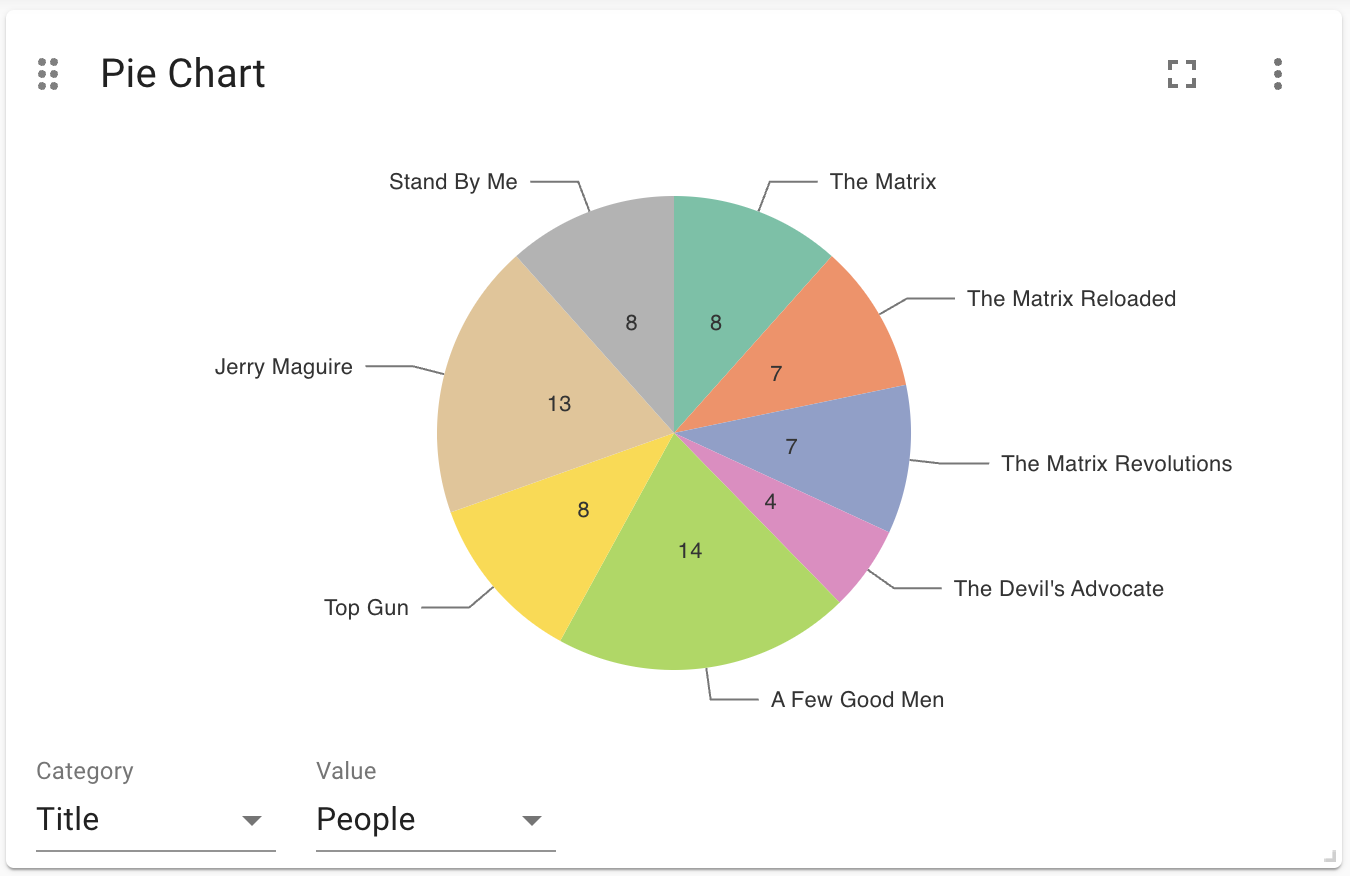

Basic Pie Chart

Match (n:Person)-[e]->(m:Movie)
RETURN m.title as Title, COUNT(p) as People
LIMIT 8
Pie Chart

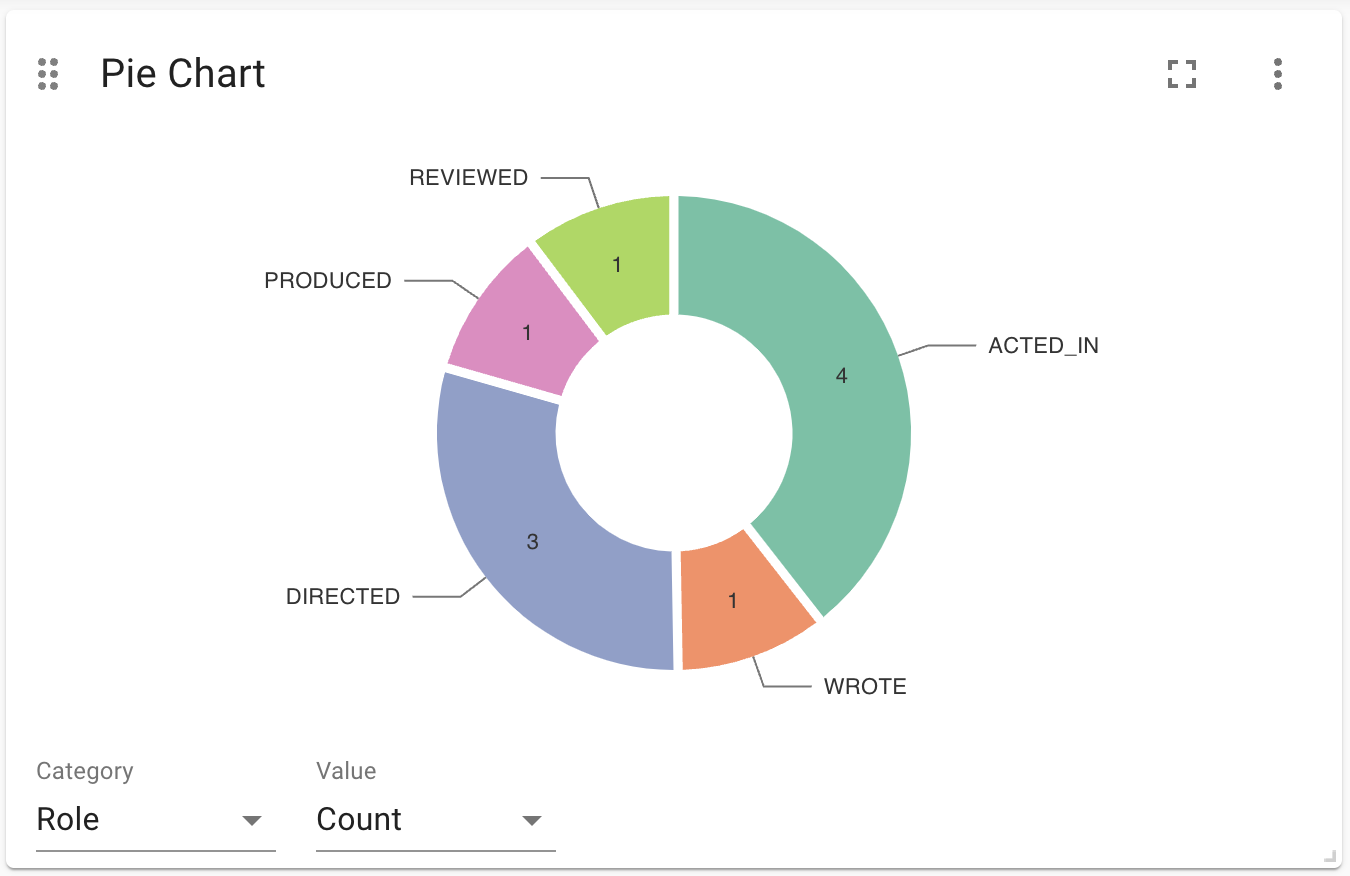

Donut Chart

MATCH (p:Person)-[e]->(m:Movie)
WHERE m.title = "Cloud Atlas"
WITH TYPE(e) as Role
RETURN Role, COUNT(Role) as Count
Donut Chart

Advanced Settings

Name Type Default Value Description

Show Legend

on/off

off

If enabled, shows a legend on the bottom of the visualization.

Auto-sort slices by value

on/off

off

If enabled, automatically sorts the pie slices in order of size.

Show Values in Slices

on/off

off

If enabled, show the category values inside the pie slices.

Show categories next to Slices

on/off

off

If enabled, show the category values next to the pie slices.

Enable interactivity

on/off

on

If enabled, turn on animations when a user hovers over a pie slice.

Color Scheme

List

The color scheme to use for the slices. Colors are assigned automatically (consequitevely) to the different categories returned by the Cypher query.

Pie inner radius

Number

0

The radius of the ``donut hole'' inside the pie. When set to zero, no hole is present, when set to 0.99, the pie will be almost completely visualized as a thin disc.

Slice padding angle (degrees)

number

0

the angle between each pie slice reserved for white space. For example, when set to 3.6, there will be 1/100th of the total circle space reserved between each slice.

Slice border with (px)

number

0

The width of the border of each slice.

Margin Left (px)

number

50

The margin in pixels on the left side of the visualization.

Margin Right (px)

number

24

The margin in pixels on the right side of the visualization.

Margin Top (px)

number

24

The margin in pixels on the top side of the visualization.

Margin Bottom (px)

number

40

The margin in pixels on the bottom side of the visualization.

Hide Selections

on/off

off

If enabled, hides the property selector (footer of the visualization).

Auto-run query

on/off

on

when activated automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.

Rule-Based Styling

Using the Rule-Based Styling menu, the following style rules can be applied to the pie chart:

  • The background color of a pie slice.
