Sunburst

A sunburst chart will render hierarchical data in a multi-level pie visualization. It takes two fields:

  • Path: a list of strings. This represents the hierarchy (from highest to lowest level).

  • Value: a number that matches the size of the element at the lowest level. Sizes of non-leaf levels are determined from the sum of their children.

Examples

Basic Sunburst Chart

MATCH path=(:Company{name:'NeoDash'})-[:HAS_DEPARTMENT*]->(:Department)
WITH nodes(path) as no
WITH no, last(no) as leaf
WITH  [n IN no[..-1] | n.name] AS result, sum(leaf.employees) as val
RETURN result, val

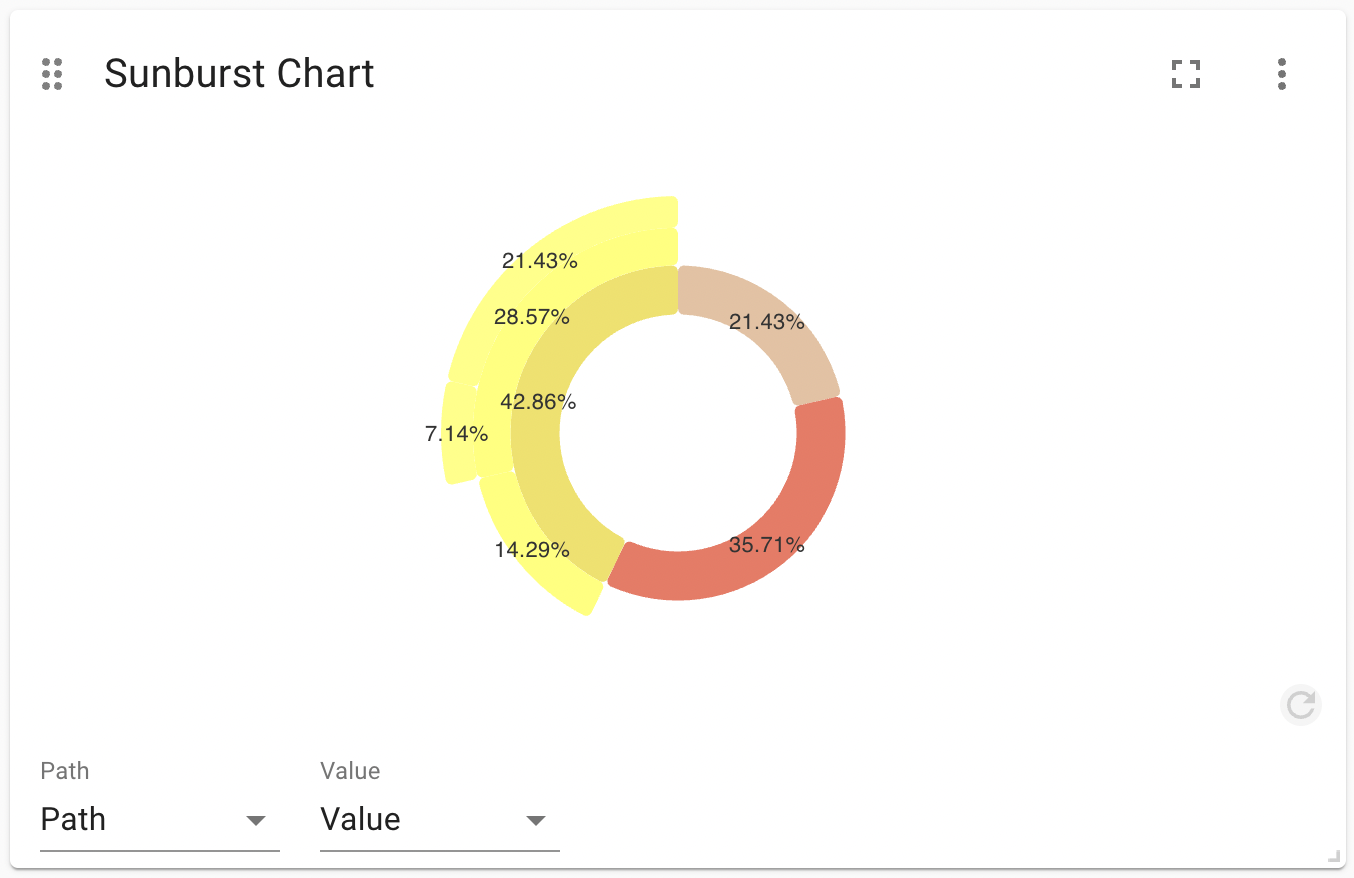

Sunburst Chart

Advanced Settings

Name Type Default Value Description

Show Values on Arcs

on/off

off

If enabled, show the category values inside the sunburst arcs.

Enable interactivity

on/off

on

If enabled, turn on animations when a user hovers over an arc.

Color Scheme

List

The color scheme to use for the arcs. Colors are assigned automatically for each of the sub-hierarchies.

Arc border width (px)

number

0

The width of the border of each arc.

Margin Left (px)

number

24

The margin in pixels on the left side of the visualization.

Margin Right (px)

number

24

The margin in pixels on the right side of the visualization.

Margin Top (px)

number

24

The margin in pixels on the top side of the visualization.

Margin Bottom (px)

number

40

The margin in pixels on the bottom side of the visualization.

Minimum Arc Angle for Label (degrees)

number

10

The minimum angle of an arc needed to display a label (if labels are enabled).

Slice Corner Radius

number

3

The rounding angle of each of the arcs in the visualization.

Auto-run query

on/off

on

When activated, automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.
