apoc.create.vPatternFull

Procedure APOC Core Deprecated

apoc.create.vPatternFull(['LabelA'],{key:value},'KNOWS',{key:value,…​},['LabelB'],{key:value}) returns a virtual pattern

Signature

apoc.create.vPatternFull(labelsN :: LIST? OF STRING?, n :: MAP?, relType :: STRING?, props :: MAP?, labelsM :: LIST? OF STRING?, m :: MAP?) :: (from :: NODE?, rel :: RELATIONSHIP?, to :: NODE?)

Input parameters

Name Type Default

labelsN

LIST? OF STRING?

null

n

MAP?

null

relType

STRING?

null

props

MAP?

null

labelsM

LIST? OF STRING?

null

m

MAP?

null

Output parameters

Name Type

from

NODE?

rel

RELATIONSHIP?

to

NODE?

Usage Examples

The examples in this section are based on the following graph:

CREATE (s1:Student:TA:Graduate {name: 'Priya', score: 87, grade: 'B'})
CREATE (s2:Student:Graduate {name: 'Joachim', score: 90, grade: 'A'})
CREATE (s3:Student:TA:Graduate {name: 'Dominic', score: 78, grade: 'C'})
CREATE (s4:Student:Undergraduate {name: 'Amir', score: 84, grade: 'B'})
CREATE (s5:Student:Undergraduate {name: 'Natasha', score: 76, grade: 'C'})
CREATE (s6:Student:Undergraduate {name: 'Elena', score: 92, grade: 'A'});

The apoc.create.vPattern and apoc.create.vPatternFull are procedures that allow us to create a virtual graph - both nodes and relationships at once. Both procedures have the same functionality, but slightly different syntax for specifying the nodes and relationships to create.

As an example, all of our data is in the Student nodes, but we can separate some of the data into other nodes and relationships with the query below.

apoc.create.vPattern
MATCH (s:Student)
CALL apoc.create.vPattern(
  {_labels:['Student'],name:s.name},
  'FINISHED_COURSE_WITH',
  {score: s.score},
  {_labels:['Grade'],letter: s.grade}
)
YIELD from, rel, to
RETURN from, rel, to;

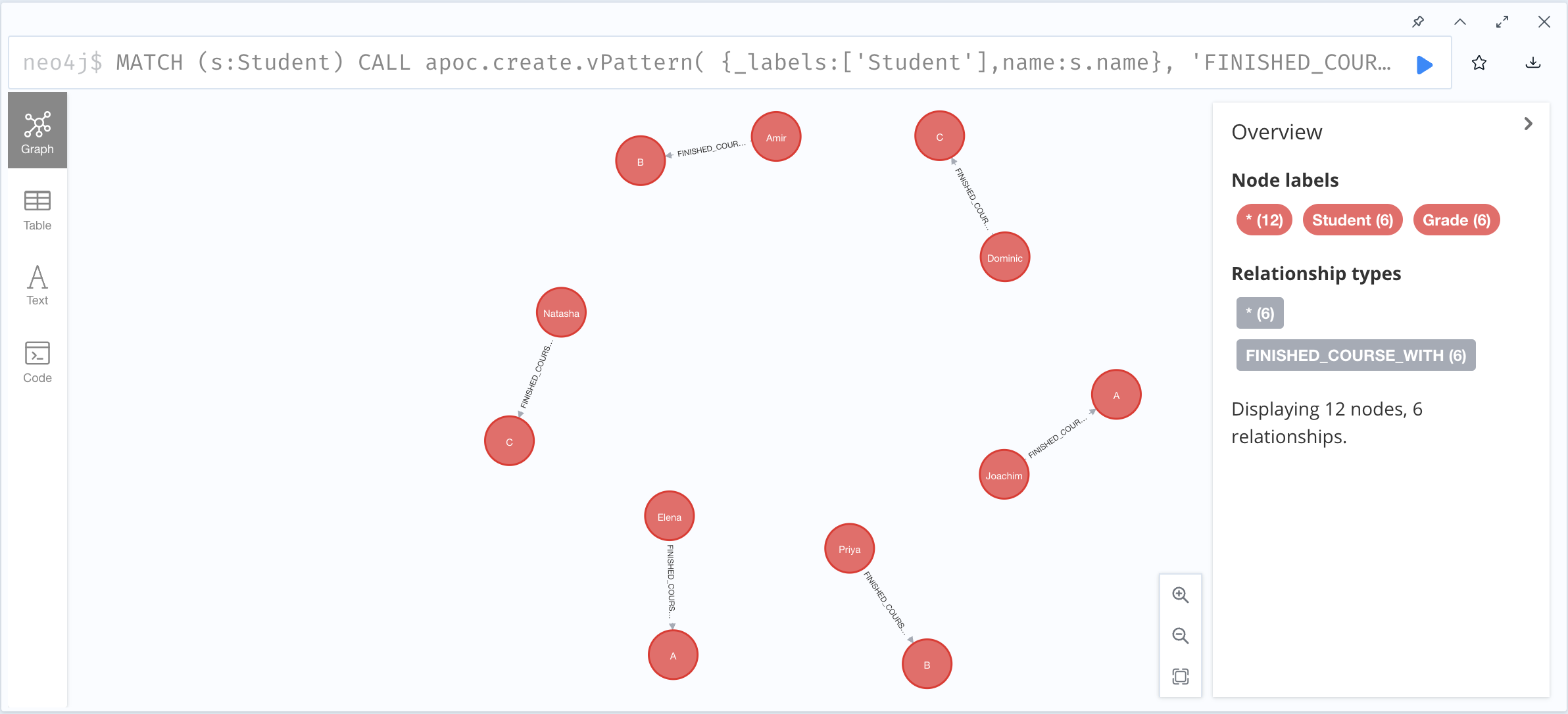

apoc.create.vPattern
Figure 1. Results

Note that the statement above does a CREATE (not MERGE), so it creates multiple nodes with the same grade letters.

Let’s do the same thing with the apoc.create.vPatternFull procedure to see the syntax differences and that the result is the same.

apoc.create.vPatternFull
MATCH (s:Student)
CALL apoc.create.vPatternFull(
  ['Student'],
  {name: s.name},
  'FINISHED_COURSE_WITH',
  {score: s.score},
  ['Grade'],
  {letter: s.grade}
)
YIELD from, rel, to
RETURN from, rel, to;

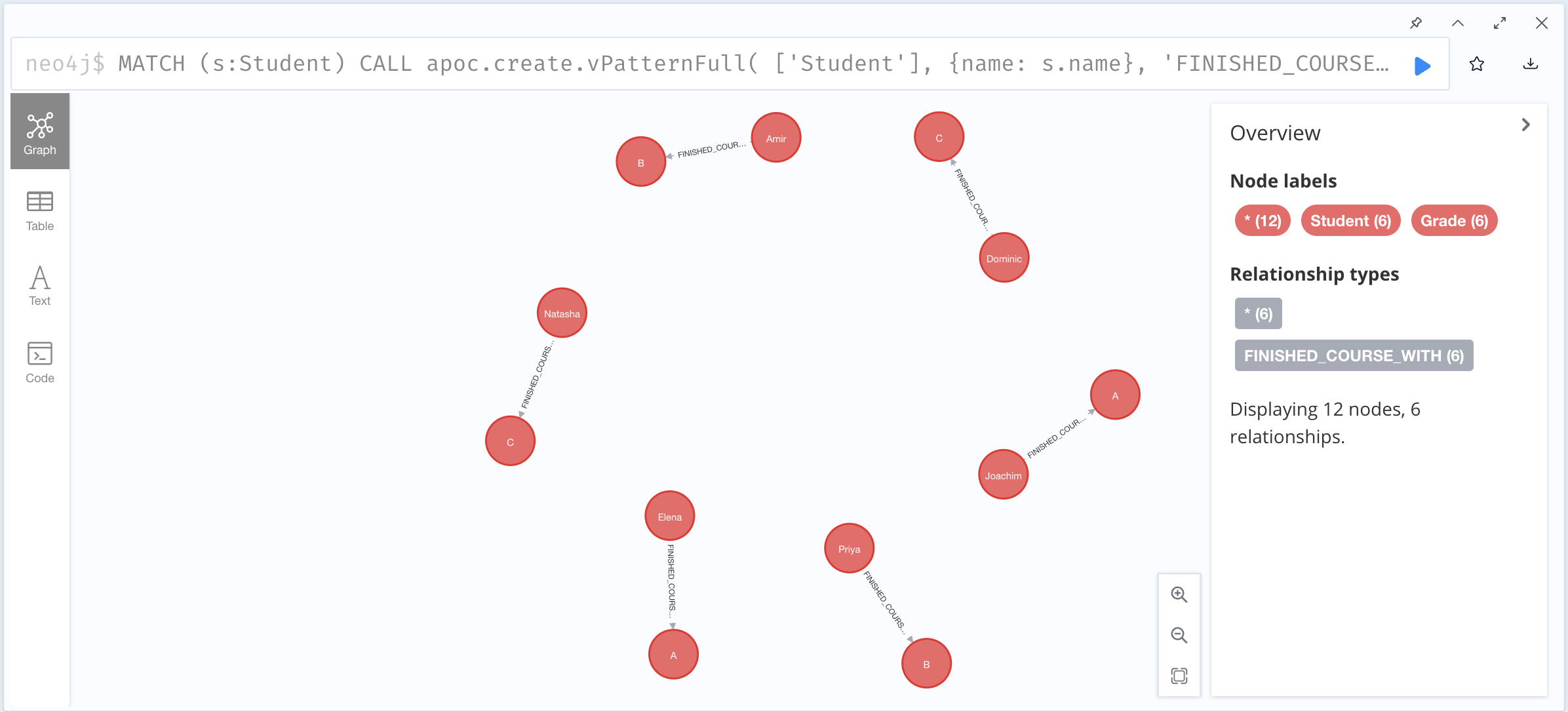

apoc.create.vPatternFull
Figure 2. Results
