Load JDBC (RDBMS)

Data Integration is an important topic. Reading data from relational databases to create and augment data models is a very helpful exercise.

With apoc.load.jdbc you can access any database that provides a JDBC driver, and execute queries whose results are turned into streams of rows. Those rows can then be used to update or create graph structures.

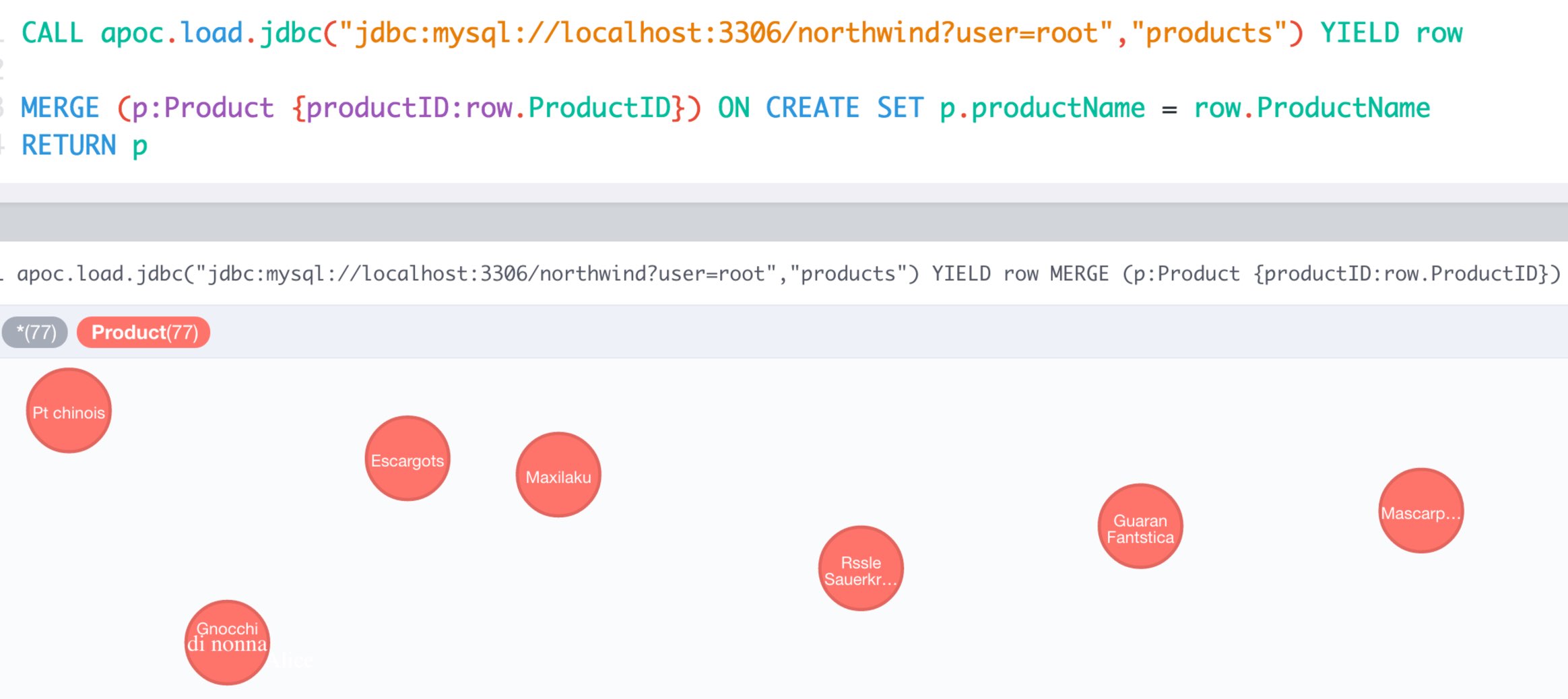

apoc jdbc northwind load

To simplify the JDBC URL syntax and protect credentials, you can configure aliases in conf/apoc.conf:

apoc.jdbc.myDB.url=jdbc:derby:derbyDB
CALL apoc.load.jdbc('jdbc:derby:derbyDB','PERSON')

becomes

CALL apoc.load.jdbc('myDB','PERSON')

The 3rd value in the apoc.jdbc.<alias>.url= effectively defines an alias to be used in apoc.load.jdbc('<alias>',…​.

MySQL Example

Northwind is a common example set for relational databases, which is also covered in our import guides, e.g. :play northwind graph in the Neo4j browser.

MySQL Northwind Data

select count(*) from products;
Table 1. Results
count(*)

77

describe products;
Table 2. Results
Field Type Null Key Default Extra

ProductID

int(11)

NO

PRI

NULL

auto_increment

ProductName

varchar(40)

NO

MUL

NULL

SupplierID

int(11)

YES

MUL

NULL

CategoryID

int(11)

YES

MUL

NULL

QuantityPerUnit

varchar(20)

YES

NULL

UnitPrice

decimal(10,4)

YES

0.0000

UnitsInStock

smallint(2)

YES

0

UnitsOnOrder

smallint(2)

YES

0

ReorderLevel

smallint(2)

YES

0

Discontinued

bit(1)

NO

b'0'

Load JDBC Examples

Load the JDBC driver
CALL apoc.load.driver("com.mysql.jdbc.Driver");
Count rows in products table
WITH "jdbc:mysql://localhost:3306/northwind?user=root" as url
CALL apoc.load.jdbc(url,"products") YIELD row
RETURN count(*);
Table 3. Results
count(*)

77

Return row from products table
WITH "jdbc:mysql://localhost:3306/northwind?user=root" as url
CALL apoc.load.jdbc(url,"products") YIELD row
RETURN row limit 1;
Table 4. Results
row

{UnitPrice → 18.0000, UnitsOnOrder → 0, CategoryID → 1, UnitsInStock → 39}

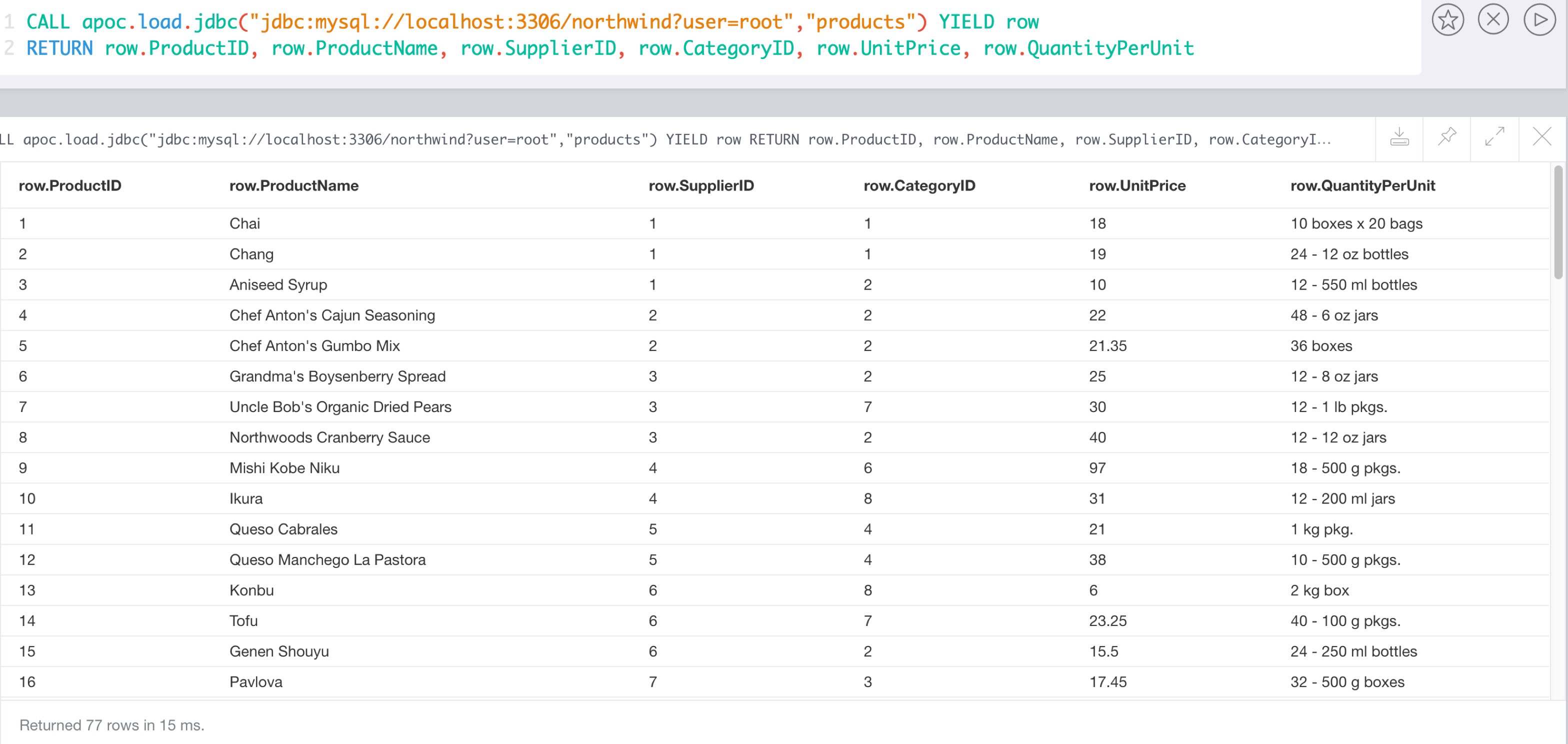

apoc load jdbc

Load JDBC with params Examples

WITH "select firstname, lastname from employees where firstname like ? and lastname like ?" as sql
CALL apoc.load.jdbcParams("northwind", sql, ['F%', '%w'])
YIELD row
RETURN row

JDBC pretends positional "?" for parameters, so the third apoc parameter has to be an array with values coherent with that positions. In case of 2 parameters, firstname and lastname ['firstname-position','lastname-position']

Load data in transactional batches

You can load data from jdbc and create/update the graph using the query results in batches (and in parallel).

CALL apoc.periodic.iterate(
  'CALL apoc.load.jdbc("jdbc:mysql://localhost:3306/northwind?user=root","company")',
  'CREATE (p:Person) SET p += value',
  { batchSize:10000, parallel:true})
RETURN batches, total

Cassandra Example

Setup Song database as initial dataset

curl -OL https://raw.githubusercontent.com/neo4j-contrib/neo4j-cassandra-connector/master/db_gen/playlist.cql
curl -OL https://raw.githubusercontent.com/neo4j-contrib/neo4j-cassandra-connector/master/db_gen/artists.csv
curl -OL https://raw.githubusercontent.com/neo4j-contrib/neo4j-cassandra-connector/master/db_gen/songs.csv
$CASSANDRA_HOME/bin/cassandra
$CASSANDRA_HOME/bin/cqlsh -f playlist.cql

Download the Cassandra JDBC Wrapper, and put it into your $NEO4J_HOME/plugins directory. Add this config option to $NEO4J_HOME/conf/apoc.conf to make it easier to interact with the cassandra instance.

Add to conf/apoc.conf
apoc.jdbc.cassandra_songs.url=jdbc:cassandra://localhost:9042/playlist

Restart the server.

Now you can inspect the data in Cassandra with.

CALL apoc.load.jdbc('cassandra_songs','artists_by_first_letter')
YIELD row
RETURN count(*);
Table 5. Results
count(*)

3605

CALL apoc.load.jdbc('cassandra_songs','artists_by_first_letter')
YIELD row
RETURN row LIMIT 5;
CALL apoc.load.jdbc('cassandra_songs','artists_by_first_letter')
YIELD row
RETURN row.first_letter, row.artist
LIMIT 5;
Table 6. Results
row.first_letter row.artist

C

C.W. Stoneking

C

CH2K

C

CHARLIE HUNTER WITH LEON PARKER

C

Calvin Harris

C

Camané

Let’s create some graph data, we have a look at the track_by_artist table, which contains about 60k records.

CALL apoc.load.jdbc('cassandra_songs','track_by_artist')
YIELD row
RETURN count(*);
CALL apoc.load.jdbc('cassandra_songs','track_by_artist')
YIELD row
RETURN row
LIMIT 5;
CALL apoc.load.jdbc('cassandra_songs','track_by_artist')
YIELD row
RETURN row.track_id, row.track_length_in_seconds, row.track, row.music_file, row.genre, row.artist, row.starred
LIMIT 2;
Table 7. Results
row.track_id length row.track row.music_file row.genre row.artist row.starred

c0693b1e-0eaa-4e81-b23f-b083db303842

219

1913 Massacre

TRYKHMD128F934154C

folk

Woody Guthrie & Jack Elliott

false

7d114937-0bc7-41c7-8e0c-94b5654ac77f

178

Alabammy Bound

TRMQLPV128F934152B

folk

Woody Guthrie & Jack Elliott

false

Let’s create some indexes and constraints, note that other indexes and constraints will be dropped by this.

CALL apoc.schema.assert(
  {Track:['title','length']},
  {Artist:['name'],Track:['id'],Genre:['name']});
Table 8. Results
label key unique action

Track

title

false

CREATED

Track

length

false

CREATED

Artist

name

true

CREATED

Genre

name

true

CREATED

Track

id

true

CREATED

CALL apoc.load.jdbc('cassandra_songs','track_by_artist')
YIELD row
MERGE (a:Artist {name:row.artist})
MERGE (g:Genre {name:row.genre})
CREATE (t:Track {id:toString(row.track_id), title:row.track, length:row.track_length_in_seconds})
CREATE (a)-[:PERFORMED]->(t)
CREATE (t)-[:GENRE]->(g);
Added 63213 labels, created 63213 nodes, set 182413 properties, created 119200 relationships, statement executed in 40076 ms.

Support for Hive with Kerberos Auth

Support for Hive especially with Kerberos is more involved.

First of all the required configuration is more detailed, make sure to get this information:

  • kerberos user / password

  • kerberos realm / kdc

  • hive hostname + port (10000)

Create this login.conf file at a known location:

login.conf
KerberosClient {
  com.sun.security.auth.module.Krb5LoginModule required
  debug=true debugNative=true;
};

Add these options to your conf/apoc.conf

apoc.conf
dbms.jvm.additional=-Djava.security.auth.login.config=/path/to/login.conf
dbms.jvm.additional=-Djava.security.auth.login.config.client=KerberosClient
dbms.jvm.additional=-Djava.security.krb5.realm=KRB.REALM.COM
dbms.jvm.additional=-Djava.security.krb5.kdc=krb-kdc.host.com

Unlike other JDBC drivers, Hive comes with a bunch of dependencies, you can download these from the Hadoop providers

or grab them from maven central.

The versions might vary, use what comes with your Hive driver.

  • hadoop-common-2.7.3.2.6.1.0-129.jar

  • hive-exec-1.2.1000.2.6.1.0-129.jar

  • hive-jdbc-1.2.1000.2.6.1.0-129.jar

  • hive-metastore-1.2.1000.2.6.1.0-129.jar

  • hive-service-1.2.1000.2.6.1.0-129.jar

  • httpclient-4.4.jar

  • httpcore-4.4.jar

  • libfb303-0.9.2.jar

  • libthrift-0.9.3.jar

Now you can use a JDBC URL like this from APOC.

This has no newlines, it’s just wrapped because it is too long.

jdbc:hive2://username%40krb-realm:password@hive-hostname:10000/default;principal=hive/hostname@krb-realm;auth=kerberos;kerberosAuthType=fromSubject

And then call:

WITH 'jdbc:hive2://username%40krb-realm:password@hive-hostname:10000/default;principal=hive/hostname@krb-realm;auth=kerberos;kerberosAuthType=fromSubject' AS url
CALL apoc.load.jdbc(url,'PRODUCTS')
YIELD row
RETURN row.name, row.price;

You can also set it in your conf/apoc.conf as a key:

apoc.conf
apoc.jdbc.my-hive.url=jdbc:hive2://username%40krb-realm:password@hive-hostname:10000/default;principal=hive/hostname@krb-realm;auth=kerberos;kerberosAuthType=fromSubject

And then use the more compact call:

CALL apoc.load.jdbc('my-hive','SELECT * PRODUCTS');

LOAD JDBC - Resources

To use other JDBC drivers use these download links and JDBC URL. Put the JDBC driver into the $NEO4J_HOME/plugins directory and configure the JDBC-URL in $NEO4J_HOME/conf/apoc.conf with apoc.jdbc.<alias>.url=<jdbc-url>

Credentials can be passed in two ways:

  • into url

CALL apoc.load.jdbc('jdbc:derby:derbyDB;user=apoc;password=Ap0c!#Db;create=true', 'PERSON')
  • by config parameter.

CALL apoc.load.jdbc('jdbc:derby:derbyDB', 'PERSON',[],{credentials:{user:'apoc',password:'Ap0c!#Db'}})

Google BigQuery using Simba drivers requires an additional parameter 'autoCommit' to be used e.g.

CALL apoc.load.jdbc('BigQuery', 'SELECT action_type FROM `patents-public-data.ebi_chembl.action_type` LIMIT 10', [], {autoCommit:true})
Database JDBC-URL Driver Source

MySQL

jdbc:mysql://<hostname>:<port/3306>/<database>?user=<user>&password=<pass>

Postgres

jdbc:postgresql://<hostname>/<database>?user=<user>&password=<pass>

Oracle

jdbc:oracle:thin:<user>/<pass>@<host>:<port>/<service_name>

MS SQLServer

jdbc:sqlserver://;servername=<servername>;databaseName=<database>;user=<user>;password=<pass>

IBM DB2

jdbc:db2://<host>:<port/5021>/<database>:user=<user>;password=<pass>;

Derby

jdbc:derby:derbyDB

Included in JDK6-8

Cassandra

jdbc:cassandra://<host>:<port/9042>/<database>

SAP Hana

jdbc:sap://<host>:<port/39015>/?user=<user>&password=<pass>

Apache Hive (w/ Kerberos)

jdbc:hive2://username%40krb-realm:password@hostname:10000/default;principal=hive/hostname@krb-realm;auth=kerberos;kerberosAuthType=fromSubject

Apache Hive Driver (Cloudera) (Hortonworks) There are several jars (hadoop-common-xxx.jar hive-exec-xxx.jar hive-jdbc-xxx.jar hive-metastore-xxx.jar hive-service-xxx.jar httpclient-4.4.jar httpcore-4.4.jar libfb303-0.9.2.jar libthrift-0.9.3.jar)

Google BigQuery

jdbc:bigquery://https://www.googleapis.com/bigquery/v2:443;ProjectId=<Project ID>;OAuthType=0;OAuthServiceAcctEmail=<Service Account ID>;OAuthPvtKeyPath=/path/to/<Private Key>.json

Simba Drivers for BigQuery There are several jars

There are a number of blog posts / examples that details usage of apoc.load.jdbc

LOAD JDBC - UPDATE

The jdbcUpdate is use for update relational database, from a SQL statement with optional parameters

CALL apoc.load.jdbcUpdate(jdbc-url,statement, params, config)

With this set of data you can call the procedure in two different mode:

MATCH (u:User)-[:BOUGHT]->(p:Product)<-[:BOUGHT]-(o:User)-[:BOUGHT]->(reco)
WHERE u <> o AND NOT (u)-[:BOUGHT]->(reco)
WITH u, reco, count(*) as score
WHERE score > 1000

You can call the procedure with param:

CALL apoc.load.jdbcUpdate('jdbc:mysql:....','INSERT INTO RECOMMENDATIONS values(?,?,?)',[user.id, reco.id, score]);

You can call the procedure without param:

CALL apoc.load.jdbcUpdate('jdbc:mysql:....','INSERT INTO RECOMMENDATIONS values(user.id, reco.id, score)');

Load JDBC format date

Starting from Neo4j 3.4 there is the support for Temporal Values

If the returning JdbcType, from the load operation, is TIMESTAMP or TIMESTAMP_WITH_TIMEZONE you could provide the configuration parameter timezone with type java.time.ZoneId

CALL apoc.load.jdbc('key or url','table or statement', config);

Config

Config param is optional, the default value is an empty map.

timezone

default value: null

credentials

default value: {}

Example:

with timezone
CALL apoc.load.jdbc(
  'jdbc:derby:derbyDB',
  'SELECT * FROM PERSON WHERE NAME = ?',['John'],
  {timezone: "Asia/Tokyo"})
2018-10-31T01:32:25.012+09:00[Asia/Tokyo]
with credentials
CALL apoc.load.jdbcUpdate('jdbc:derby:derbyDB','UPDATE PERSON SET NAME = ? WHERE NAME = ?',['John','John'],{credentials:{user:'apoc',password:'Ap0c!#Db'}})
CALL apoc.load.jdbc('jdbc:derby:derbyDB', 'PERSON',[],{credentials:{user:'apoc',password:'Ap0c!#Db'}})
