apoc.refactor.cloneSubgraph

Procedure APOC Core

apoc.refactor.cloneSubgraph([node1,node2,…​], [rel1,rel2,…​]:[], {standinNodes:[], skipProperties:[]}) YIELD input, output, error | clone nodes with their labels and properties (optionally skipping any properties in the skipProperties list via the config map), and clone the given relationships (will exist between cloned nodes only). If no relationships are provided, all relationships between the given nodes will be cloned. Relationships can be optionally redirected according to standinNodes node pairings (this is a list of list-pairs of nodes), so given a node in the original subgraph (first of the pair), an existing node (second of the pair) can act as a standin for it within the cloned subgraph. Cloned relationships will be redirected to the standin.

Signature

apoc.refactor.cloneSubgraph(nodes :: LIST? OF NODE?, rels = [] :: LIST? OF RELATIONSHIP?, config = {} :: MAP?) :: (input :: INTEGER?, output :: NODE?, error :: STRING?)

Input parameters

Name Type Default

nodes

LIST? OF NODE?

null

rels

LIST? OF RELATIONSHIP?

[]

config

MAP?

{}

Output parameters

Name Type

input

INTEGER?

output

NODE?

error

STRING?

Usage Examples

The examples in this section are based on the following sample graph:

CREATE  (rootA:Root{name:'A'}),
        (rootB:Root{name:'B'}),
        (n1:Node{name:'node1', id:1}),
        (n2:Node{name:'node2', id:2}),
        (n3:Node{name:'node3', id:3}),
        (n4:Node{name:'node4', id:4}),
        (n5:Node{name:'node5', id:5}),
        (n6:Node{name:'node6', id:6}),
        (n7:Node{name:'node7', id:7}),
        (n8:Node{name:'node8', id:8}),
        (n9:Node{name:'node9', id:9}),
        (n10:Node{name:'node10', id:10}),
        (n11:Node{name:'node11', id:11}),
        (n12:Node{name:'node12', id:12})
        CREATE (rootA)-[:LINK]->(n1)-[:LINK]->(n2)-[:LINK]->(n3)-[:LINK]->(n4)
        CREATE                  (n1)-[:LINK]->(n5)-[:LINK]->(n6)<-[:LINK]-(n7)
        CREATE                                (n5)-[:LINK]->(n8)
        CREATE                                (n5)-[:LINK]->(n9)-[:DIFFERENT_LINK]->(n10)
        CREATE (rootB)-[:LINK]->(n11);

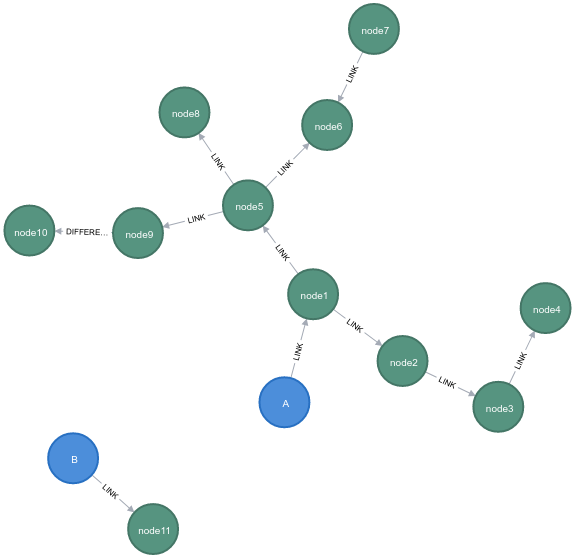

apoc.refactor.cloneSubgraph before
Figure 1. Graph before subgraph cloning

This procedure clones a subgraph defined by a list of nodes and a list of relationships. If relationships are not provided, all relationships between the given nodes will be cloned. This is useful when you want to ensure the cloned subgraph isn’t connected to the original nodes, or to nodes outside the subgraph.

We can get the nodes and relationships from the yielded output of apoc.path.subgraphAll, filtering to the relationship types in the call to that procedure.

The following query clones a subtree starting from rootA consisting of outgoing :LINK relationships, and attaches that subgraph to rootB. rootB acts as a standin for rootA, which is not cloned:

MATCH  (rootA:Root{name:'A'}),
       (rootB:Root{name:'B'})
CALL apoc.path.subgraphAll(rootA, {relationshipFilter:'LINK>'})
YIELD nodes, relationships
CALL apoc.refactor.cloneSubgraph(
    nodes,
    [rel in relationships WHERE type(rel) = 'LINK'],
    { standinNodes:[[rootA, rootB]] })
YIELD input, output, error
RETURN input, output, error;
Table 1. Results
input output error

31378

(:Node {name: "node1", id: 1})

NULL

31382

(:Node {name: "node5", id: 5})

NULL

31379

(:Node {name: "node2", id: 2})

NULL

31386

(:Node {name: "node9", id: 9})

NULL

31383

(:Node {name: "node6", id: 6})

NULL

31385

(:Node {name: "node8", id: 8})

NULL

31380

(:Node {name: "node3", id: 3})

NULL

31381

(:Node {name: "node4", id: 4})

NULL

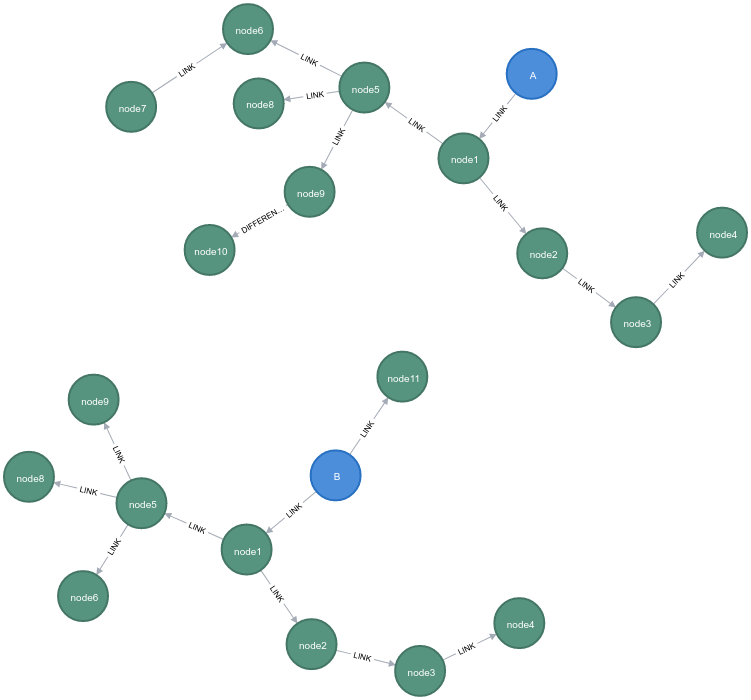

apoc.refactor.cloneSubgraph after
Figure 2. Graph after subgraph cloning
