Graph Grouping

Large graphs are often hard to understand or visualize.

Tabular results can be aggregated for overviews, e.g. in charts with sums, counts etc.

Grouping nodes by property values into virtual nodes helps to do the same with graph visualizations.

When doing that, relationships between those groups are aggregated too, so you only see the summary information.

This functionality is inspired by the work of Martin Junghanns in the Grouping Demo for the Gradoop Graph Processing system.

Basically you can use any (entity)<-->(entity) graph for the grouping, support for graph projections is on the roadmap.

Here is an example using the dataset from :play movies.

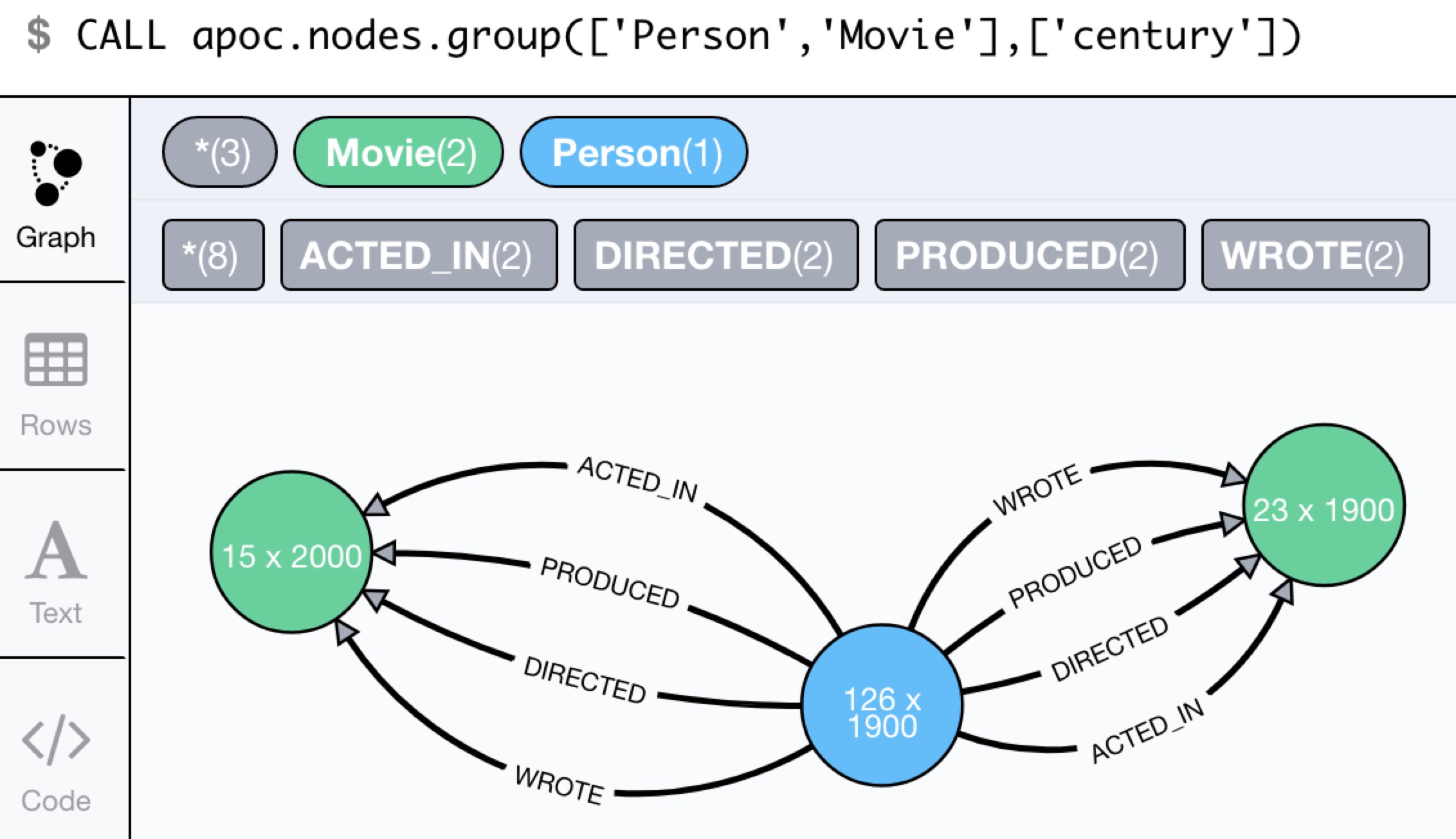

Example on movie graph
SET n.century = toInteger(coalesce(n.born,n.released)/100) * 100;


Sometimes an UI has an issue with the return values of the grouping (list of nodes and list of relationships), then it might help to run:

YIELD nodes, relationships
UNWIND nodes as node
UNWIND relationships as rel
RETURN node, rel;


CALL,properties, [grouping], [config])

The only required parameters are a label-list (can also be ['*']) and a list of property names to group by (both for rels/nodes).

Optionally you can also provide grouping operators by field and a number of configuration options.

Grouping Operators

For grouping operators, you provide a map of operations per field in this form: {fieldName: [operators]}

One map for nodes and one for relationships: [{nodeOperators},{relOperators}]

Possible operators:

  • count_*

  • count

  • sum

  • min/max

  • avg

  • collect

The default is: [{`*`:"count"},{`*`:"count"}] which just counts nodes and relationships.


In the config there are more options:

option default description



show self-relationships in resulting graph



show orphan nodes in resulting graph



limit to maximum of nodes



limit to maximum of rels



limit number of relationships per node



a min/max filter by property value, e.g. {User.count_*.min:2} see below

The filter config option is a map of {Label/TYPE.operator_property.min/max: number} where the Label/TYPE. prefix is optional.

So you can e.g. filter only for people with a min-age in the grouping of 21: Person.min_age.min: 21 or having at most 10 KNOWS relationships in common: KNOWS.count_*.max:10.


Graph Setup
 (alice:Person {name:'Alice', gender:'female', age:32, kids:1}),
 (bob:Person   {name:'Bob',   gender:'male',   age:42, kids:3}),
 (eve:Person   {name:'Eve',   gender:'female', age:28, kids:2}),
 (graphs:Forum {name:'Graphs',    members:23}),
 (dbs:Forum    {name:'Databases', members:42}),
 (alice)-[:KNOWS {since:2017}]->(bob),
 (eve)-[:KNOWS   {since:2018}]->(bob),
  [{`*`:'count', age:'min'}, {`*`:'count'} ])
Table 1. Results
nodes relationships node relationship

















Note that this query doesn’t work in Neo4j Browser in "Graph" mode but only in "Table" mode (or also in cypher-shell) because, since Forum does not have the gender property, in node result there will be a "gender": null property which is not supported and returns a TypeError. Instead, the query below also works in "Graph" mode:

        [{`*`:'count', kids:'sum', age:['min', 'max', 'avg'], gender:'collect'},
         {`*`:'count', since:['min', 'max']}]);

Larger Example

with ["US","DE","UK","FR","CA","BR","SE"] as tld
unwind range(1,1000) as id
create (u:User {id:id, age : id % 100, female: rand() < 0.5, name: "Name "+id, country:tld[toInteger(rand()*size(tld))]})
with collect(u) as users
unwind users as u
with u, users[toInteger(rand()*size(users))] as u2
where u <> u2
merge (u)-[:KNOWS]-(u2);
call['*'], ['country'])
yield node, relationship return *

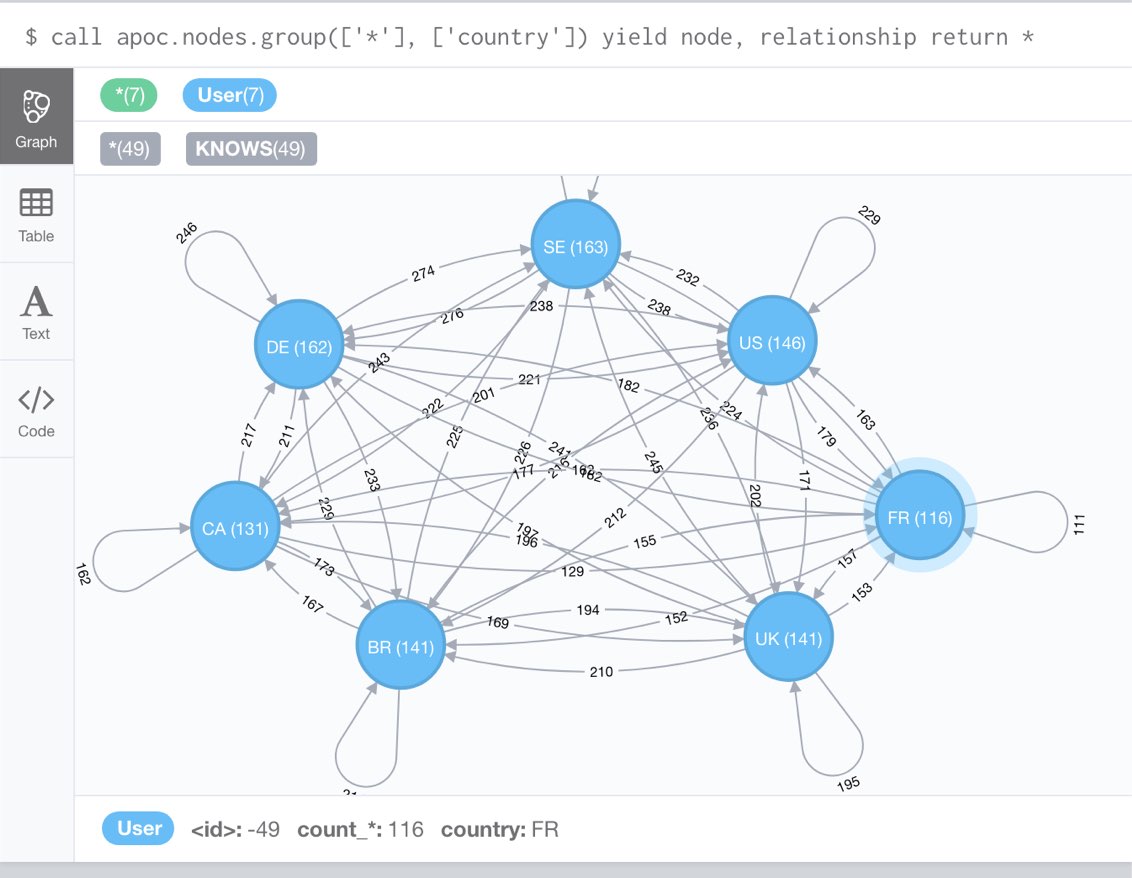

grouping country all
call['*'], ['country'], null,
    {selfRels:false, orphans:false,
yield node, relationship return *

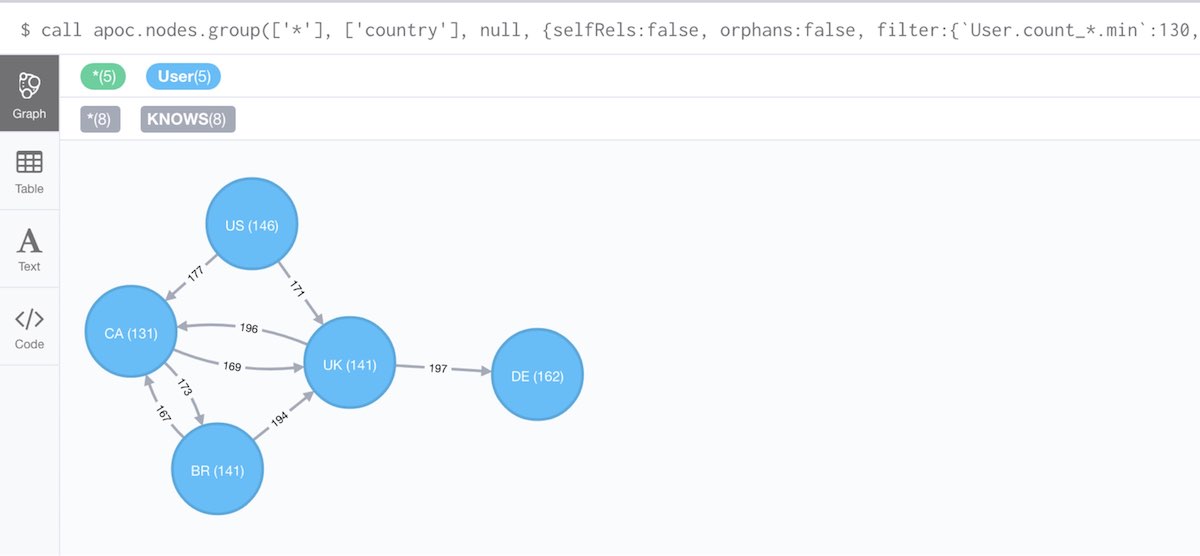

grouping country filter

To visualize this result in Neo4j Browser it’s useful to have a custom Graph Style Sheet (GRASS) that renders the grouped properties with some of the aggregations.

node {
  diameter: 50px;
  color: #A5ABB6;
  border-color: #9AA1AC;
  border-width: 2px;
  text-color-internal: #FFFFFF;
  font-size: 10px;

relationship {
  color: #A5ABB6;
  shaft-width: 3px;
  font-size: 8px;
  padding: 3px;
  text-color-external: #000000;
  text-color-internal: #FFFFFF;
  caption: '{count_*}';

node.Country {
  color: #68BDF6;
  diameter: 80px;
  border-color: #5CA8DB;
  text-color-internal: #FFFFFF;
  caption: '{country} ({count_*})';
