OpenAI Agents SDK + Neo4j Integration

This folder demonstrates three approaches for integrating Neo4j with the OpenAI Agents SDK. Each approach builds on the previous one, adding more capability.

Notebook Description

openai_agents.ipynb

End-to-end walkthrough of all three approaches with working examples

Overview

The demo uses the publicly accessible Neo4j companies knowledge graphOrganization nodes linked to Article nodes via [:MENTIONS] relationships.

Architecture

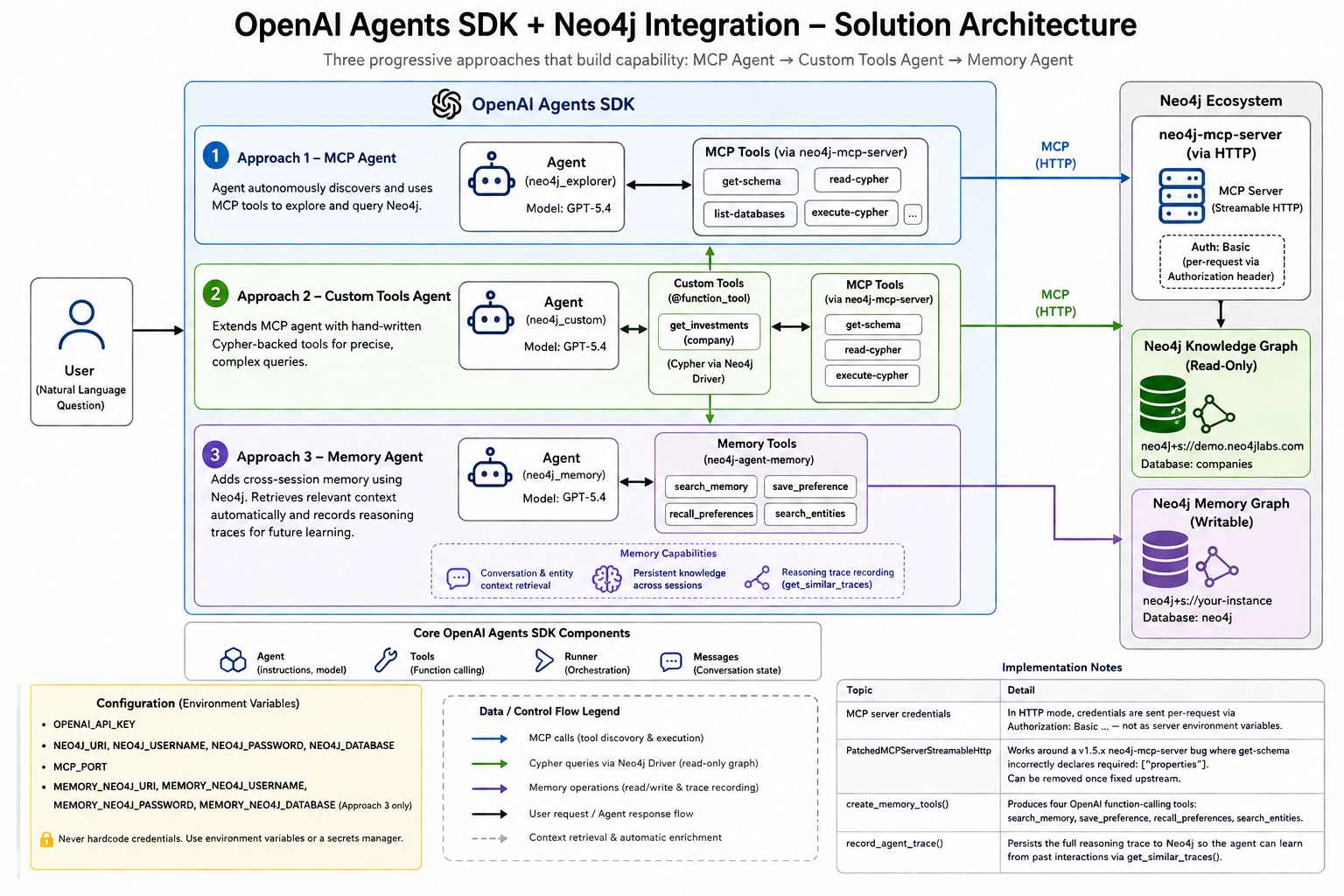

OpenAI Agents SDK + Neo4j Solution Architecture

The diagram shows three progressive approaches that build on each other: MCP Agent → Custom Tools Agent → Memory Agent. Each approach adds more capability while sharing the same Neo4j knowledge graph backend.

Prerequisites

  • Python 3.10+

  • An OpenAI API key

  • A running Neo4j instance (the notebook uses the public read-only companies demo database)

Installation

pip install --upgrade openai-agents "neo4j-agent-memory[openai-agents]"
pip install --ignore-requires-python neo4j-mcp-server

Configuration

Set the following environment variables before running the notebook:

# OpenAI
export OPENAI_API_KEY="sk-..."

# Neo4j Knowledge Graph (public read-only demo — no changes needed)
export NEO4J_URI="neo4j+s://demo.neo4jlabs.com:7687"
export NEO4J_USERNAME="companies"
export NEO4J_PASSWORD="companies"
export NEO4J_DATABASE="companies"

# MCP server port
export MCP_PORT="8443"

# Neo4j Memory DB — only required for Approach 3 (must be writable)
export MEMORY_NEO4J_URI="neo4j+s://your-instance.databases.neo4j.io"
export MEMORY_NEO4J_USERNAME="neo4j"
export MEMORY_NEO4J_PASSWORD="your-password"
export MEMORY_NEO4J_DATABASE="neo4j"

Security: Never hardcode credentials in notebook cells or commit them to source control. Use environment variables or a secrets manager.


Approach 1 — MCP Agent

Connect an OpenAI agent to Neo4j via the Model Context Protocol. The agent automatically decides which MCP tools to call (get-schema, read-cypher, etc.) to answer natural-language questions.

Key APIs: MCPServerStreamableHttp, Agent, Runner

from agents import Agent, Runner
from agents.mcp import MCPServerStreamableHttp

mcp_server = MCPServerStreamableHttp(
    params={
        "url":     f"http://localhost:{MCP_PORT}/mcp",
        "headers": {"Authorization": f"Basic {creds}"},
    },
    name="neo4j",
)
await mcp_server.connect()

agent = Agent(
    name="neo4j_explorer",
    instructions="You are a graph database assistant ...",
    mcp_servers=[mcp_server],
    model="gpt-5.4",
)

result = await Runner.run(agent, "How many organizations are in the database?")
print(result.final_output)

Example output:

Query: How many organizations are in the database?

Result: There are 46,088 organizations in the database.

When to use: You want a fully autonomous agent that can explore and query any Neo4j graph without writing Cypher yourself.


Approach 2 — Custom Tools Agent

Extend the MCP agent with hand-written Cypher-backed tools using the @function_tool decorator. Custom tools and MCP tools are passed to the same agent — the framework routes each call to the correct handler.

Key APIs: @function_tool, Agent(tools=[…​], mcp_servers=[…​])

from agents import Agent, Runner, function_tool
import neo4j as _neo4j

driver = _neo4j.AsyncGraphDatabase.driver(
    os.environ["NEO4J_URI"],
    auth=(os.environ["NEO4J_USERNAME"], os.environ["NEO4J_PASSWORD"]),
)

@function_tool
async def get_investments(company: str) -> list:
    """Returns investments made by a company — ids, names, and types."""
    result = await driver.execute_query(
        """MATCH (o:Organization)-[:HAS_INVESTOR]->(i)
           WHERE o.name = $company
           RETURN i.id AS id, i.name AS name, head(labels(i)) AS type""",
        company=company,
        database_=os.environ["NEO4J_DATABASE"],
    )
    return [record.data() for record in result.records]

agent = Agent(
    name="neo4j_custom",
    instructions="You are a helpful assistant with access to a Neo4j graph database ...",
    tools=[get_investments],
    mcp_servers=[mcp_server],
    model="gpt-5.4",
)

result = await Runner.run(agent, "Which companies did Google invest in?")
print(result.final_output)

Example output:

Query: Which companies did Google invest in?

Result: Google has invested in the following companies:

1. Ionic Security
2. Avere Systems
3. FlexiDAO
4. Cloudflare
5. Trifacta

When to use: You need precise control over specific queries (e.g., complex multi-hop Cypher) while still leveraging the MCP server for general graph exploration.


Approach 3 — Memory Agent

Add cross-session persistent memory to the agent using neo4j-agent-memory. The agent stores conversation history and entity knowledge in a Neo4j graph and retrieves relevant context automatically on each turn.

Key APIs: Neo4jOpenAIMemory, create_memory_tools(), execute_memory_tool(), record_agent_trace()

Prerequisite: This approach requires a writable Neo4j instance. Set the MEMORY_NEO4J_* environment variables described in the Configuration section.

from neo4j_agent_memory import MemoryClient, MemorySettings, Neo4jConfig
from neo4j_agent_memory.integrations.openai_agents import (
    Neo4jOpenAIMemory, create_memory_tools, record_agent_trace,
)
from neo4j_agent_memory.integrations.openai_agents.memory import execute_memory_tool

# Initialise memory
mem_client = MemoryClient(settings)
memory = Neo4jOpenAIMemory(memory_client=mem_client, session_id="demo-session")

# Turn 1 — establish research context
await run_turn(memory, "I am conducting a competitive analysis of 'Google'. ...")

# Turn 2 — memory context from Turn 1 is surfaced automatically via get_context()
await run_turn(memory, "What are the main risks in the supply chain for the company I am currently tracking?")

# Persist the reasoning trace for future learning
await record_agent_trace(memory=memory, messages=conversation, task="...", success=True)

Example output:

[USER]: I am conducting a competitive analysis of 'Google'. I am specifically
        worried about their subsidiaries and who their top-tier competitors are in the AI space.

[AGENT]: Google's key subsidiaries include DeepMind, Waymo, and Verily.
         Top AI competitors include Microsoft (OpenAI partnership), Meta AI, Amazon (AWS AI), and Apple.

--- Indexing memory (5s)... ---

[USER]: What are the main risks in the supply chain for the company I am currently tracking?

[AGENT]: For Google, key supply chain risks include dependency on TSMC/Samsung for custom TPU chips,
         rare earth material sourcing for hardware, and hyperscale data centre power constraints.

  [Trace] Agent reasoning trace recorded to Neo4j.

When to use: You need agents that remember context across multiple sessions or conversations — ideal for research assistants, customer-facing agents, or any long-running workflow.


Implementation Notes

Topic Detail

MCP server credentials

In HTTP mode, credentials are sent per-request via Authorization: Basic …​ — not as server environment variables.

`PatchedMCPServerStreamableHttp`

Works around a v1.5.x neo4j-mcp-server bug where get-schema incorrectly declares required: ["properties"]. Can be removed once fixed upstream.

`create_memory_tools()`

Produces four OpenAI function-calling tools: search_memory, save_preference, recall_preferences, search_entities.

`record_agent_trace()`

Persists the full reasoning trace to Neo4j so the agent can learn from past interactions via get_similar_traces().
