Vercel AI SDK + Neo4j Integration

Overview

Vercel AI SDK is a TypeScript-first, provider-agnostic toolkit for building AI-powered applications and agents. It supports streaming, structured output, and multi-step agentic tool loops with a unified interface across OpenAI, Google Gemini, Anthropic, Mistral, and more.

Key Features:

  • generateText / streamText for one-shot and streaming LLM calls

  • Multi-step agentic loops via stopWhen: stepCountIs(N) (AI SDK v6+)

  • tool() helper with jsonSchema() for type-safe tool definitions (no Zod required)

  • Provider-agnostic — swap LLMs with a single environment variable change

  • MCP client support via @ai-sdk/mcp

Official Resources:

Architecture

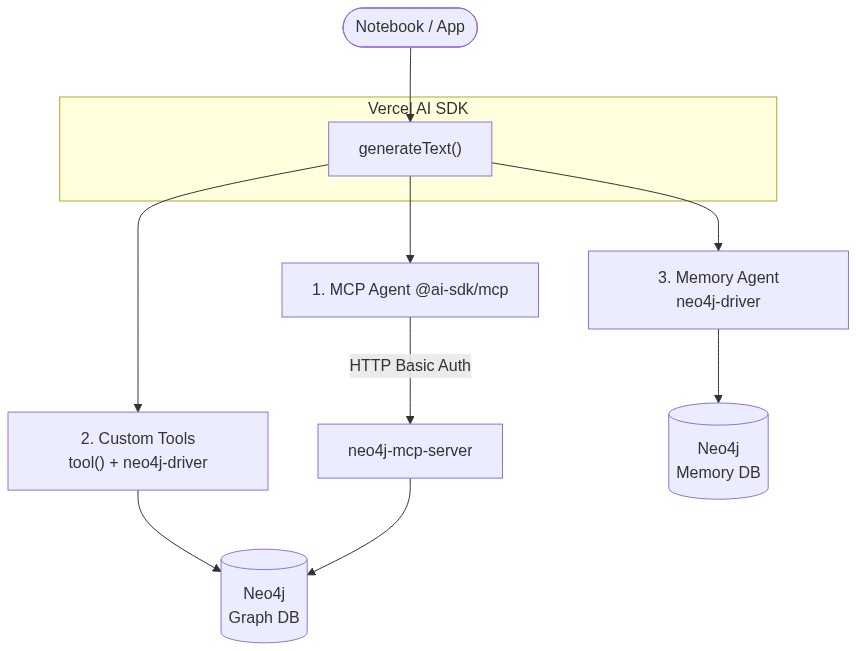

Before (original — 3 extension points, AI SDK v5/v6):

Architecture

After (current — 4 extension points, AI SDK v7, NAMS, demo app):

The vercel AI sdk with Nams

Code Examples

Node.js Scripts — notebook/

Step-by-step agent scripts that progress from a raw Neo4j query to NAMS-backed multi-session memory. All scripts target AI SDK v7 (ai@^7, @ai-sdk/mcp@^2).

Script Description

0-direct-query.mjs

Direct Neo4j query — sanity check, no AI

1-mcp-agent.mjs

MCP agent via createMCPClient (stable v7 API)

2-custom-tools-agent.mjs

MCP + custom Cypher tools merged in one generateText call

3-memory-agent.mjs

Memory using raw @neo4j-labs/agent-memory client (manual before/after hooks)

4-nams-provider-agent.mjs

Memory via @neo4j-labs/nams-ai-provider — provider / middleware / tools modes

See notebook/README.md for full setup and env-var reference.

Next.js Chat App — vercel_Nams_demo/

A production-ready Next.js 16 / React 19 chat application showing all three NAMS (Neo4j Agent Memory System) modes with a live reasoning-trace UI. Uses ToolLoopAgent from AI SDK v7, @neo4j-labs/nams-ai-provider@^0.2, and optionally Neo4j MCP for live graph queries.

Mode (NAMS_MODE) How memory is handled

provider (default)

createNamsProvider() wraps the provider — transparent middleware, no tool calls visible

middleware

createNams().wrap(model, scope) — same behaviour applied to an already-resolved model

tools

createNams().toolsWithMcp()query_memory / store_memory driven by the model; enforceQueryMemory() guards the read

See vercel_Nams_demo/README.md for architecture, integration-mode deep-dives, and setup.

Extension Points

1. MCP Integration

The Vercel AI SDK supports MCP via the @ai-sdk/mcp package. createMCPClient (stable since AI SDK v7 / @ai-sdk/mcp@^2) connects to any MCP server over HTTP or SSE transport, and mcpClient.tools() returns a tools object ready for generateText.

npm install @ai-sdk/mcp
import { generateText, stepCountIs } from 'ai';
import { createMCPClient } from '@ai-sdk/mcp';

// Credentials passed per-request via Basic Auth header
const creds = Buffer.from(`${process.env.NEO4J_USERNAME}:${process.env.NEO4J_PASSWORD}`)
  .toString('base64');

const mcpClient = await createMCPClient({
  transport: {
    type:    'http',
    url:     `http://localhost:${process.env.MCP_PORT}/mcp`,
    headers: { Authorization: `Basic ${creds}` },
  },
});

const mcpTools = await mcpClient.tools();  // get-schema, read-cypher, write-cypher, ...

const { text, steps } = await generateText({
  model,
  system:   'You are a graph database assistant. Run get-schema first if unfamiliar.',
  prompt:   'How many organizations are in the database?',
  tools:    mcpTools,
  stopWhen: stepCountIs(10),   // AI SDK v6+ — replaces the removed maxSteps
});

await mcpClient.close();

Example output:

Connected to Neo4j MCP ✓
Available tools: get-schema, list-gds-procedures, read-cypher, write-cypher

Query: How many organizations are in the database?

Result: There are 46,088 organizations in the database.
[Completed in 3 step(s)]

When to use: Start here. Covers most graph queries with zero Cypher knowledge required — the agent uses get-schema + read-cypher autonomously.


2. Direct Neo4j Integration

For queries that need hand-tuned Cypher or access patterns the MCP server doesn’t expose, use the neo4j-driver directly. Custom tools are defined with tool() + jsonSchema() and can be merged with MCP tools in the same generateText call.

npm install neo4j-driver
import { generateText, tool, jsonSchema, stepCountIs } from 'ai';
import neo4j from 'neo4j-driver';

const driver = neo4j.driver(
  process.env.NEO4J_URI,
  neo4j.auth.basic(process.env.NEO4J_USERNAME, process.env.NEO4J_PASSWORD),
  { disableLosslessIntegers: true }
);

const getInvestments = tool({
  description: 'Returns investments made by a company.',
  inputSchema: jsonSchema({
    type: 'object',
    properties: {
      company: { type: 'string', description: 'Company or organization name' },
    },
    required: ['company'],
  }),
  execute: async ({ company }) => {
    const { records } = await driver.executeQuery(
      `MATCH (o:Organization)-[:HAS_INVESTOR]->(i)
       WHERE o.name = $company
       RETURN i.id AS id, i.name AS name, head(labels(i)) AS type`,
      { company },
      { database: process.env.NEO4J_DATABASE }
    );
    return records.map(r => r.toObject());
  },
});

// Merge custom tool with MCP tools — the framework routes each call automatically
const { text } = await generateText({
  model,
  prompt:   'Which companies did Google invest in?',
  tools:    { ...mcpTools, getInvestments },
  stopWhen: stepCountIs(10),
});

await driver.close();

Example output:

Result: Google has made investments in several notable companies:
- Ionic Security
- Avere Systems
- FlexiDAO
- Cloudflare
- Trifacta
[Completed in 4 step(s)]

When to use: When you need precise Cypher beyond what the MCP server provides, or want to mix domain-specific tools (e.g. custom aggregations, write operations) with MCP tools in a single agent.


3. Custom Tools / Persistent Memory

Memory is stored directly in Neo4j using neo4j-driver — no additional packages needed. The pattern wraps generateText with two hooks:

  • Before hook (injectMemoryContext) — queries recent messages from Neo4j and injects them into the system prompt

  • After hook (saveInteraction) — saves the interaction as (:MemoryMessage) nodes for future recall

Memory schema:

(:MemorySession {id})-[:HAS_MESSAGE]->(:MemoryMessage {role, content, timestamp})
import neo4j from 'neo4j-driver';

const memDriver = neo4j.driver(MEMORY_URI, neo4j.auth.basic(MEMORY_USER, MEMORY_PASS));

async function getRecentMessages(limit = 10) {
  const { records } = await memDriver.executeQuery(
    `MATCH (s:MemorySession {id: $sessionId})-[:HAS_MESSAGE]->(m:MemoryMessage)
     RETURN m.role AS role, m.content AS content
     ORDER BY m.timestamp ASC LIMIT $limit`,
    { sessionId: SESSION_ID, limit },
    { database: MEMORY_DB }
  );
  return records.map(r => `${r.get('role').toUpperCase()}: ${r.get('content')}`);
}

async function runWithMemory(query) {
  // BEFORE: inject conversation history into system prompt
  const history = await getRecentMessages();
  const systemWithContext = history.length
    ? `${SYSTEM_PROMPT}\n\n--- CONVERSATION HISTORY ---\n${history.join('\n')}\n----------------------------`
    : SYSTEM_PROMPT;

  const { text } = await generateText({
    model,
    system:   systemWithContext,
    prompt:   query,
    tools:    mcpTools,
    stopWhen: stepCountIs(10),
  });

  // AFTER: save interaction to memory graph
  await memDriver.executeQuery(
    `MERGE (s:MemorySession {id: $sessionId})
     CREATE (m:MemoryMessage {role: $role, content: $content, timestamp: datetime()})
     CREATE (s)-[:HAS_MESSAGE]->(m)`,
    { sessionId: SESSION_ID, role: 'user', content: query },
    { database: MEMORY_DB }
  );
  return text;
}

Example output (two-turn demo):

[USER]: I am conducting a competitive analysis of 'Google'. I am specifically
        worried about their subsidiaries and top-tier competitors in the AI space.
[AGENT]: Understood. I've noted that we're tracking Google for competitive intelligence...
 [Hook] Saving interaction to Neo4j memory graph...

--- Indexing memory (5s)... ---

[USER]: What are the main risks in the supply chain for the company I am currently tracking?
 ↳ Injecting 1 memories into context.
   Memory 1: Conducting competitive analysis of Google — focused on subsidiaries and AI competitors...
[AGENT]: Based on our ongoing analysis of Google, the main supply chain risks include...

When to use: Multi-session agents that need to remember past queries, user context, or analysis state. Particularly useful for research assistants and monitoring agents.


4. NAMS Provider — @neo4j-labs/nams-ai-provider

NAMS is a hosted memory service backed by Neo4j. The @neo4j-labs/nams-ai-provider package wraps the Vercel AI SDK with persistent memory retrieval and storage — no self-managed Neo4j instance required for memory. It supports the same three modes as the demo:

npm install @neo4j-labs/nams-ai-provider

Provider mode (transparent — recommended starting point):

import { createNamsProvider } from '@neo4j-labs/nams-ai-provider';
import { openai } from '@ai-sdk/openai';
import { generateText, stepCountIs } from 'ai';

const model = createNamsProvider({
  apiKey:       process.env.MEMORY_API_KEY,
  baseProvider: openai,
  scope:        { userId: 'user-1', conversationId: 'session-1' },
}).languageModel('gpt-5.4-mini');

const { text } = await generateText({
  model,
  prompt:   'What were the Google supply-chain risks we discussed before?',
  tools:    mcpTools,         // optional — add MCP or custom tools
  stopWhen: stepCountIs(10),
});

Memory is retrieved and injected before each call and the turn is persisted after — no before/after hooks to write. The model sees memories as part of its system prompt context.

Tools mode (model-driven — visible reasoning trace):

import { createNams, enforceQueryMemory } from '@neo4j-labs/nams-ai-provider';
import { ToolLoopAgent, stepCountIs } from 'ai';   // ToolLoopAgent is v7+

const { tools, close } = await createNams({ apiKey: process.env.MEMORY_API_KEY })
  .toolsWithMcp(
    { userId: 'user-1', conversationId: 'session-1' },
    mcpConfig,   // optional — merges MCP tools alongside query_memory / store_memory
  );

const agent = new ToolLoopAgent({
  model:       openai('gpt-5.4-mini'),
  tools,
  prepareStep: enforceQueryMemory({ graceSteps: 2 }),  // forces read if model skips it
  stopWhen:    stepCountIs(10),
  onFinish:    async () => { await close(); },
});

const result = await agent.run('Which companies did Google invest in?');

enforceQueryMemory guarantees query_memory is called in the first steps. ensureStored() (used in the demo’s onFinish) closes the write-side gap for models that answer without calling store_memory.

Middleware mode:

import { createNams } from '@neo4j-labs/nams-ai-provider';

const nams  = createNams({ apiKey: process.env.MEMORY_API_KEY });
const model = nams.wrap(openai('gpt-5.4-mini'), { userId: 'user-1', conversationId: 'session-1' });

Identical to provider mode but applied to an already-resolved model instance — useful when the base model isn’t always the same provider.

When to use: Production agents that need cross-session memory without managing a dedicated Neo4j memory database. The demo (vercel_Nams_demo/) is the reference client for all three modes; the notebook (notebook/4-nams-provider-agent.mjs) is the minimal script version.


MCP Authentication

Supported Mechanisms:

HTTP Headers (HTTP transport) — Pass credentials via the headers parameter of createMCPClient. Used to authenticate per-request against neo4j-mcp-server running in HTTP mode.

const creds = Buffer.from(`${NEO4J_USERNAME}:${NEO4J_PASSWORD}`).toString('base64');

const mcpClient = await createMCPClient({
  transport: {
    type:    'http',
    url:     'http://localhost:8443/mcp',
    headers: { Authorization: `Basic ${creds}` },
  },
});

Important: Do not export NEO4J_USERNAME / NEO4J_PASSWORD as environment variables when running neo4j-mcp-server in HTTP mode — the server will pick them up for its own connection and the per-request auth will not work correctly. Pass credentials only via the Authorization header inside your JS code.

LLM Provider Configuration

All three agent files import getModel() from providers.mjs, which selects the LLM based on the AI_PROVIDER environment variable. No code changes are needed to switch providers.

Provider AI_PROVIDER API Key Variable Extra install

OpenAI (default)

openai

OPENAI_API_KEY

Google Gemini

google

GOOGLE_GENERATIVE_AI_API_KEY

npm install @ai-sdk/google

Anthropic Claude

anthropic

ANTHROPIC_API_KEY

npm install @ai-sdk/anthropic

Mistral

mistral

MISTRAL_API_KEY

npm install @ai-sdk/mistral

AI SDK Version Notes (v6 vs v7)

The notebook and demo target AI SDK v7 (ai@^7, @ai-sdk/mcp@^2). The table below summarises every breaking or renamed API from v6.

Area v6 v7

MCP client import

experimental_createMCPClient from @ai-sdk/mcp@^1

createMCPClient (stable) from @ai-sdk/mcp@^2

Multi-step control

stopWhen: stepCountIs(N) (replaces removed maxSteps)

stopWhen: stepCountIs(N) still works — stepCountIs is a literal alias for the new isStepCount export

Agentic loop class

Not available — use generateText with stopWhen

ToolLoopAgent class with prepareStep, onFinish, onStepFinish hooks

tool() generics (TypeScript)

tool<INPUT, OUTPUT>

tool<INPUT, OUTPUT, CONTEXT> — a two-arg call now binds to tool<INPUT, CONTEXT> and infers OUTPUT = never, surfacing as a type error on execute. Add the third param or drop explicit generics

@ai-sdk/mcp peer

ai@^5 / ai@^6

ai@^7

Upgrading from v6 scripts: replace experimental_createMCPClient with createMCPClient and bump @ai-sdk/mcp to ^2. No other changes are needed for the patterns shown here.

Challenges and Gaps

Area Detail

JavaScript only

The Vercel AI SDK has no Python support — all agent code runs in Node.js

`maxSteps` removed

Silently removed in AI SDK v6 — passing it does nothing. Use stopWhen: stepCountIs(N)

MCP transport type

neo4j-mcp-server HTTP mode requires type: 'http', not type: 'sse'

Memory DB (manual)

Extension Point 3 uses neo4j-driver directly — requires a separate writable Neo4j instance; Extension Point 4 (NAMS) removes this requirement

Edge runtime

Neo4j driver needs persistent TCP — incompatible with Vercel edge functions; use Node.js serverless runtime

NAMS `enforceQueryMemory`

Only guards the read side — use ensureStored() in onFinish to guarantee write-back when the model skips store_memory
