Circle Packing

Advanced Visualization

A circle packing chart will render hierarchical data in a group of nested circles. It takes two fields:

  • Path: a list of strings. This represents the hierarchy (from highest to lowest level).

  • Value: a number that matches the size of the element at the lowest level. Sizes of non-leaf levels are determined from the sum of their children.

Examples

Basic Circle Packing Chart

MATCH path=(:Company{name:'NeoDash'})-[:HAS_DEPARTMENT*]->(:Department)
WITH nodes(path) as no
WITH no, last(no) as leaf
WITH  [n IN no[..-1] | n.name] AS result, sum(leaf.employees) as val
RETURN result, val

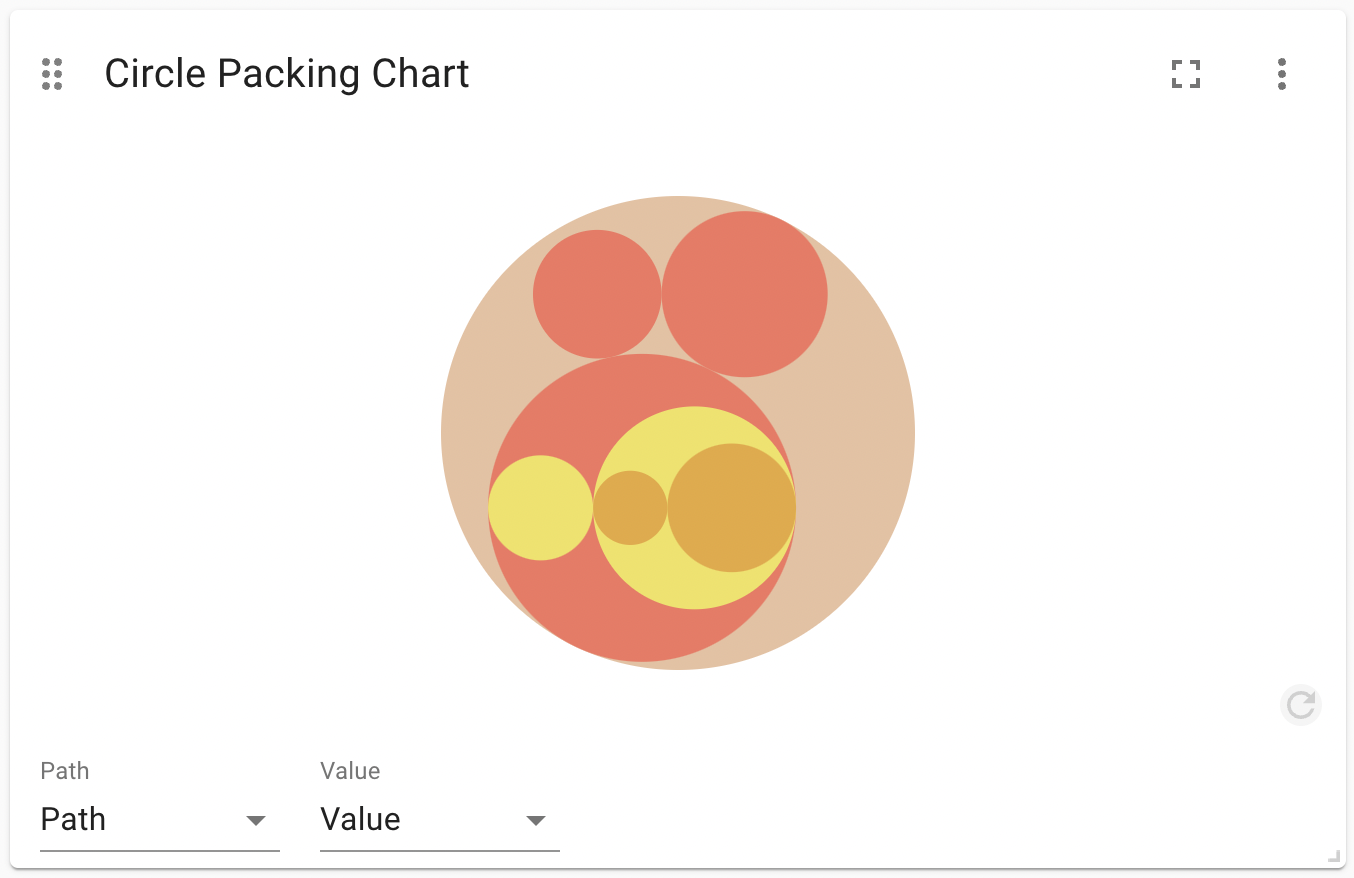

Circle Packing Chart

Advanced Settings

Name Type Default Value Description

Enable interactivity

on/off

on

If enabled, turn on animations when a user hovers over an circle.

Color Scheme

List

The color scheme to use for the circles. Colors are assigned automatically for each of the sub-hierarchies.

Circle border width (px)

number

0

The width of the border of each circle.

Margin Left (px)

number

24

The margin in pixels on the left side of the visualization.

Margin Right (px)

number

24

The margin in pixels on the right side of the visualization.

Margin Top (px)

number

24

The margin in pixels on the top side of the visualization.

Margin Bottom (px)

number

40

The margin in pixels on the bottom side of the visualization.

Auto-run query

on/off

on

When activated, automatically runs the query when the report is displayed. When set to `off', the query is displayed and will need to be executed manually.

Report Description

markdown text

When specified, adds another button the report header that opens a pop-up. This pop-up contains the rendered markdown from this setting.
