Export using Apache Arrow

The graphs in the Neo4j Graph Data Science Library support properties for nodes and relationships. One way to export those properties is using Cypher procedures, as documented in Streaming nodes and Streaming relationships. Similar to the procedures, GDS also supports exporting properties via Arrow Flight.

In this chapter, we assume that a Flight server has been set up and configured. To learn more about the installation, please refer to the installation chapter.

Arrow export features are versioned to allow for future changes. Please refer to the corresponding section in the Configure Apache Arrow server documentation for more details on versioned commands.

Arrow Ticket format

Flight streams to read properties from an in-memory graph are initiated by the Arrow client by calling the GET function and providing a Flight ticket. The general idea is to mirror the behaviour of the procedures for streaming properties from the in-memory graph. To identify the graph and the procedure that we want to mirror, the ticket must contain the following keys:

Name Type Description

graph_name

String

The name of the graph in the graph catalog.

database_name

String

The database the graph is associated with.

procedure_name

String

The mirrored property stream procedure.

configuration

Map

The procedure specific configuration.

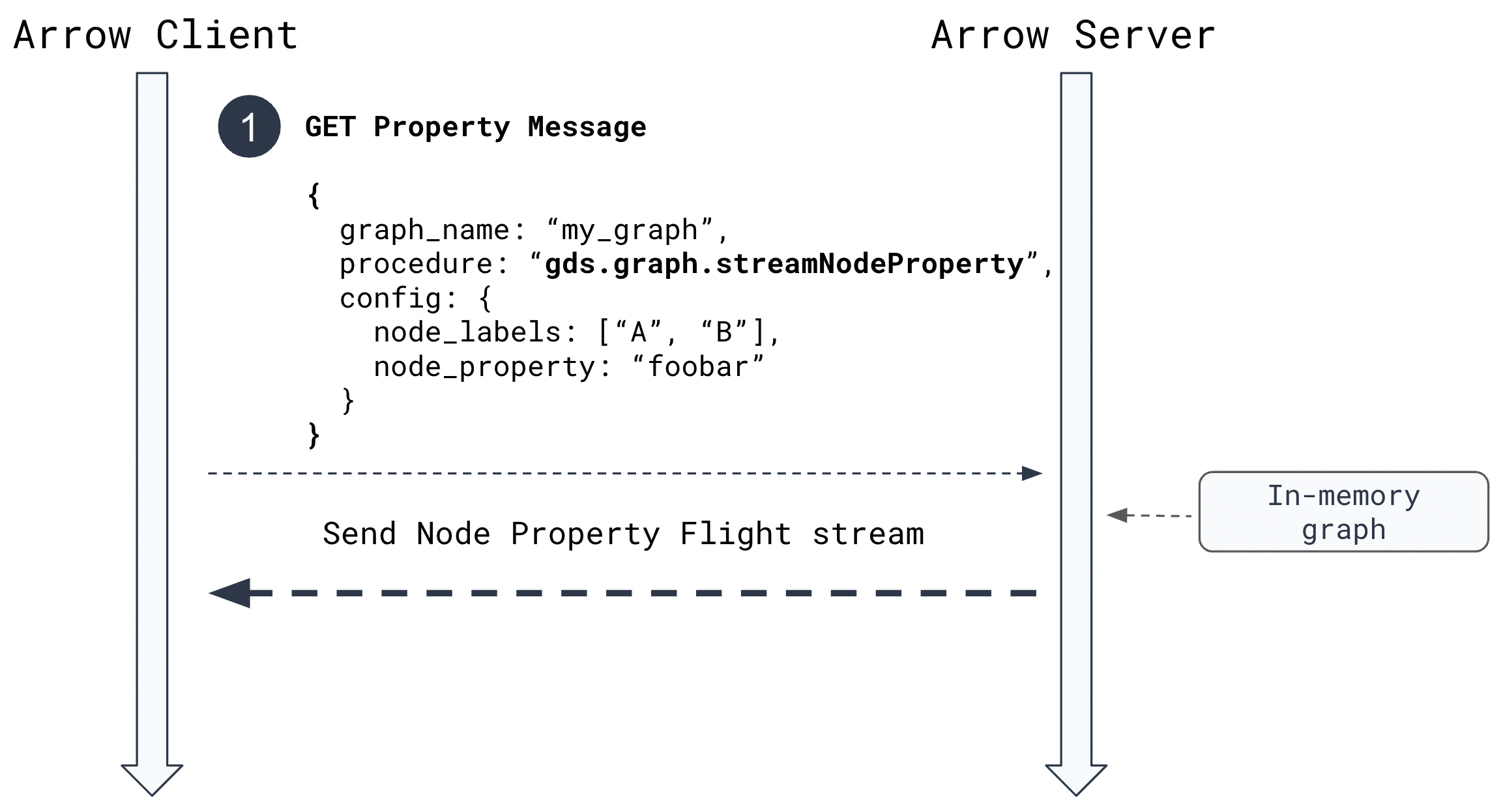

The following image shows the client-server interaction for exporting data using node property streaming as an example.

Client-server protocol for Arrow export in GDS

Stream all node labels

To stream node labels for each node in a graph, the client needs to provide the following ticket:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.nodeLabels.stream",
        configuration: {
            consecutive_ids: false
        }
    }
}

The specific command configuration supports the following keys:

Name Type Description

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false).

The schema of the result records is as follows:

Table 1. Results
Name Type Description

Optional

nodeId

Integer

The id of the node.

false

labels

List of Strings

The labels of the node.

false

Stream a single node property

To stream a single node property, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.nodeProperty.stream",
        configuration: {
            node_labels: ["*"],
            node_property: "foo",
            list_node_labels: true,
            consecutive_ids: false
        }
    }
}

The procedure_name indicates that we mirror the behaviour of the existing procedure. The specific configuration needs to include the following keys:

Name Type Description

node_labels

String or List of Strings

Stream only properties for nodes with the given labels.

node_property

String

The node property in the graph to stream.

list_node_labels

Boolean

Whether to include node labels of the respective nodes in the result.

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false) .

The schema of the result records is identical to the corresponding procedure:

Table 2. Results
Name Type Description Optional

nodeId

Integer

The id of the node.

false

propertyValue

  • Integer

  • Float

  • List of Integer

  • List of Float

The stored property value.

false

labels

List of Strings

The labels of the node. If the list_node_labels option was set

true

Stream multiple node properties

To stream multiple node properties, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.nodeProperties.stream",
        configuration: {
            node_labels: ["*"],
            node_properties: ["foo", "bar", "baz"],
            list_node_labels: true,
            consecutive_ids: false
        }
    }
}

The procedure_name indicates that we mirror the behaviour of the existing procedure. The specific configuration needs to include the following keys:

Name Type Description

node_labels

String or List of Strings

Stream only properties for nodes with the given labels.

node_properties

String or List of Strings

The node properties in the graph to stream.

list_node_labels

Boolean

Whether to include node labels of the respective nodes in the result.

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false).

Note that the schema of the result records is not identical to the corresponding procedure. Instead of a separate column containing the property key, every property is returned in its own column. As a result, there is only one row per node which includes all its property values.

For example, given the node (a { foo: 42, bar: 1337, baz: [1,3,3,7] }) and assuming node id 0 for a, the resulting record schema is as follows:

nodeId foo bar baz

0

42

1337

[1,3,3,7]

Stream a single relationship property

To stream a single relationship property, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationshipProperty.stream",
        configuration: {
            relationship_types: "REL",
            relationship_property: "foo",
            consecutive_ids: false
        }
    }
}

The procedure_name indicates that we mirror the behaviour of the existing procedure. The specific configuration needs to include the following keys:

Name Type Description

relationship_types

String or List of Strings

Stream only properties for relationships with the given type.

relationship_property

String

The relationship property in the graph to stream.

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false).

The schema of the result records is identical to the corresponding procedure:

Table 3. Results
Name Type Description

sourceNodeId

Integer

The source node id of the relationship.

targetNodeId

Integer

The target node id of the relationship.

relationshipType

Integer

Dictionary-encoded relationship type.

propertyValue

Float

The stored property value.

Note, that the relationship type column stores the relationship type encoded as an integer. The corresponding string value needs to be retrieved from the corresponding dictionary value vector. That vector can be loaded from the dictionary provider using the encoding id of the type field.

Stream multiple relationship properties

To stream multiple relationship properties, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationshipProperties.stream",
        configuration: {
            relationship_types: "REL",
            relationship_property: ["foo", "bar"],
            consecutive_ids: false
        }
    }
}

The procedure_name indicates that we mirror the behaviour of the existing procedure. The specific configuration needs to include the following keys:

Name Type Description

relationship_types

String or List of Strings

Stream only properties for relationships with the given type.

relationship_properties

String or List of String

The relationship properties in the graph to stream.

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false).

Note that the schema of the result records is not identical to the corresponding procedure. Instead of a separate column containing the property key, every property is returned in its own column. As a result, there is only one row per relationship which includes all its property values.

For example, given the relationship [:REL { foo: 42.0, bar: 13.37 }] that connects a source node with id 0 wit a target node with id 1, the resulting record schema is as follows:

Table 4. Results
sourceNodeId targetNodeId relationshipType foo bar

0

1

0

42.0

13.37

Note, that the relationship type column stores the relationship type encoded as an integer. The corresponding string value needs to be retrieved from the corresponding dictionary value vector. That vector can be loaded from the dictionary provider using the encoding id of the type field.

Stream relationship topology

To stream the topology of one or more relationship types, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationships.stream",
        configuration: {
            relationship_types: "REL",
            consecutive_ids: false
        }
    }
}

The procedure_name indicates that we mirror the behaviour of the existing procedure. The specific configuration needs to include the following keys:

Name Type Description

relationship_types

String or List of Strings

Stream only properties for relationships with the given type.

consecutive_ids

Boolean

Returns node ids mapped to a consecutive id space, i.e. [0..nodeCount) (default: false).

The schema of the result records is identical to the corresponding procedure:

Table 5. Results
sourceNodeId targetNodeId relationshipType

0

1

0

Note, that the relationship type column stores the relationship type encoded as an integer. The corresponding string value needs to be retrieved from the corresponding dictionary value vector. That vector can be loaded from the dictionary provider using the encoding id of the type field.

Partitioning the data streams

Some use-cases require the data streams to be partitioned. For example, if the data streams are consumed by a distributed system, the data streams need to be evenly distributed to the members of the distributed system. To support this use-case, the client can request the data streams to be partitioned by sending the stream request to the FlightInfo endpoint of the GDS Flight Server. The server will then return a number of endpoints, where each endpoint and it’s accompanying ticket can be used to stream a partition of the data. The concurrency settings of the ticket can be used to control the number of partitions.

For example, to stream the topology of one or more relationship types, the client needs to encode that information in the ticket as follows:

{
    name: "GET_COMMAND",
    version: "v1",
    body: {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationships.stream",
        concurrency: 2,
        configuration: {
            relationship_types: "REL"
        }
    }
}

This will create at most 2 partitions of the data streams. The server will answer with 2 tickets:

[
    {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationships.stream",
        concurrency: 4,
        partition_offset: 0,
        partition_size: 100,
        configuration: {
            relationship_types: "REL"
        }
    },
    {
        graph_name: "my_graph",
        database_name: "database_name",
        procedure_name: "gds.graph.relationships.stream",
        partition_offset: 100,
        partition_size: 100,
        concurrency: 4,
        configuration: {
            relationship_types: "REL"
        }
    }
]

Each of the tickets can now be used to request a partition data via the GET endpoint of the GDS Flight Server.
