Record and verify a failed tool call

Available on NAMS: Yes, with differences. NAMS supports this kind of memory, but not every call on this page: some steps run server-side, some calls take different arguments or return different shapes, and some are Bolt-only. Check the backend capabilities reference before you adapt a Bolt procedure.

To diagnose an unsuccessful tool action, create a trace, add the action as a step, record its error with ToolCallStatus, and complete the trace with a structured outcome. Read back the step and tool call to verify that the failure was retained.

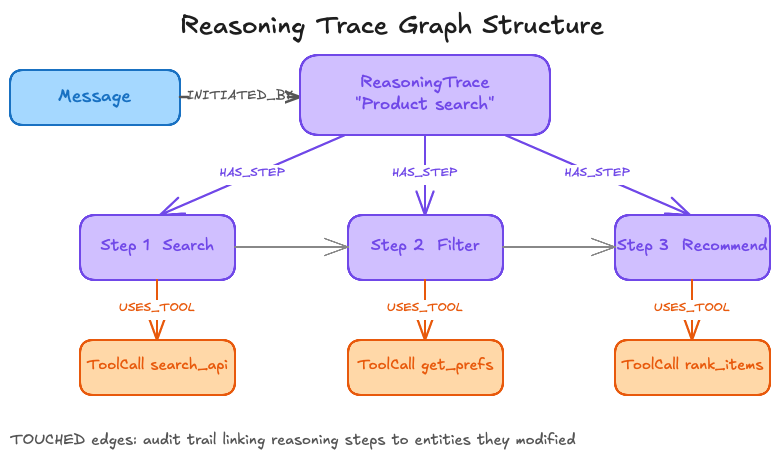

Trace links to a message and ordered steps with tool calls
Figure 1. A reasoning trace linked to a message and ordered steps with tool calls

For the rationale, see Understanding the three memory types.

This recipe targets Bolt, which persists the trace and its structured outcome. The Python NAMS client also accepts start_trace, add_step, record_tool_call, complete_trace, get_trace_with_steps and get_session_traces, with these differences in 0.7.0:

  • Pass the conversation ID that NAMS issued as session_id. Steps and tool calls are stored on that conversation; the trace itself, its task and its outcome exist only in the client instance that started it.

  • complete_trace sets success only from a success= keyword. Pass the outcome as a string: a TraceOutcome object makes the later get_trace_with_steps call fail validation.

  • record_tool_call does not send error, touched_entities or message_id.

  • list_traces, get_similar_traces, search_steps and get_tool_stats raise NotSupportedError.

See NAMS lifecycle and operations for each call’s hosted behavior.

1. Prepare the Bolt client

Use a dedicated AuraDB instance from the first memory tutorial’s Aura setup, with exported NEO4J_URI, NEO4J_USERNAME, and NEO4J_PASSWORD. Set OPENAI_API_KEY for the selected embedding provider. Prepare the example files below and install the provider extra:

Create a local folder and virtual environment for the examples on this page. The commands reuse an existing environment without changing its files:

mkdir -p ~/agent-memory-tutorials
cd ~/agent-memory-tutorials
if [ -e .venv ]; then
  printf '%s\n' 'Using the existing virtual environment.'
else
  python3 -m venv .venv
fi
source .venv/bin/activate

Expected: ~/agent-memory-tutorials is your working directory and its virtual environment is active. Install the published SDK with the command below.

Each complete code block labelled Save as names a file to create in this folder using your editor. Copy the entire block, including imports and the entry point. Expand each helper disclosure and use Copy code to copy its full source. Keep all files together so their imports resolve.

When continuing from another tutorial or guide, retain the existing environment, configuration, session files, and .tutorial-state/. Reuse unchanged helper files; compare an existing file before replacing it, and finish any pending cleanup or recovery before changing the code that owns its state.

python -m pip install 'neo4j-agent-memory[openai]==0.7.0'

The maintained program core_memory_recipes.py imports core_memory_settings.py from the same directory. That helper explicitly selects Bolt and disables automatic extraction/enrichment. Each command creates a new ID suffix so it can run independently. Embedding requests send example text to OpenAI.

These tasks use Python with Bolt, and not every call they make is portable to NAMS. On the hosted backend, preferences, facts, direct relationship writes, client-side deduplication configuration, add_messages_batch (use bulk_add_messages on NAMS), session listing and summaries, and reasoning search and statistics are unavailable: depending on the call, the client raises NotSupportedError, AttributeError or TypeError, or silently drops a Bolt-only option. Consult backend capabilities before adapting a task to NAMS.

Save the three complete files below in agent-memory-tutorials/. If a file already exists from another guide, keep its matching contents; do not replace configuration or state files. The task-specific excerpt in the next section explains the operation to run.

Open the helper below and save its complete source as aura_connection.py in ~/agent-memory-tutorials.

Show aura_connection.py
Save as aura_connection.py
"""Read the Aura connection exported by the documentation setup commands."""

import os


class AuraConfigurationError(ValueError):
    """Missing or invalid tutorial settings, with no credential values in errors."""


def aura_config():
    required = ("NEO4J_URI", "NEO4J_USERNAME", "NEO4J_PASSWORD")
    missing = [name for name in required if not os.environ.get(name, "").strip()]
    if missing:
        raise AuraConfigurationError("Export the Aura connection settings: " + ", ".join(missing))
    uri = os.environ["NEO4J_URI"]
    if not uri.startswith("neo4j+s://"):
        raise AuraConfigurationError("NEO4J_URI must use the Aura neo4j+s:// connection scheme")
    database = os.environ.get("NEO4J_DATABASE", "neo4j")
    if not database.strip():
        raise AuraConfigurationError("NEO4J_DATABASE must not be empty")
    return {
        "uri": uri,
        "username": os.environ["NEO4J_USERNAME"],
        "password": os.environ["NEO4J_PASSWORD"],
        "database": database,
    }
Complete core_memory_settings.py
Save as core_memory_settings.py
"""Shared settings for the three Aura-backed memory tutorials."""

from aura_connection import aura_config

from neo4j_agent_memory import MemorySettings


def settings():
    return MemorySettings(
        backend="bolt",
        neo4j=aura_config(),
        embedding="openai/text-embedding-3-small",
        llm=None,
        extraction={"extractor_type": "none"},
        resolution={"strategy": "none"},
        geocoding={"enabled": False},
        enrichment={"enabled": False},
    )
Complete core_memory_recipes.py
Save as core_memory_recipes.py
"""Independent Bolt how-to recipes; each command creates a distinct test dataset."""

import argparse
import asyncio
from datetime import datetime, timedelta, timezone
from uuid import uuid4

from core_memory_settings import settings

from neo4j_agent_memory import MemoryClient
from neo4j_agent_memory.core.memory import ToolCallStatus
from neo4j_agent_memory.memory.long_term import DeduplicationConfig, LongTermMemory
from neo4j_agent_memory.schema.models import EntityRef, TraceOutcome


# tag::messages[]
async def messages(client, run_id):
    session = f"docs-messages-{run_id}"
    # Explicit timestamps record when each turn happened; untimed rows are stamped in list order.
    start = datetime.now(timezone.utc)
    stored = await client.short_term.add_messages_batch(
        session,
        [
            {
                "role": "user",
                "content": "Please find wide walking shoes.",
                "metadata": {"topic": "shopping"},
                "timestamp": start.isoformat(),
            },
            {
                "role": "assistant",
                "content": "I will look for wide fits.",
                "timestamp": (start + timedelta(seconds=1)).isoformat(),
            },
        ],
        user_identifier=f"docs-user-{run_id}",
        extract_entities=False,
    )
    conversation = await client.short_term.get_conversation(session)
    assert [m.id for m in conversation.messages] == [m.id for m in stored]
    summary = await client.short_term.get_conversation_summary(
        session,
        include_entities=False,
        summarizer=lambda _transcript: "A shopper requested wide walking shoes.",
    )
    assert summary.message_count == 2
    print(summary.summary)
    # This semantic search is database-wide; it is not used for user-scoped readback.
    matches = await client.short_term.search_messages("wide walking shoes", threshold=0.0, limit=5)
    for message in matches:
        print(message.content, message.metadata.get("similarity"))
    print(f"Verified: ordered message IDs and summary count; session={session}")


# end::messages[]


# tag::entities[]
async def entities(client, run_id):
    person, _ = await client.long_term.add_entity(
        f"Maya {run_id}",
        "PERSON",
        aliases=[f"M. {run_id}"],
        description="An engineer at the fictional Northstar laboratory.",
        attributes={"team": "robotics"},
        resolve=False,
        deduplicate=False,
    )
    company, _ = await client.long_term.add_entity(
        f"Northstar {run_id}", "ORGANIZATION", resolve=False, deduplicate=False
    )
    edge = await client.long_term.add_relationship(person, company, "WORKS_AT", confidence=1.0)
    fact = await client.long_term.add_fact(person.name, "works_at", company.name)
    assert fact.as_triple == (person.name, "works_at", company.name)
    rows = await client.query.cypher(
        "MATCH (a:Entity {id: $source})-[r:RELATED_TO {id: $edge}]->(b:Entity) "
        "RETURN a.name AS source, r.type AS relation, b.name AS target",
        {"source": str(person.id), "edge": str(edge.id)},
    )
    assert rows == [{"source": person.name, "relation": "WORKS_AT", "target": company.name}]
    facts = await client.long_term.get_facts_about(person.name)
    assert any(item.as_triple == fact.as_triple for item in facts)
    print(f"Verified: entity relationship and fact readback; person={person.id}")


# end::entities[]


# tag::preferences[]
async def preferences(client, run_id):
    user = f"docs-preference-user-{run_id}"
    product, _ = await client.long_term.add_entity(
        f"Walking shoes {run_id}",
        "OBJECT",
        subtype="PRODUCT",
        generate_embedding=False,
        resolve=False,
        deduplicate=False,
    )
    scope = EntityRef(id=str(product.id))
    # Disable embedding-based global preference dedupe for independent user revisions.
    old = await client.long_term.add_preference(
        "budget",
        "Spend at most USD 60",
        user_identifier=user,
        applies_to=[scope],
        generate_embedding=False,
        context="Explicit user statement",
    )
    replacement = await client.long_term.add_preference(
        "budget",
        "Spend at most USD 80",
        user_identifier=user,
        applies_to=[scope],
        generate_embedding=False,
        context="Explicit user revision",
    )
    await client.long_term.supersede_preference(old.id, replacement.id)
    active = await client.long_term.get_preferences_for(user, applies_to=scope)
    historical = await client.long_term.get_preferences_for(user, active_only=False)
    assert [p.id for p in active] == [replacement.id]
    assert {p.id for p in historical} == {old.id, replacement.id}
    context = "\n".join(f"{p.category}: {p.preference}" for p in active)
    print(context)
    print(f"Verified: current preference and retained history; user={user}")


# end::preferences[]


# tag::reasoning[]
async def reasoning(client, run_id):
    session = f"docs-trace-{run_id}"
    trace = await client.reasoning.start_trace(session, "Check a deliberately unavailable product")
    step = await client.reasoning.add_step(trace.id, action="lookup_product")
    try:
        raise LookupError("The fictional product is unavailable")
    except LookupError as error:
        await client.reasoning.record_tool_call(
            step.id,
            "lookup_product",
            {"sku": "missing-example-sku"},
            status=ToolCallStatus.ERROR,
            error=str(error),
            duration_ms=0,
        )
        await client.reasoning.complete_trace(
            trace.id,
            outcome=TraceOutcome(success=False, summary=str(error), error_kind="no_results"),
        )
    saved = await client.reasoning.get_trace_with_steps(trace.id)
    assert saved is not None and saved.success is False
    assert len(saved.steps) == 1 and len(saved.steps[0].tool_calls) == 1
    assert saved.steps[0].tool_calls[0].status == ToolCallStatus.ERROR
    print(f"Verified: failed tool call and completed failure trace; trace={trace.id}")


# end::reasoning[]


# tag::deduplication[]
async def deduplication(client, run_id):
    store = LongTermMemory(
        client.graph,
        embedder=client.long_term.embedder,
        # The same bands MemoryClient applies from ResolutionConfig (0.90 merge, 0.85 review).
        deduplication=DeduplicationConfig(
            auto_merge_threshold=0.90, flag_threshold=0.85, use_fuzzy_matching=False
        ),
    )
    # Create an isolated pair without similarity-based merging so manual review is reproducible.
    target, _ = await store.add_entity(
        f"Northstar Laboratory {run_id}", "ORGANIZATION", resolve=False, deduplicate=False
    )
    source, _ = await store.add_entity(
        f"Northstar Lab {run_id}", "ORGANIZATION", resolve=False, deduplicate=False
    )
    # The application has established that this specific pair denotes the same organization.
    merged = await store.merge_duplicate_entities(source.id, target.id)
    assert merged is not None
    rows = await client.query.cypher(
        "MATCH (s:Entity {id: $source}), (t:Entity {id: $target}) "
        "RETURN s.merged_into AS merged_into, t.aliases AS aliases",
        {"source": str(source.id), "target": str(target.id)},
    )
    assert rows[0]["merged_into"] == str(target.id)
    assert source.name in rows[0]["aliases"]
    stats = await store.get_deduplication_stats()
    print(f"Verified: reviewed pair merged into {target.id}; merged nodes={stats.merged_entities}")


# end::deduplication[]


# tag::audit[]
async def audit(client, run_id):
    session = f"docs-audit-{run_id}"
    client_name = f"Anthem {run_id}"
    consultant_name = f"Sara {run_id}"
    trace = await client.reasoning.start_trace(session, "Recommend a consulting team")
    step = await client.reasoning.add_step(trace.id, action="recommend_team")
    await client.reasoning.record_tool_call(
        step.id,
        tool_name="recommend_team",
        arguments={"client_name": client_name},
        result=[{"consultant": consultant_name}],
        touched_entities=[
            EntityRef(name=client_name, type="CLIENT"),
            EntityRef(name=consultant_name, type="PERSON"),
        ],
    )
    await client.reasoning.complete_trace(
        trace.id,
        outcome=TraceOutcome(success=True, summary="Matched one consultant"),
    )
    rows = await client.query.cypher(
        "MATCH (:Entity {name: $client_name})<-[:TOUCHED]-(s:ReasoningStep)"
        "<-[:HAS_STEP]-(rt:ReasoningTrace) "
        "RETURN rt.task AS task, s.action AS action, rt.outcome AS outcome",
        {"client_name": client_name},
    )
    assert rows == [
        {"task": trace.task, "action": "recommend_team", "outcome": "Matched one consultant"}
    ]
    print(f"Verified: touched-entity audit query found the trace; client={client_name}")


# end::audit[]


async def main():
    commands = {
        "messages": messages,
        "entities": entities,
        "preferences": preferences,
        "reasoning": reasoning,
        "deduplication": deduplication,
        "audit": audit,
    }
    parser = argparse.ArgumentParser()
    parser.add_argument("command", choices=commands)
    args = parser.parse_args()
    async with MemoryClient(settings()) as client:
        await commands[args.command](client, uuid4().hex[:8])


if __name__ == "__main__":
    asyncio.run(main())

2. Apply the task function

Start a trace, record a step and its tool call, then complete the trace with a structured outcome. The deliberately unavailable product gives a reproducible failure path. The trace stores application actions, tool arguments, errors, and outcomes. It does not require or expose a model’s private reasoning.

On success, the pattern is the same: call record_tool_call with the default status=ToolCallStatus.SUCCESS and the tool’s actual result, then finish with complete_trace(trace.id, outcome=TraceOutcome(success=True, summary=…​)). The chatbot tutorial runs that successful path end-to-end; this recipe isolates the failure path because it is the branch application code most often gets wrong.

The function below is included from the complete maintained program, which already supplies imports, client setup, unique IDs, and asyncio.run. Run the file in step 3; this extract is not a separate top-level script.

async def reasoning(client, run_id):
    session = f"docs-trace-{run_id}"
    trace = await client.reasoning.start_trace(session, "Check a deliberately unavailable product")
    step = await client.reasoning.add_step(trace.id, action="lookup_product")
    try:
        raise LookupError("The fictional product is unavailable")
    except LookupError as error:
        await client.reasoning.record_tool_call(
            step.id,
            "lookup_product",
            {"sku": "missing-example-sku"},
            status=ToolCallStatus.ERROR,
            error=str(error),
            duration_ms=0,
        )
        await client.reasoning.complete_trace(
            trace.id,
            outcome=TraceOutcome(success=False, summary=str(error), error_kind="no_results"),
        )
    saved = await client.reasoning.get_trace_with_steps(trace.id)
    assert saved is not None and saved.success is False
    assert len(saved.steps) == 1 and len(saved.steps[0].tool_calls) == 1
    assert saved.steps[0].tool_calls[0].status == ToolCallStatus.ERROR
    print(f"Verified: failed tool call and completed failure trace; trace={trace.id}")

3. Run and verify

python core_memory_recipes.py reasoning

Expected: Verified: failed tool call and completed failure trace; trace=…​. The program confirms success=False and the persisted tool-call status error; an expected tool failure is the successful verification outcome for this task.

The command retains its example records for inspection. Remove the disposable tutorial database using that tutorial’s cleanup command when finished. Do not substitute an unrestricted delete query against an existing database.

Complete every started trace

Always pair a started trace with a matching complete_trace call, whichever way the tool action goes. In real tool code, wrap the actual operation in try/except, record the appropriate ToolCallStatus, and call complete_trace on success and failure paths. record_tool_call accepts status, error, and integer duration_ms; it has no success keyword. complete_trace accepts an outcome string or TraceOutcome; it has no error keyword.

The chatbot tutorial provides a complete success path and completion after a failed model request. Optional triggered_by_message_id creates an INITIATED_BY link. On Bolt, use touched_entities/EntityRef for explicit action provenance, and async hooks for follow-up writes.

Inspect recorded outcomes

Use get_trace_with_steps(trace_id) and inspect trace.steps and step.tool_calls. Use get_session_traces for a known session. On Bolt, use list_traces for supported filters and get_similar_traces for ranked candidates. There are no get_steps, get_tool_calls, get_traces, search_traces, or delete_trace wrappers.

Similarity is stored in trace metadata; search_steps returns result wrappers with step and parent-task information. A similar successful trace is evidence for the application to assess, not proof that a new action will succeed. For evaluation and pruning, follow memory evaluation and reasoning audit tasks. Exact filters and hooks are in the reasoning reference.

These are the maintained method names on each SDK’s client (client.<layer> in Python, client.<camelCaseLayer> in TypeScript), not a support matrix — the TypeScript SDK talks to the hosted NAMS REST backend only, so confirm an operation is exposed there in backend capabilities before assuming parity with a Bolt-connected Python client.

Table 1. Short-term memory: client.short_term / client.shortTerm
Python TypeScript

add_message

addMessage

bulk_add_messages

bulkAddMessages

get_conversation

getConversation

search_messages

searchMessages

list_sessions

listSessions

clear_session

clearSession

On a Bolt-connected Python client, bulk_add_messages forwards to add_messages_batch, the Bolt-only form that also accepts batch_size and on_progress. The NAMS Python client has only bulk_add_messages.

Table 2. Long-term memory: client.long_term / client.longTerm
Python TypeScript

add_entity

addEntity

search_entities

searchEntities

get_entity_by_name

getEntityByName

add_relationship

addRelationship

get_related_entities

getRelatedEntities

add_preference

addPreference

search_preferences

searchPreferences

add_fact

addFact

merge_duplicate_entities

mergeDuplicateEntities
Table 3. Reasoning memory: client.reasoning / client.reasoning
Python TypeScript

start_trace

startTrace

add_step

addStep

record_tool_call

recordToolCall

complete_trace

completeTrace

get_trace_with_steps

getTraceWithSteps

list_traces

listTraces

get_similar_traces

getSimilarTraces
