Snowflake Cortex - Snowsight

This guide builds the overview stack by hand in Snowsight. The result is a Cortex agent that combines customer accounts in Snowflake with the Neo4j companies demo graph. Sample 1 creates the same stack with Terraform.

You can also watch this guide step by step on YouTube.

What you build

Step Object What it is

Step	Object	What it is
1. Database and schema	`NEO4J_AGENT`, `NEO4J_AGENT_SCHEMA`	All other objects live in them.
2. Role	`USER`	For people who chat with the agent.
4. Secret	`NEO4J_CREDENTIALS`	Holds the Neo4j login.
5. Network rule	`NEO4J_ACCESS_RULE`	Allows traffic to Neo4j.
6. External access integration	`NEO4J_ACCESS_INTEGRATION`	Gives UDFs the network rule and the secret.
7. Model stage	`MODEL_STAGE`	Holds the `all-MiniLM-L6-v2` model files.
8. Python UDFs	`QUERY_NEO4J`, `GENERATE_EMBEDDINGS`	One runs read-only Cypher, the other turns text into a vector.
9. Tool functions	`FIND_ORGANIZATIONS`, `GET_ORGANIZATION_INVESTORS`, `ANALYZE_RELATIONSHIPS`, `SEARCH_NEWS_ARTICLES`	SQL functions. They are the agent’s fixed Neo4j tools.
10. Customer accounts	`CUSTOMER_ACCOUNTS`, `CUSTOMER_ACCOUNTS_SV`	Sample CRM data and a semantic view on it. The agent’s Snowflake tool reads them.
11. Agent	`NEO4J_RESEARCH_AGENT`	The Cortex agent.

1. Database and schema

NEO4J_AGENT, NEO4J_AGENT_SCHEMA

All other objects live in them.

2. Role

USER

For people who chat with the agent.

4. Secret

NEO4J_CREDENTIALS

Holds the Neo4j login.

5. Network rule

NEO4J_ACCESS_RULE

Allows traffic to Neo4j.

6. External access integration

NEO4J_ACCESS_INTEGRATION

Gives UDFs the network rule and the secret.

7. Model stage

MODEL_STAGE

Holds the all-MiniLM-L6-v2 model files.

8. Python UDFs

QUERY_NEO4J, GENERATE_EMBEDDINGS

One runs read-only Cypher, the other turns text into a vector.

9. Tool functions

FIND_ORGANIZATIONS, GET_ORGANIZATION_INVESTORS, ANALYZE_RELATIONSHIPS, SEARCH_NEWS_ARTICLES

SQL functions. They are the agent’s fixed Neo4j tools.

10. Customer accounts

CUSTOMER_ACCOUNTS, CUSTOMER_ACCOUNTS_SV

Sample CRM data and a semantic view on it. The agent’s Snowflake tool reads them.

11. Agent

NEO4J_RESEARCH_AGENT

The Cortex agent.

Before you start

You need a Snowflake account with the ACCOUNTADMIN role and a warehouse. X-Small is enough.
The guide uses the public Neo4j demo database neo4j+s://demo.neo4jlabs.com:7687. Its login is companies/companies.
Download the model files into ./minilm:

  pip install sentence-transformers
  python3 -c "from sentence_transformers import SentenceTransformer; SentenceTransformer('all-MiniLM-L6-v2').save('./minilm')"

Create a workspace SQL file for the SQL statements: Projects > Workspaces > + Add new > SQL file. Select your warehouse in it.

Each UI step also shows the SQL that does the same. Use one or the other.

1. Database and schema

Go to Catalog > Databases, click + Database, enter NEO4J_AGENT and click Create.
Open NEO4J_AGENT, click + Schema, enter NEO4J_AGENT_SCHEMA and click Create.

Or use SQL:

CREATE DATABASE IF NOT EXISTS NEO4J_AGENT;
CREATE SCHEMA IF NOT EXISTS NEO4J_AGENT.NEO4J_AGENT_SCHEMA;

2. Role

People who chat with the agent get their own role, so they don’t need ACCOUNTADMIN.

Go to Governance & security > Users & roles, open the Roles tab, click + Role, enter USER and click Create Role.
Click the USER row, click Grant to User, pick your user and click Grant.
Reload Snowsight. Role pickers show USER only after a reload.

Or use SQL:

CREATE ROLE IF NOT EXISTS "USER";
GRANT ROLE "USER" TO USER <your_user>;  -- SELECT CURRENT_USER();

3. Grants

Go to Catalog > Databases > NEO4J_AGENT and open the Access tab. Click + Privilege, pick role USER and privilege USAGE, and click Grant privileges.
On the Overview tab, open NEO4J_AGENT_SCHEMA and its Access tab. Click + Privilege, pick role USER and the privileges USAGE and USAGE - FUTURE FUNCTION, and click Grant privileges. Type in the list to filter it.
Grant USAGE on your warehouse as well, because the agent’s tools run on the user’s default warehouse. Use the warehouse’s privileges page or the SQL below.

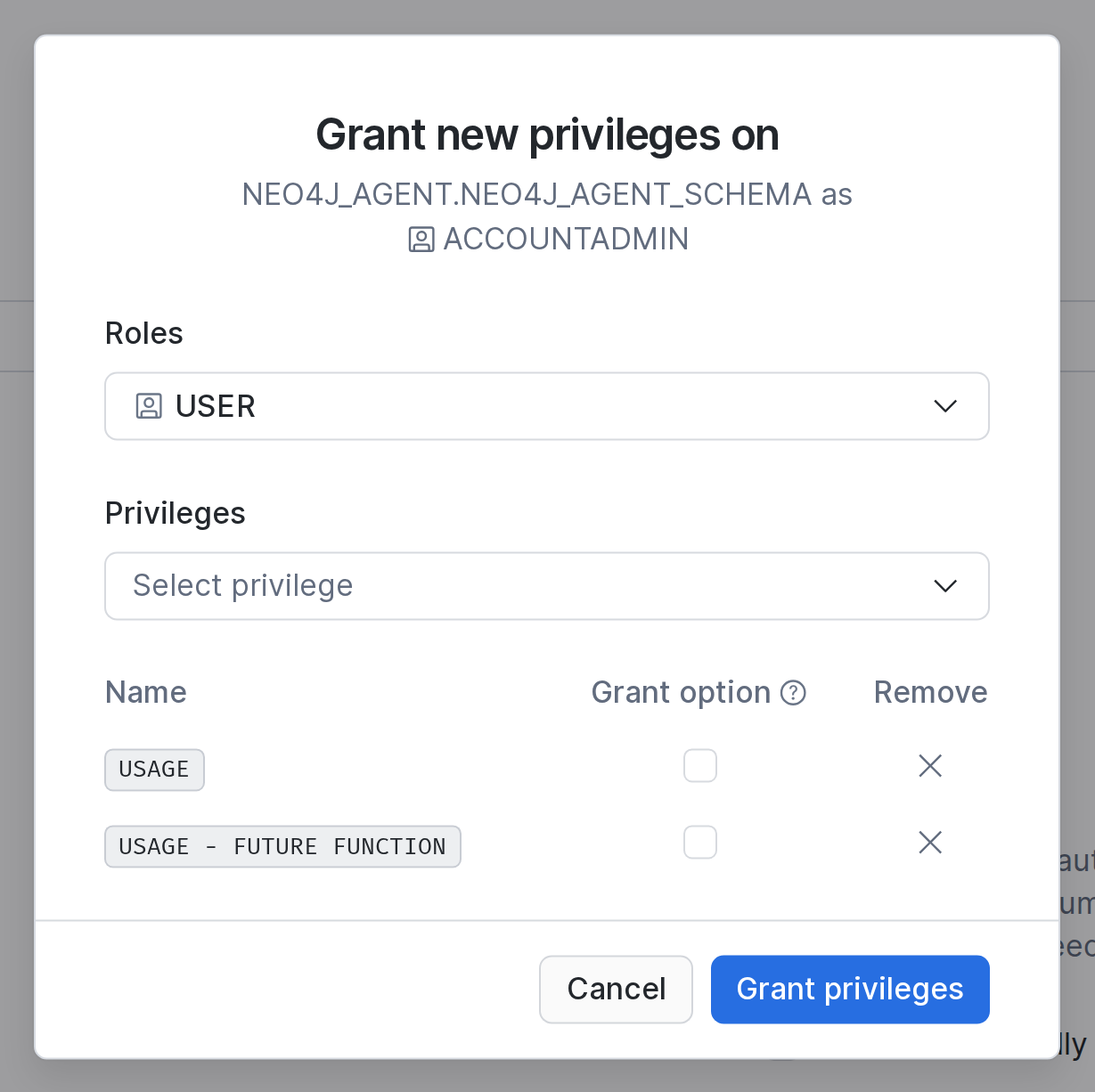

Grant dialog: role USER with USAGE and USAGE - FUTURE FUNCTION

The future grant covers every function that you create in the schema later. That includes QUERY_NEO4J, which the agent calls directly, and the helper GENERATE_EMBEDDINGS. The Terraform sample grants only the functions that the agent calls.

Or use SQL:

GRANT USAGE ON DATABASE NEO4J_AGENT TO ROLE "USER";
GRANT USAGE ON SCHEMA NEO4J_AGENT.NEO4J_AGENT_SCHEMA TO ROLE "USER";
GRANT USAGE ON FUTURE FUNCTIONS IN SCHEMA NEO4J_AGENT.NEO4J_AGENT_SCHEMA TO ROLE "USER";
GRANT USAGE ON WAREHOUSE <warehouse> TO ROLE "USER";

Check the result:

SHOW GRANTS TO ROLE "USER";
SHOW FUTURE GRANTS IN SCHEMA NEO4J_AGENT.NEO4J_AGENT_SCHEMA;

4. Secret

This step is SQL only, because Snowsight has no dialog for secrets. companies/companies is the public login of the demo database.

CREATE OR REPLACE SECRET NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_CREDENTIALS
  TYPE     = PASSWORD
  USERNAME = 'companies'
  PASSWORD = 'companies';

5. Network rule

Snowflake blocks outbound traffic by default. The network rule allows one host and port.

Go to Governance & security > Network policies, open the Network Rules tab and click + Network Rule.
Enter the name NEO4J_ACCESS_RULE, pick the location NEO4J_AGENT.NEO4J_AGENT_SCHEMA, the type Host port and the mode Egress. Egress is the default.
Enter demo.neo4jlabs.com:7687 under Host:port and click +. The host must then appear in the list below.
Click Create.

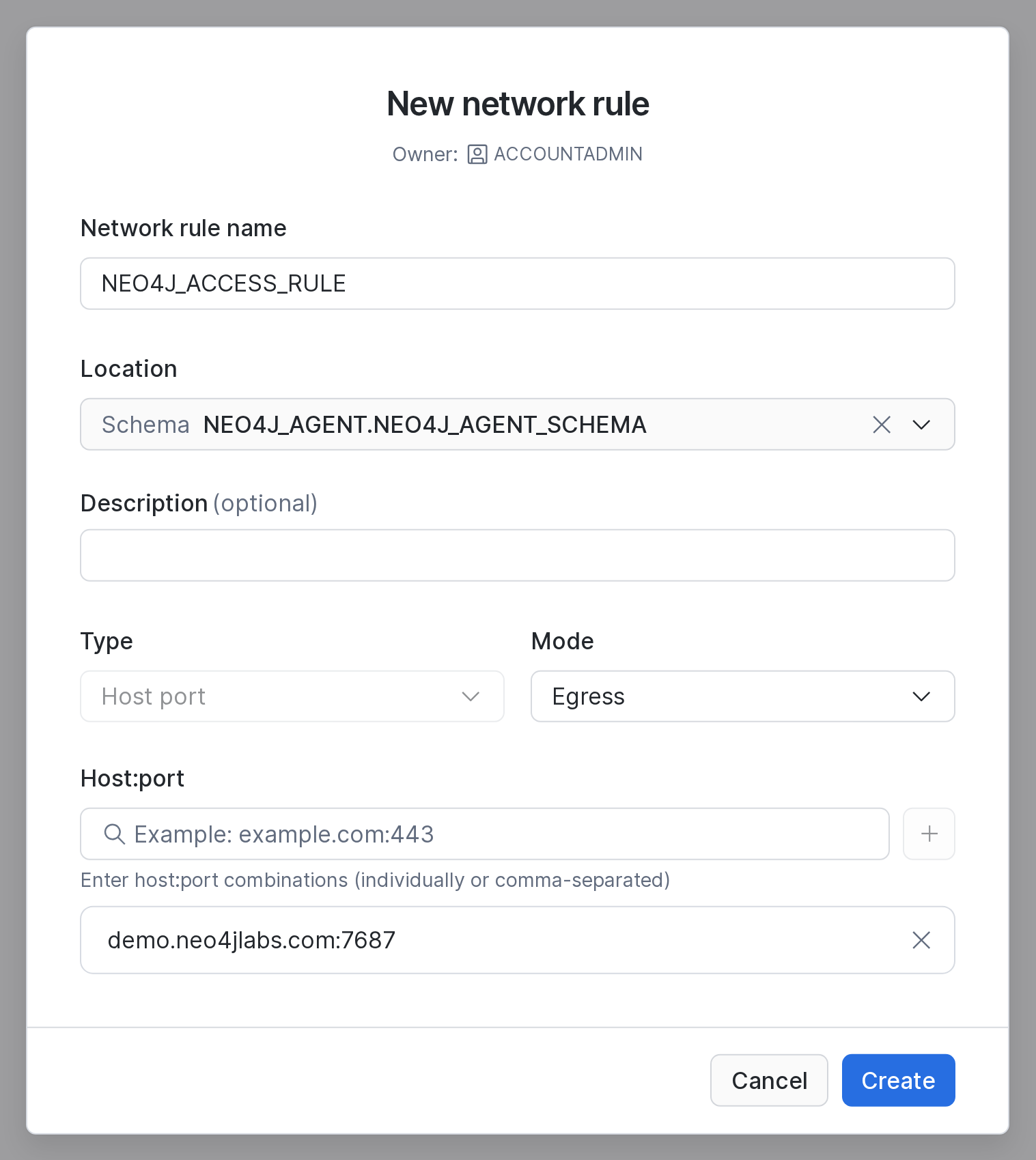

New network rule dialog with demo.neo4jlabs.com:7687 in the host list

Or use SQL:

CREATE NETWORK RULE NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_ACCESS_RULE
  MODE = EGRESS
  TYPE = HOST_PORT
  VALUE_LIST = ('demo.neo4jlabs.com:7687');

To use your own Neo4j, change the host here. Also change the URI and the database name in QUERY_NEO4J.

6. External access integration

This step is SQL only. The integration combines the network rule and the secret. A UDF can reach only the hosts and secrets that its integration allows. The integration is an account-level object, so you need ACCOUNTADMIN or the CREATE INTEGRATION privilege.

CREATE OR REPLACE EXTERNAL ACCESS INTEGRATION NEO4J_ACCESS_INTEGRATION
  ALLOWED_NETWORK_RULES          = (NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_ACCESS_RULE)
  ALLOWED_AUTHENTICATION_SECRETS = (NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_CREDENTIALS)
  ENABLED                        = TRUE;

7. Model stage

The article chunks in the graph have embedding_sbert vectors with 384 dimensions. They were made with all-MiniLM-L6-v2. To search them, Snowflake must embed the search text with the same model.

Go to Catalog > Databases > NEO4J_AGENT > NEO4J_AGENT_SCHEMA and click Create > Stage > Snowflake Managed.
Enter the name MODEL_STAGE, switch on Directory table and pick Client-side encryption. You can’t change the encryption later, and Create stays disabled until you pick one. Click Create.
Click Upload Files, add the files directly in minilm/, enter the path minilm and click Upload. The files are about 90 MB.
Upload minilm/1_Pooling/config.json the same way, with the path minilm/1_Pooling. The dialog takes one folder per upload. You can skip 2_Normalize/, because it is empty.

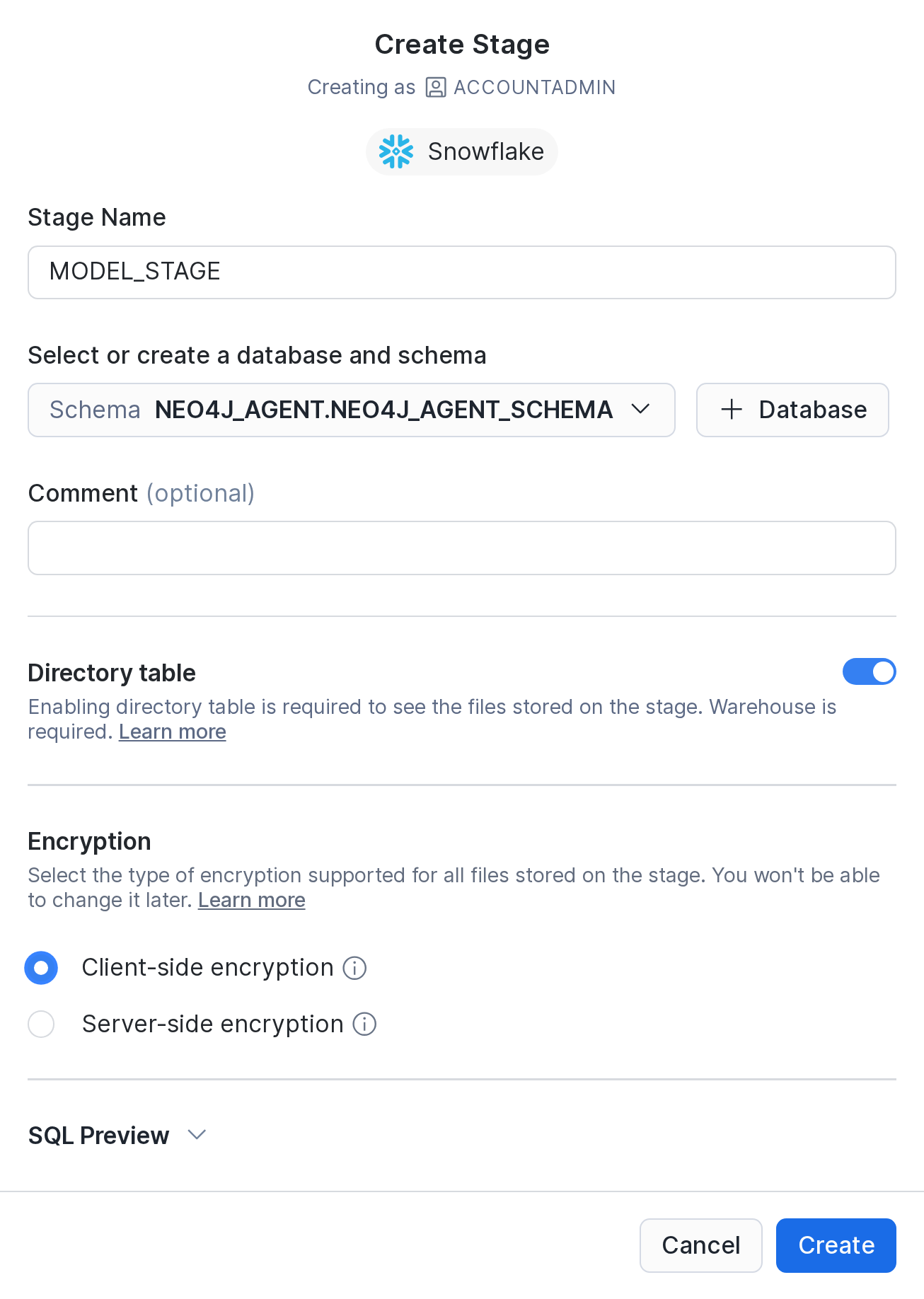

Create Stage dialog: MODEL_STAGE, directory table on, client-side encryption

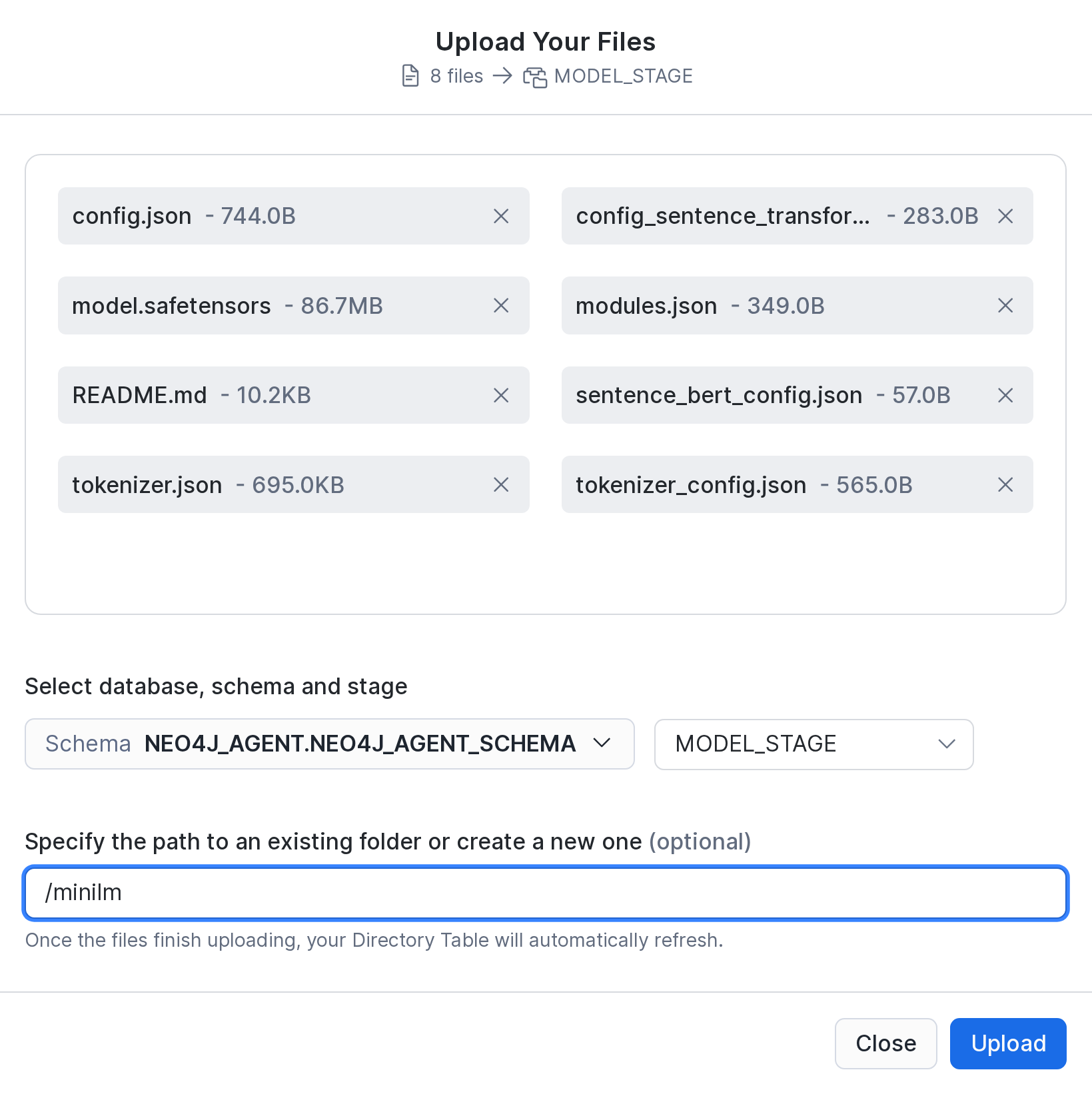

Upload dialog with the model files and the path minilm

Or use SQL. The upload uses the Snowflake CLI; run it in the folder that contains minilm/:

CREATE STAGE NEO4J_AGENT.NEO4J_AGENT_SCHEMA.MODEL_STAGE
  ENCRYPTION = (TYPE = 'SNOWFLAKE_FULL')
  DIRECTORY = (ENABLE = TRUE);

snow stage copy minilm @NEO4J_AGENT.NEO4J_AGENT_SCHEMA.MODEL_STAGE/minilm --recursive --overwrite --no-auto-compress

Upload the files uncompressed. Snowflake can’t load gzipped model files.

Check that the list includes minilm/model.safetensors and minilm/1_Pooling/config.json:

LIST @NEO4J_AGENT.NEO4J_AGENT_SCHEMA.MODEL_STAGE/minilm;

8. Python UDFs

Run both statements in the workspace. Each one builds its package environment, which takes about a minute.

QUERY_NEO4J(cypher[, params]) runs read-only Cypher against Neo4j. It returns the records as a VARIANT.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J(CYPHER VARCHAR, PARAMS OBJECT DEFAULT {})
RETURNS VARIANT
LANGUAGE PYTHON
RUNTIME_VERSION = 3.13
PACKAGES = ('neo4j', 'sentence-transformers')
IMPORTS  = ('@NEO4J_AGENT.NEO4J_AGENT_SCHEMA.MODEL_STAGE/minilm/')
EXTERNAL_ACCESS_INTEGRATIONS = (NEO4J_ACCESS_INTEGRATION)
SECRETS = ('cred' = NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_CREDENTIALS)
HANDLER = 'query_neo4j'
COMMENT = 'Executes a read-only Cypher query against the Neo4j database'
AS $$
from neo4j import GraphDatabase, RoutingControl
import math
import re
import socket
import _snowflake

# Snowflake reuses the UDF's process across calls, so all calls share one driver.
# The connection closes when the process ends.
_driver = None

# EXPLAIN reports these calls as reads, but they reach beyond the graph:
# files, URLs, dynamic Cypher and DBMS internals.
DENIED = re.compile(
    r"\bLOAD\s+CSV\b|\bapoc\.(load|import|export|cypher|periodic|trigger|systemdb)\b|\bdbms\.",
    re.IGNORECASE,
)


def get_driver():
    global _driver
    if _driver is None:
        credentials = _snowflake.get_username_password('cred')
        _driver = GraphDatabase.driver(
            "neo4j+s://demo.neo4jlabs.com:7687",
            auth=(credentials.username, credentials.password)
        )
    return _driver


def execute(cypher, params):
    # In READ access mode, the server rejects any write.
    return get_driver().execute_query(
        cypher,
        parameters_=params,
        database_="companies",
        routing_=RoutingControl.READ
    )


def query_neo4j(cypher, params):
    from neo4j.time import DateTime, Date, Time, Duration

    def serialize_neo4j(obj):
        if isinstance(obj, (DateTime, Date, Time, Duration)):
            return obj.iso_format()
        if isinstance(obj, float) and math.isnan(obj):
            return None  # NaN is not valid JSON. Some Article.sentiment values are NaN.
        if isinstance(obj, list):
            return [serialize_neo4j(i) for i in obj]
        if isinstance(obj, dict):
            return {k: serialize_neo4j(v) for k, v in obj.items()}
        return obj

    # Errors are returned, not raised, so the agent can read them and fix its query.
    if DENIED.search(cypher):
        return {"error": "Rejected: LOAD CSV, dbms.* and apoc.load/import/export/cypher/periodic/trigger/systemdb are not allowed."}
    try:
        _, plan, _ = execute("EXPLAIN " + cypher, params)
        if plan.query_type != "r":
            return {"error": f"Rejected: only read-only queries are allowed, this one is of type '{plan.query_type}'."}
        records, summary, keys = execute(cypher, params)
        return [serialize_neo4j(record.data()) for record in records] if records else []
    except (socket.gaierror, ValueError) as e:
        return {"error": f"Could not resolve Neo4j address: {str(e)}"}
    except Exception as e:
        return {"error": f"Neo4j query failed: {str(e)}"}
$$;

Without EXTERNAL_ACCESS_INTEGRATIONS, Snowflake blocks every outbound connection.
SECRETS = ('cred' = …) gives the code the secret. The code reads the login with get_username_password('cred'), so the login never appears in the source.
IMPORTS points to the model stage. Only GENERATE_EMBEDDINGS needs it, but identical settings let both UDFs share one Python runtime.
To use your own Neo4j, change neo4j+s://demo.neo4jlabs.com:7687 and database_="companies". The code creates the driver once per Python process.
PARAMS is optional (DEFAULT {}). The agent’s query_neo4j tool passes only the Cypher, because custom tools can’t pass OBJECT arguments.
DENIED, EXPLAIN and routing_=RoutingControl.READ make sure that every query is a read. See Free-form Cypher. A rejected query returns {"error": …}.

GENERATE_EMBEDDINGS(input_text) loads the model from the stage. It returns a vector with 384 numbers.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GENERATE_EMBEDDINGS(INPUT_TEXT VARCHAR)
RETURNS VARIANT
LANGUAGE PYTHON
RUNTIME_VERSION = 3.13
PACKAGES = ('neo4j', 'sentence-transformers')
IMPORTS  = ('@NEO4J_AGENT.NEO4J_AGENT_SCHEMA.MODEL_STAGE/minilm/')
EXTERNAL_ACCESS_INTEGRATIONS = (NEO4J_ACCESS_INTEGRATION)
SECRETS = ('cred' = NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_CREDENTIALS)
HANDLER = 'generate_embeddings'
COMMENT = 'Embedding function using sentence transformers'
AS $$
import os
import sys

# Snowflake reuses the UDF's process across calls, so the model loads only once.
_model = None


def get_model():
    global _model
    if _model is None:
        from sentence_transformers import SentenceTransformer
        # noinspection PyTypeChecker
        import_dir: str = sys._xoptions.get('snowflake_import_directory')
        model_path = os.path.join(import_dir, 'minilm/')
        _model = SentenceTransformer(model_path)
    return _model


def generate_embeddings(input_text: str) -> list:
    model = get_model()
    embedding = model.encode(input_text)
    return embedding.tolist()
$$;

snowflake_import_directory is where IMPORTS puts the stage files. The model loads from its minilm/ folder once per process.
Snowflake passes arguments to the handler by position. So INPUT_TEXT arrives as input_text, and CYPHER and PARAMS arrive as cypher and params.

Check the result:

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J('RETURN 1 AS ok');  -- [{"ok": 1}]
SELECT ARRAY_SIZE(NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GENERATE_EMBEDDINGS('graph databases'));  -- 384

9. Tool functions

Each of these functions runs one fixed Cypher query. The agent can only fill in the parameters, so it can ask only what you planned for. This keeps answers predictable. For all other questions, the agent gets QUERY_NEO4J itself as a tool in step 12.

The functions identify organizations by Organization.id. Names are not unique in the graph: there are 8 Red Hat nodes, and only one has investors. The id also has a unique index. The functions take an organization_id and return IDs with the names, so the agent can pass the IDs on.

FIND_ORGANIZATIONS(name) finds organizations whose name contains name. It returns their IDs, most connected first. The agent uses it for companies named in a question.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.FIND_ORGANIZATIONS(NAME VARCHAR)
RETURNS VARIANT
COMMENT = 'Finds organizations by name; returns their ids'
AS $$
NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J(
    'MATCH (o:Organization)
     WHERE toLower(o.name) CONTAINS toLower($name)
     RETURN o.id as organization_id,
            o.name as name,
            left(o.summary, 120) as summary,
            count{(o)--()} as relationships
     ORDER BY relationships DESC
     LIMIT 10',
    {'name': NAME}
)
$$;

GET_ORGANIZATION_INVESTORS(organization_id) returns an organization’s investors. Investors can be people or organizations. The query follows one HAS_INVESTOR relationship.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GET_ORGANIZATION_INVESTORS(ORGANIZATION_ID VARCHAR)
RETURNS VARIANT
COMMENT = 'Returns investors for a given organization'
AS $$
NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J(
    'MATCH (o:Organization {id: $organization_id})
     RETURN o.id as organization_id,
            o.name as name,
            [(o)-[:HAS_INVESTOR]->(i) | i {.id, .name, type: labels(i)[0]}] as investors',
    {'organization_id': ORGANIZATION_ID}
)
$$;

ANALYZE_RELATIONSHIPS(organization_id, limit, max_depth) returns the organizations within max_depth hops. For each one, it returns the chain of relationships and the distance.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.ANALYZE_RELATIONSHIPS(ORGANIZATION_ID VARCHAR, "LIMIT" NUMBER DEFAULT 20, MAX_DEPTH INT DEFAULT 2)
RETURNS VARIANT
COMMENT = 'Analyzes relationship paths between organizations'
AS $$
NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J(
    CONCAT('MATCH path = (o1:Organization {id: $organization_id})-[]-{1,', MAX_DEPTH, '}(o2:Organization)
    WHERE o1 <> o2
    RETURN DISTINCT o2.id as organization_id,
           o2.name as organization,
           [r in relationships(path) | type(r)] as relationships,
           length(path) as distance
    ORDER BY distance
    LIMIT $limit'),
    {'organization_id': ORGANIZATION_ID, 'limit': "LIMIT"}
)
$$;

-[]-{1,n} is a quantified path pattern. It follows any relationship in either direction, up to MAX_DEPTH hops. CONCAT writes the limit into the query, because Cypher takes no parameter there.
LIMIT is a reserved word, so the function quotes it everywhere. The agent still calls the parameter limit.

SEARCH_NEWS_ARTICLES(organization_id, topic, limit) returns the organization’s news chunks, ranked by how similar they are to topic.

CREATE OR REPLACE FUNCTION NEO4J_AGENT.NEO4J_AGENT_SCHEMA.SEARCH_NEWS_ARTICLES(ORGANIZATION_ID VARCHAR, TOPIC VARCHAR, "LIMIT" NUMBER DEFAULT 20)
RETURNS VARIANT
COMMENT = 'Finds news about an organization that has content about the given topic'
AS $$
NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J('
    MATCH (o:Organization {id: $organization_id})<-[:MENTIONS]-(a:Article)-[:HAS_CHUNK]->(c:Chunk)
    WHERE c.embedding_sbert IS NOT NULL
    WITH DISTINCT a, c, vector.similarity.cosine(c.embedding_sbert, $embedding) AS score
    RETURN a.title as title,
           a.date as date,
           c.text as text,
           score
    ORDER BY score DESC
    LIMIT $limit',
    {
      'organization_id': ORGANIZATION_ID,
      'limit': "LIMIT",
      'embedding': NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GENERATE_EMBEDDINGS(TOPIC)
    })
$$;

GENERATE_EMBEDDINGS(TOPIC) turns the topic into a vector, which the query gets as $embedding.
The graph limits the search to chunks of articles that mention the organization. vector.similarity.cosine ranks these chunks against the topic’s vector.

Test the chain from Snowflake to Neo4j:

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.FIND_ORGANIZATIONS('Neo4j') AS organizations;

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GET_ORGANIZATION_INVESTORS('Ee3Wn9kzHNf2TmXB0gpqx-w');
-- [{"investors": [{"id": ..., "name": "Rod Johnson", "type": "Person"}], "name": "Neo4j", "organization_id": "Ee3Wn9kzHNf2TmXB0gpqx-w"}]
SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.ANALYZE_RELATIONSHIPS('Ee3Wn9kzHNf2TmXB0gpqx-w', 5, 2);
-- [{"distance": 1, "organization": "Microsoft Corporation", "organization_id": ..., "relationships": ["HAS_SUPPLIER"]}, ...]
SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.SEARCH_NEWS_ARTICLES('Ee3Wn9kzHNf2TmXB0gpqx-w', 'funding', 2);
-- [{"date": ..., "score": 0.61, "text": ..., "title": ...}, ...]
SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J('CREATE (x:Test)');
-- {"error": "Rejected: only read-only queries are allowed, this one is of type 'w'."}

10. Customer accounts

The sample CRM data is a view over VALUES. ORGANIZATION_ID is the company’s Organization.id in the graph, and the agent joins on it. ACCOUNT_NAME is for display only.

CREATE OR REPLACE VIEW NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS
COMMENT = 'Sample CRM accounts; ORGANIZATION_ID is Organization.id in Neo4j'
AS
SELECT column1 AS ACCOUNT_ID,
       column2 AS ORGANIZATION_ID,
       column3 AS ACCOUNT_NAME,
       column4 AS SEGMENT,
       column5 AS ARR_USD,
       DATEADD(day, column6, CURRENT_DATE()) AS RENEWAL_DATE,
       column7 AS HEALTH
FROM VALUES
    ('ACC-1001', 'Es6d5vh20OoKzKwm8upOW-Q', 'Uniphore',      'Mid-market',  180000,  25, 'Green'),
    ('ACC-1002', 'EIv355L_XOrKU8mD10lyyeQ', 'Slack',         'Enterprise', 1200000,  40, 'Amber'),
    ('ACC-1003', 'E_j7i1alEOA6VKxhkV_yn5Q', 'Docker',        'Enterprise',  650000,  75, 'Green'),
    ('ACC-1004', 'EcizJxNywN4WY350qq0cr2Q', 'Cloudera',      'Enterprise',  420000,  20, 'Red'),
    ('ACC-1005', 'EoS12ey09M1SH2H43ucoMpQ', 'Okta',          'Enterprise',  900000, 150, 'Green'),
    ('ACC-1006', 'EIATbb7uwOhSYiGqLBPUD0w', 'Red Hat',       'Enterprise', 1500000,  60, 'Amber'),
    ('ACC-1007', 'EUSMLFV8NNIe22mVSEhJzCw', 'VMware',        'Enterprise', 2100000, 200, 'Red'),
    ('ACC-1008', 'EHyKUS1G-OwiHlrdVGmiUFA', 'Workday, Inc.', 'Enterprise',  780000,  85, 'Green');

DATEADD(…, CURRENT_DATE()) keeps the renewal dates in the future.

A semantic view describes the data for Cortex Analyst. Analyst turns the agent’s questions into SQL, so you don’t need a function per table. Semantic views are Snowflake’s recommended way to give agents structured data. The alternative is one custom tool per query, like the Neo4j functions above.

CREATE OR REPLACE SEMANTIC VIEW NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS_SV
  TABLES (
    accounts AS NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS
      PRIMARY KEY (ACCOUNT_ID)
      COMMENT = 'Our customer accounts'
  )
  FACTS (
    accounts.arr_usd AS ARR_USD COMMENT = 'Annual recurring revenue in USD'
  )
  DIMENSIONS (
    accounts.account_id AS ACCOUNT_ID COMMENT = 'Account ID in the CRM',
    accounts.organization_id AS ORGANIZATION_ID COMMENT = 'The company''s organization ID',
    accounts.account_name AS ACCOUNT_NAME COMMENT = 'Company name',
    accounts.segment AS SEGMENT,
    accounts.renewal_date AS RENEWAL_DATE COMMENT = 'Next contract renewal',
    accounts.health AS HEALTH COMMENT = 'Account health: Green, Amber or Red'
  )
  METRICS (
    accounts.total_arr AS SUM(accounts.arr_usd) COMMENT = 'Total annual recurring revenue in USD'
  )
  COMMENT = 'Customer accounts for Cortex Analyst';

GRANT SELECT ON SEMANTIC VIEW NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS_SV TO ROLE "USER";

The comments tell Analyst what each column means. The semantic view says nothing about Neo4j. The agent’s tool description in step 12 explains how the IDs map to the graph.
The USER role needs SELECT on the semantic view only. It needs no grant on the view underneath.

Check the result:

SELECT * FROM SEMANTIC_VIEW(NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS_SV
  DIMENSIONS ACCOUNTS.ACCOUNT_NAME, ACCOUNTS.ORGANIZATION_ID, ACCOUNTS.HEALTH);
-- ACCOUNT_NAME | ORGANIZATION_ID         | HEALTH
-- Uniphore     | Es6d5vh20OoKzKwm8upOW-Q | Green ...

11. Agent

Go to AI & ML > Agents and click Create agent.
Pick the database and schema NEO4J_AGENT.NEO4J_AGENT_SCHEMA. Enter the object name NEO4J_RESEARCH_AGENT, which becomes part of the REST URL, and the display name Neo4j research agent. Click Create agent.
Go to Configuration > Instructions and leave Model on auto. The model picks the tools and their arguments, and it writes the answer.
Enter these Orchestration instructions. They tell the agent how the two sources join:

Customer accounts are in Snowflake (customer_accounts). Company knowledge is in Neo4j (all other tools).
Join them on ORGANIZATION_ID, which is Organization.id in the graph. Never join on names, because names are not unique.
For a company that is not an account, get its organization_id from find_organizations.
Prefer the dedicated Neo4j tools. Use query_neo4j only when none of them fits the question.
Answer in the chat only. Never write files or create skills.

Creating the agent commits VERSION$1, which has no tools. The steps below edit the live version. Snowsight marks it as Draft until you publish it in step 13.

12. Tools

The agent picks a tool by its description alone, so enter the texts below exactly. All tools are on Configuration > Tools. Click Save after you have added all six.

Switch off the Code Execution tool. New agents have it on by default, but this agent needs only its own tools. With it on, the agent can write files to your workspace without being asked.

`customer_accounts` (Cortex Analyst)

Under Query structured data, click Add semantic view > Add semantic view.
Pick the database NEO4J_AGENT.NEO4J_AGENT_SCHEMA and the semantic view CUSTOMER_ACCOUNTS_SV.
Enter the name customer_accounts and the description below. Leave Warehouse on User’s default and set Query timeout to 60.
Click Add.

Our customer accounts in Snowflake: account ID, organization ID, name, segment, annual recurring revenue,
renewal date and account health (Green, Amber, Red).
ORGANIZATION_ID is Organization.id in the Neo4j graph: select it and pass it to the Neo4j tools.
ACCOUNT_NAME is for display only.

USAGE SCENARIOS:
- Questions about our customers, renewals, revenue or account health
- The organization IDs to pass to the Neo4j tools

Custom tools

Add each custom tool with Custom tools > + Add:

Set Resource type to function. The default is procedure.
Pick NEO4J_AGENT.NEO4J_AGENT_SCHEMA under Database & Schema, then pick the Custom tool identifier. Snowsight adds one parameter row per argument.
Enter the Name and Description from the tool’s section below. Leave Warehouse on User’s default and set Query timeout to 60.
Enter a description for each parameter. Untick Required where the section says so; the SQL defaults then apply.
Click Add.

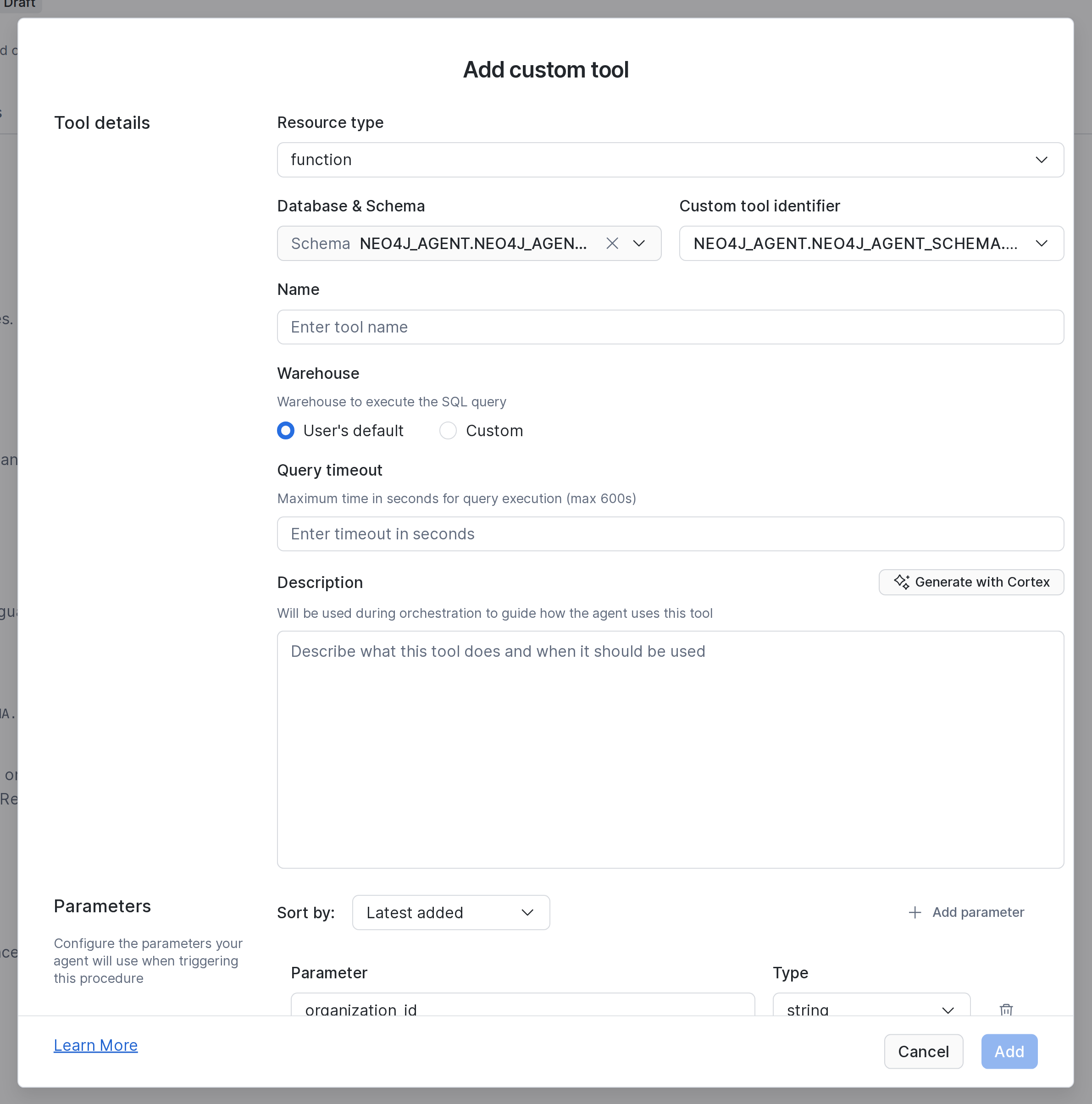

Add custom tool dialog: resource type function, database, schema and identifier

`find_organizations` (identifier `FIND_ORGANIZATIONS`)

Finds organizations in the Neo4j graph by name (case-insensitive, partial match) and returns their
organization_id, name, a short summary and their number of relationships, most connected first.
Names are not unique: pick by summary and relationships.

USAGE SCENARIOS:
- Getting the organization_id of a company named in the question, for the other Neo4j tools

name: The company name, or part of it

`get_organization_investors` (identifier `GET_ORGANIZATION_INVESTORS`)

Returns an organization's investors from the Neo4j graph: people and organizations, each with id, name and type.

USAGE SCENARIOS:
- Retrieving investor information for company profile pages or reports
- Performing due diligence research on company ownership and investment relationships

organization_id: Organization.id in the graph

`analyze_relationships` (identifier `ANALYZE_RELATIONSHIPS`)

Analyzes relationship paths from an organization in the Neo4j graph.
Returns related organizations with their organization_id, relationship types and path distance.

USAGE SCENARIOS:
- Mapping organizational networks
- Exploring indirect connections between companies
- Supporting due diligence and risk analysis

organization_id: Organization.id in the graph
limit: Maximum number of results to return (untick Required)
max_depth: Maximum path length to search (untick Required)

`search_news_articles` (identifier `SEARCH_NEWS_ARTICLES`)

Finds news articles about an organization that are relevant to a topic, using semantic search over article content.

USAGE SCENARIOS:
- Retrieving news coverage for a company filtered by topic
- Supporting research and media monitoring workflows

organization_id: Organization.id in the graph
topic: What the articles should be about, in plain words
limit: Maximum number of articles to return (untick Required)

`query_neo4j` (identifier `QUERY_NEO4J`)

[!WARNING] The LLM writes the Cypher for this tool. Read Free-form Cypher before you add it. Skip it to allow the fixed queries only.

Delete the pre-filled params row, because the tool passes only the Cypher.

Runs a read-only Cypher query against the Neo4j companies graph and returns the records.
Write queries, LOAD CSV, dbms.* and most APOC procedures are rejected with an error: read it and fix the query.
Always add a LIMIT (at most 50) or aggregate.

GRAPH SCHEMA:
- (:Organization {id, name, summary, isPublic: boolean, nbrEmployees: integer, revenue: float, isDissolved: boolean})
- (:Person {id, name, summary}), (:IndustryCategory {name}), (:City {name}), (:Country {name})
- (:Article {title, date: DATE_TIME, author, siteName, sentiment: float, summary}), (:Chunk {text})
- (Organization)-[:HAS_INVESTOR]->(Person|Organization)
- (Organization)-[:HAS_CEO|HAS_BOARD_MEMBER]->(Person)
- (Organization)-[:HAS_COMPETITOR|HAS_SUBSIDIARY|HAS_SUPPLIER]->(Organization)
- (Organization)-[:HAS_CATEGORY]->(IndustryCategory)
- (Organization)-[:IN_CITY]->(City)-[:IN_COUNTRY]->(Country)
- (Article)-[:MENTIONS]->(Organization), (Article)-[:HAS_CHUNK]->(Chunk)
Properties without a type are strings; relationships have no properties.
Organization.id is unique and indexed: match organizations on id, and return ids with names.
Article.sentiment ranges from -1 (negative) to 1 (positive) and can be NaN.
Compare dates with datetime(), e.g. a.date >= datetime('2023-01-01').

USAGE SCENARIOS:
- Questions the other Neo4j tools don't cover, e.g. competitors, CEOs, board members, subsidiaries, locations
- Combining several graph lookups into one query, e.g. for a list of companies

cypher: The read-only Cypher query; inline all values

13. Publish

Click Publish and confirm. This commits the live version as VERSION$2. Apps and the REST API use the latest committed version. The clock icon at the top right lists all versions.
Let the USER role use the agent, on the agent’s Access tab or in SQL:

GRANT USAGE ON AGENT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_RESEARCH_AGENT TO ROLE "USER";
SHOW AGENTS IN SCHEMA NEO4J_AGENT.NEO4J_AGENT_SCHEMA;

14. Try it

Snowflake and Neo4j combined

On the Preview tab, ask Who are the investors of our accounts in Red health? The answer takes about 20 seconds. It names the investors of Cloudera (Diane Greene, Jeff Weiner, …) and VMware (Pivotal, JFROG, …).
Hover over the icon under the answer until Show Traces appears, and click it. The spans show the join:
- SQL Execution shows the SQL that Cortex Analyst wrote from the semantic view. Its result has the ORGANIZATION_ID of each Red account.
- Custom Tool shows one get_organization_investors call per Red account. Input > Arguments has the organization_id from the Snowflake result. Output > Results has the record from Neo4j. Open in fullscreen shows the whole record.

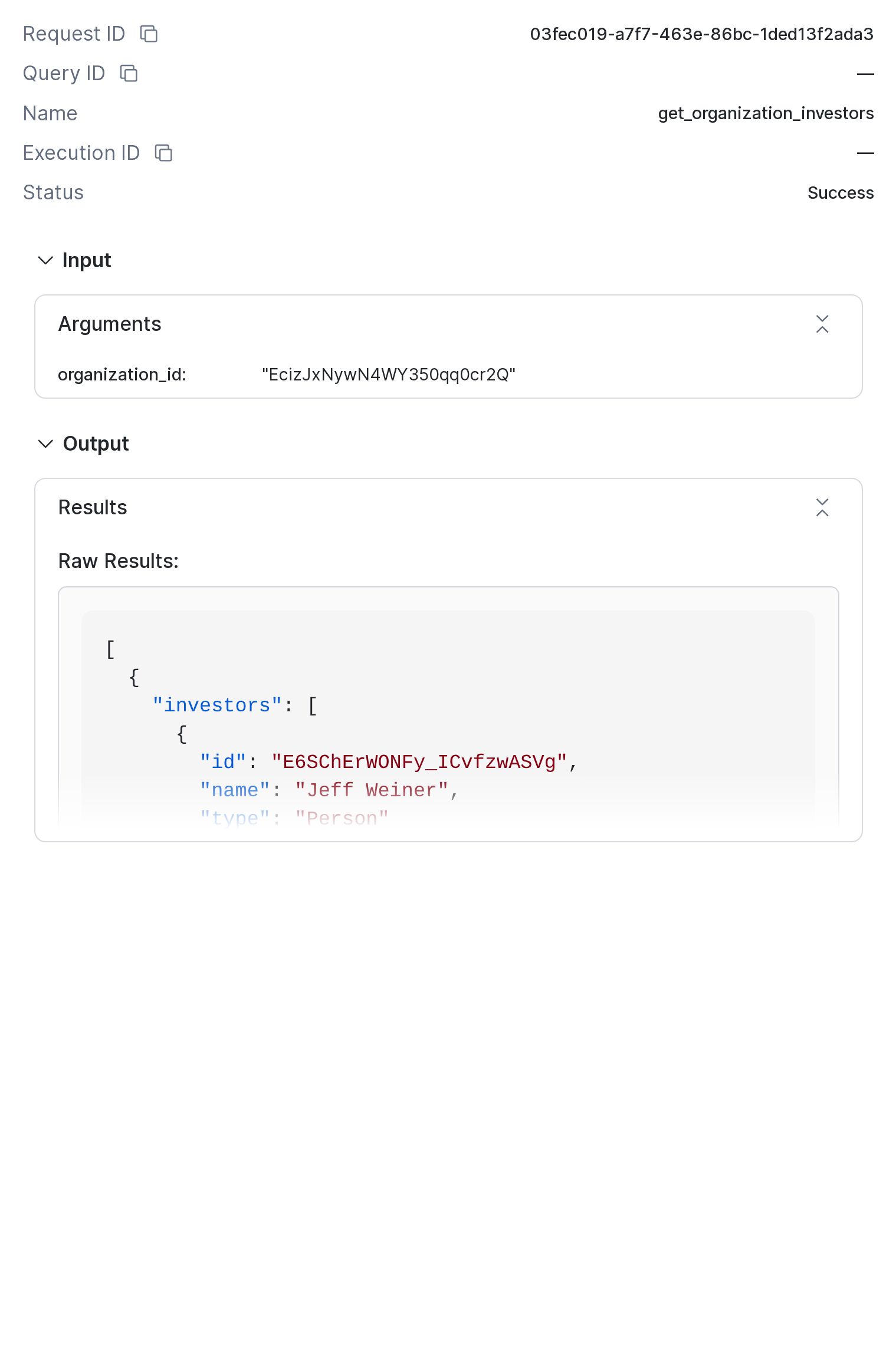

Trace of a Custom Tool span: tool name, arguments and raw result

Neither source can answer this alone. Account health is only in Snowflake, and investors are only in the graph.

More questions to try: Who are the investors of Neo4j?, What organizations are connected to Neo4j through indirect relationships? and What recent news is there about our Amber accounts? For Neo4j, the agent calls find_organizations first.

Free-form Cypher

Ask Which of our accounts renewing in the next 45 days compete with another of our accounts? The answer names Slack, which competes with Workday, Inc., and Cloudera, which competes with Docker.
Open Show Traces. After the SQL Execution span for the renewals comes a Custom Tool span for query_neo4j. No fixed tool finds competitors, so the agent wrote its own Cypher from the schema in the tool description. Arguments shows it, for example:

   MATCH (o:Organization)-[:HAS_COMPETITOR]-(c:Organization)
   WHERE o.id IN ['EcizJxNywN4WY350qq0cr2Q', 'Es6d5vh20OoKzKwm8upOW-Q', 'EIv355L_XOrKU8mD10lyyeQ']
   RETURN o.id AS renewing_id, o.name AS renewing_name, c.id AS competitor_id, c.name AS competitor_name

The Cypher differs from run to run, but the answer should stay the same.

More free-form questions to try: Who are the CEOs of our Red accounts? and Which of our accounts had the most negative news since 2023?

To check the grants, switch to the USER role in the account menu (Switch role) and ask again.

Troubleshooting

Symptom Cause and fix

Symptom	Cause and fix
`USER` missing from a role picker	The role list is cached. Reload Snowsight.
Function missing from Custom tool identifier	The object list is cached. Reload the page and open the dialog again.
`{"error": "Could not resolve Neo4j address: …"}`	The network rule or the integration is wrong. The host must match the URI in `QUERY_NEO4J`.
`{"error": "Neo4j query failed: …"}` with an auth message	The username or password in the secret is wrong.
`GENERATE_EMBEDDINGS` fails to load the model	Files are missing on the stage, or they were uploaded gzipped.
`{"error": "Rejected: …"}`	`QUERY_NEO4J` refused a write or a denied call. The agent usually tries again with a fixed query.
`named arguments [CYPHER] do not match any signature`	`QUERY_NEO4J` was created with quoted lowercase argument names.
`query_neo4j` fails with `argument type object which is not supported`	The `params` row was not deleted from the tool.

USER missing from a role picker

The role list is cached. Reload Snowsight.

Function missing from Custom tool identifier

The object list is cached. Reload the page and open the dialog again.

{"error": "Could not resolve Neo4j address: …"}

The network rule or the integration is wrong. The host must match the URI in QUERY_NEO4J.

{"error": "Neo4j query failed: …"} with an auth message

The username or password in the secret is wrong.

GENERATE_EMBEDDINGS fails to load the model

Files are missing on the stage, or they were uploaded gzipped.

{"error": "Rejected: …"}

QUERY_NEO4J refused a write or a denied call. The agent usually tries again with a fixed query.

named arguments [CYPHER] do not match any signature

QUERY_NEO4J was created with quoted lowercase argument names.

query_neo4j fails with argument type object which is not supported

The params row was not deleted from the tool.

QUERY_NEO4J returns errors as {"error": …} values. It does not raise SQL errors.

Clean up

DROP DATABASE IF EXISTS NEO4J_AGENT CASCADE;
DROP INTEGRATION IF EXISTS NEO4J_ACCESS_INTEGRATION;
DROP ROLE IF EXISTS "USER";

Snowflake Cortex - Snowsight

What you build

Before you start

1. Database and schema

2. Role

3. Grants

4. Secret

5. Network rule

6. External access integration

7. Model stage

8. Python UDFs

9. Tool functions

10. Customer accounts

11. Agent

12. Tools

customer_accounts (Cortex Analyst)

Custom tools

find_organizations (identifier FIND_ORGANIZATIONS)

get_organization_investors (identifier GET_ORGANIZATION_INVESTORS)

analyze_relationships (identifier ANALYZE_RELATIONSHIPS)

search_news_articles (identifier SEARCH_NEWS_ARTICLES)

query_neo4j (identifier QUERY_NEO4J)

13. Publish

14. Try it

Snowflake and Neo4j combined

Free-form Cypher

Troubleshooting

Clean up

`customer_accounts` (Cortex Analyst)

`find_organizations` (identifier `FIND_ORGANIZATIONS`)

`get_organization_investors` (identifier `GET_ORGANIZATION_INVESTORS`)

`analyze_relationships` (identifier `ANALYZE_RELATIONSHIPS`)

`search_news_articles` (identifier `SEARCH_NEWS_ARTICLES`)

`query_neo4j` (identifier `QUERY_NEO4J`)
