Snowflake Cortex Agents + Neo4j Integration

This sample builds a Cortex agent in Snowflake. The agent answers questions about companies by combining two sources:

  • customer accounts, stored in Snowflake

  • company knowledge (investors, competitors, news), stored in the Neo4j companies demo graph at neo4j+s://demo.neo4jlabs.com:7687

It shows three things:

  • A Cortex agent can query Neo4j from inside Snowflake.

  • One answer can join data from both sources. The join key is the Neo4j organization ID.

  • Graph tools come in two kinds. Fixed Cypher queries are predictable. Free-form Cypher is flexible but needs guards.

See also the Cortex Agents documentation.

Architecture

Diagram
Object Role

QUERY_NEO4J

Reads the Neo4j login from a Snowflake secret and connects through an external access integration.

GENERATE_EMBEDDINGS

Turns the search topic into a vector. SEARCH_NEWS_ARTICLES ranks news by similarity to it.

customer_accounts tool

Cortex Analyst writes the SQL from the semantic view.

Semantic views are Snowflake’s recommended way to give agents structured data. The semantic view knows nothing about Neo4j. The tool description in the agent spec explains how its IDs map to the graph.

Joining Snowflake and Neo4j

Each account has an ORGANIZATION_ID. It is the company’s Organization.id in the graph. The Neo4j tools take and return these IDs, so the agent can pass them from one source to the other.

The join uses IDs, not names, for two reasons:

  • Names are not unique in the graph. There are 8 Red Hat nodes, and only one has investors.

  • Organization.id has a unique index. A lookup by name scans every organization.

For a company that is not an account, the agent gets the ID from find_organizations.

Question Tools the agent calls

Who are the investors of our accounts in Red health?

customer_accounts, then get_organization_investors for each Red account

Which of our accounts renewing in the next 45 days compete with another of our accounts?

customer_accounts, then query_neo4j. No fixed query finds competitors.

Who are the investors of Neo4j?

find_organizations, then get_organization_investors

Free-form Cypher

[!WARNING] The query_neo4j tool runs Cypher that the LLM writes. Prompt injection can steer that Cypher, for example through article text the agent reads. Give the Neo4j user access only to data the agent may see.

QUERY_NEO4J checks every query, including the fixed ones:

Check What it stops

A denylist: LOAD CSV, dbms.*, apoc.load/import/export/cypher/periodic/trigger/systemdb

Reads beyond the graph: files, URLs, dynamic Cypher and DBMS internals. EXPLAIN reports these as reads.

EXPLAIN runs first. The query type must be r.

Writes (w, rw) and schema or admin commands (s)

The query runs in read access mode (routing_=READ).

Any write the server detects

A rejected query returns {"error": …​}. The agent reads the error and fixes its next query. The checks do not limit cost: an unbounded query runs until the tool’s 60-second query_timeout. To allow fixed queries only, remove query_neo4j from the agent spec.

The tool passes only cypher, so the agent writes all values into the query. Custom tools cannot pass OBJECT arguments, and PARAMS defaults to {}.

MCP instead of UDFs

  • Cortex Agents can call external MCP servers through MCP connectors. These connectors support only OAuth.

  • The self-hosted Neo4j MCP server has no OAuth, so it does not work with them. The public demo graph is also not on Aura.

  • The Aura-hosted MCP and Aura Agent MCP endpoints support OAuth, so they should work with MCP connectors.

Samples

Sample What it does

1-terraform

Creates the whole stack with Terraform.

2-snowsight

Builds the same stack by hand in Snowsight.

Both samples use the same Python handlers, SQL bodies and agent tools from shared/.

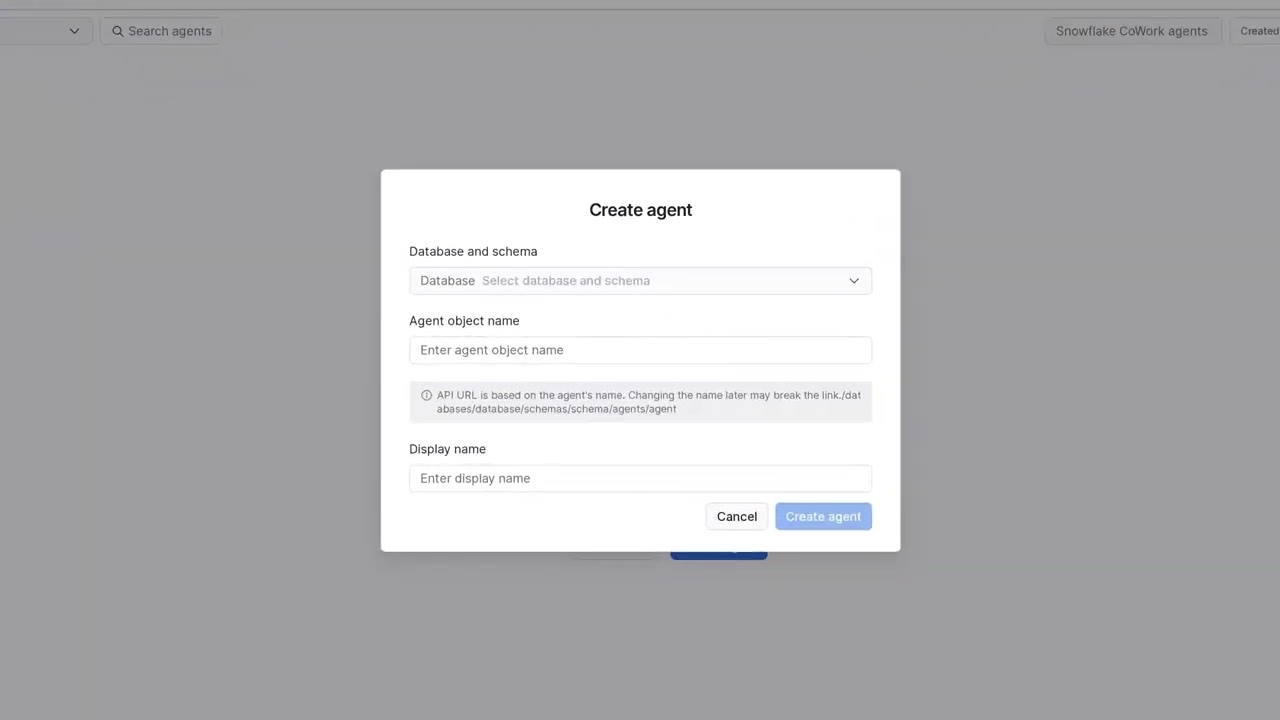

You can also watch Sample 2 step by step on YouTube.

Watch the video

Repository layout

snowflake-cortex/
├── shared/                  # used by all samples
│   ├── functions/           # Python UDF handlers
│   ├── sql/                 # SQL function bodies, accounts view, semantic view
│   ├── agent/               # agent spec template
│   └── model/minilm/        # all-MiniLM-L6-v2 files (downloaded, gitignored)
└── samples/
    ├── 1-terraform/         # Terraform config, bootstrap SQL
    └── 2-snowsight/         # Snowsight guide, screenshots

Running the agent

The agent is NEO4J_AGENT.NEO4J_AGENT_SCHEMA.NEO4J_RESEARCH_AGENT. You can call it from Snowsight or through the Cortex Agents REST API. Its tools also work as plain SQL:

SELECT * FROM SEMANTIC_VIEW(NEO4J_AGENT.NEO4J_AGENT_SCHEMA.CUSTOMER_ACCOUNTS_SV
  DIMENSIONS ACCOUNTS.ACCOUNT_NAME, ACCOUNTS.ORGANIZATION_ID, ACCOUNTS.HEALTH);

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.FIND_ORGANIZATIONS('Uniphore');  -- organization_id Es6d5vh20OoKzKwm8upOW-Q

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.GET_ORGANIZATION_INVESTORS('Es6d5vh20OoKzKwm8upOW-Q');

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.ANALYZE_RELATIONSHIPS('Es6d5vh20OoKzKwm8upOW-Q', 10, 2);

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.SEARCH_NEWS_ARTICLES('Es6d5vh20OoKzKwm8upOW-Q', 'Roberto Pieraccini', 3);

SELECT NEO4J_AGENT.NEO4J_AGENT_SCHEMA.QUERY_NEO4J(
  'MATCH (o:Organization {id: "E_j7i1alEOA6VKxhkV_yn5Q"})-[:HAS_COMPETITOR]-(c) RETURN DISTINCT c.id, c.name LIMIT 10');
