Multiple databases

AuraDB Business Critical AuraDB Virtual Dedicated Cloud

AuraDB Business Critical and Virtual Dedicated Cloud support multiple databases within an instance. You can create and manage databases using the Aura console or the Aura API.

Each instance has its own compute and storage and the separate databases run within it. Creating and removing databases is faster than managing separate instances. And, you can scale within the same instance, reducing administrative overhead.

Billing for instances with multiple databases enabled is the same as for single database instances. Usage is charged at your standard AuraDB GB-hour rate, regardless of the number of databases.

User and system databases

An instance contains a system database and a default user database named neo4j. The system database stores RBAC and credentials. User databases store graph data. When you enable multiple databases, you can add more user databases alongside neo4j.

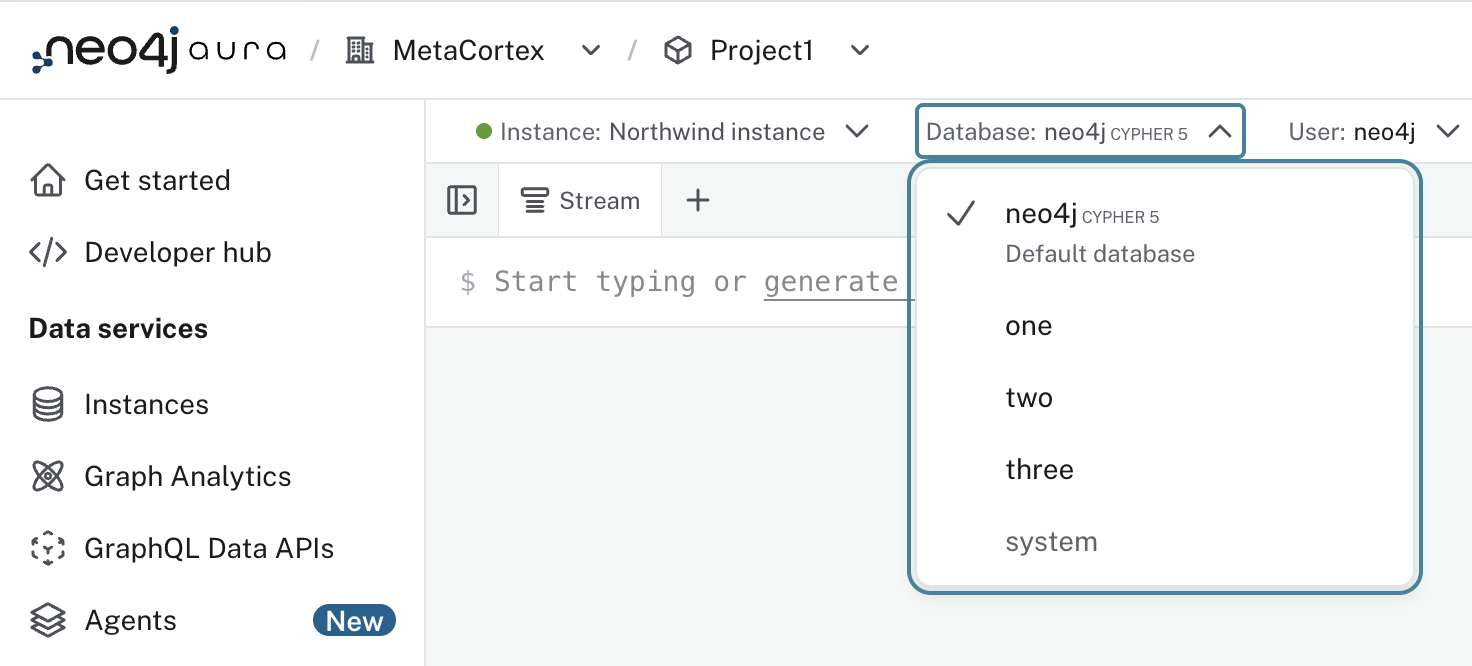

Database selector in a multiple database instance
Figure 1. Database selector for an instance with multiple databases
Database in the screenshot What it is

neo4j, one, two, three

The user databases that store graph data. neo4j is the default.

system

The system database that stores RBAC and credentials.

Limits (RAM and maximum databases)

All databases share the instance’s compute and memory resources. By default, up to 5 databases per GB of RAM can be provisioned. The maximum number of databases depends on the memory size (RAM) of the instance, with an upper limit of 100 for AuraDB Business Critical and 250 for AuraDB Virtual Dedicated Cloud.

Available instance memory Maximum databases
AuraDB Business Critical		 Maximum databases
AuraDB Virtual Dedicated Cloud

2GB

10

10

4GB

20

20

8GB

40

40

16GB

80

80

32GB

100

160

64GB and above

100

250

These limits are the maximum number of databases you can create, choose an instance size that fits your database count and workload, and scale up if you see resource pressure.

Each project can have up to 20 multiple database enabled instances by default. This default applies to both AuraDB Business Critical and Virtual Dedicated Cloud, and helps keep performance and provisioning consistent as usage grows. If you need more, contact Support with your project, region, and the number of databases you expect to run, and your request will be assessed.

Managing databases

API requirements

All endpoints below now require your Organization ID and Project ID in the path, in addition to your Instance ID.

Standard guidance for creating API credentials applies, see Aura API → Overview.

Multiple databases use the beta version of the Aura API. Use https://api.neo4j.io/v2beta1 as the base URL.

Create a multiple database instance

You must enable multiple databases during instance creation. This setting cannot be changed later.

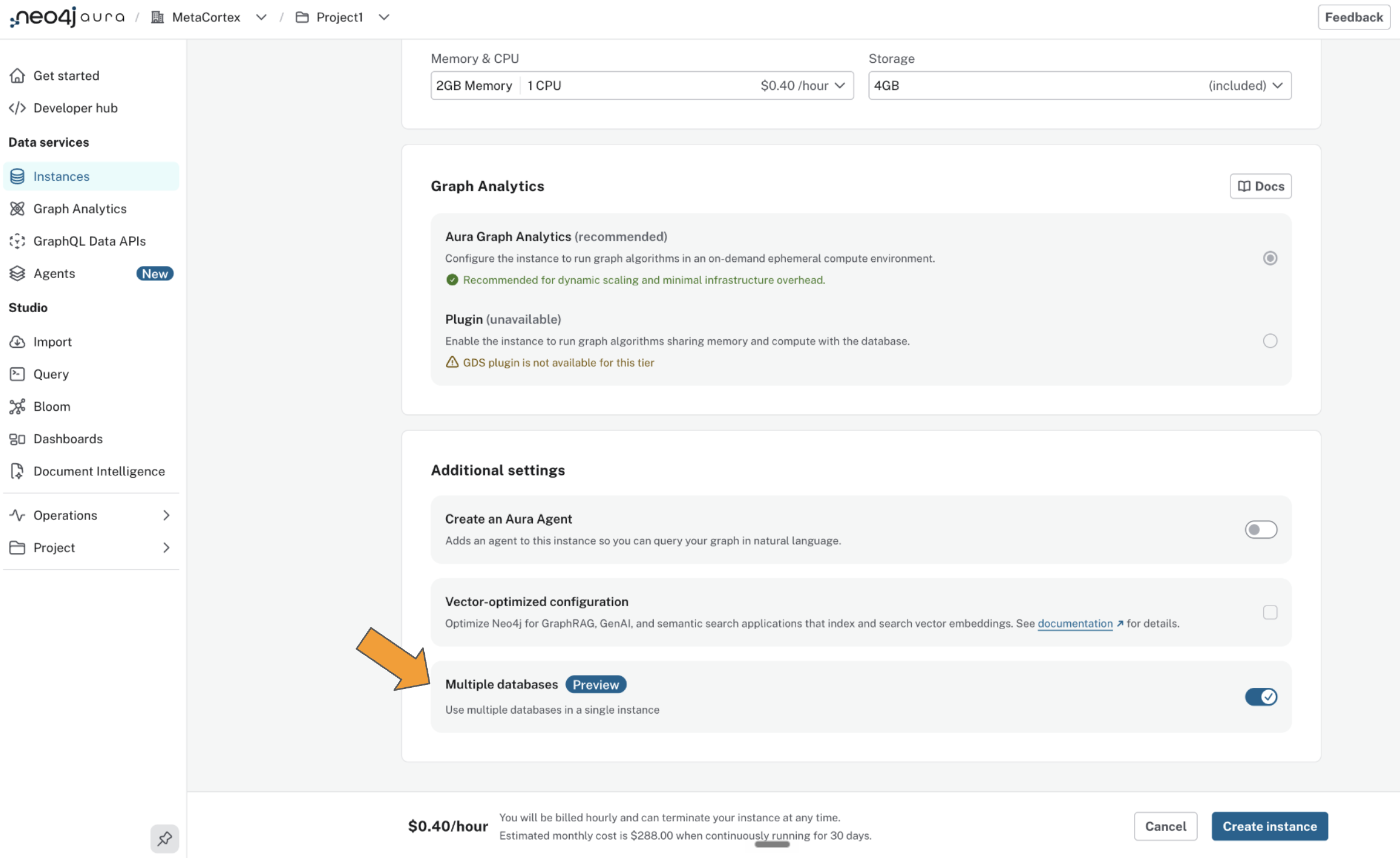

During instance creation, scroll down to Additional settings and enable Multiple databases.

Multiple databases toggle
POST /organizations/{orgId}/projects/{projectId}/instances

curl -X POST "https://api.neo4j.io/v2beta1/organizations/$ORG_ID/projects/$PROJECT_ID/instances" \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "region": "europe-west1",
    "memory": "4GB",
    "storage": "8GB",
    "name": "northwindinstance",
    "type": "business-critical",
    "cloud_provider": "gcp",
    "multi_database": true
  }'

Create databases

Databases cannot be created using Cypher database management commands, only via API and Aura console.

When an instance with multiple databases enabled is created, a default user database named neo4j is also created automatically. It is not possible to delete this database. Databases contain a name and an automatically generated id.

Database names follow standard neo4j rules and are immutable so cannot be changed after they are created. Avoid using personal or sensitive information in database names.

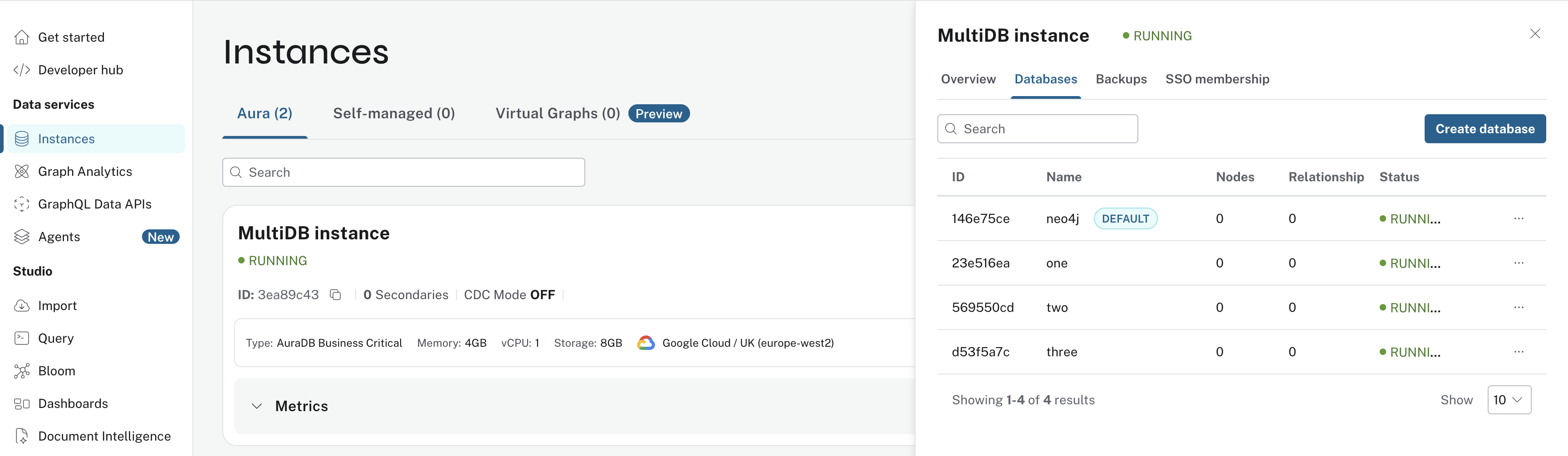

From the instance […​] more menu > select Databases > select Create Database.

Create database
POST /organizations/{orgId}/projects/{projectId}/instances/{instanceId}/databases

curl -X POST "https://api.neo4j.io/v2beta1/organizations/$ORG_ID/projects/$PROJECT_ID/instances/$INSTANCE_ID/databases" \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "test"
  }'

View database details

You can create, view, and manage databases from the instance Databases view. Access it from either:

  • The instance […​] more menu > select Databases

  • Inspect > select the Databases tab.

Instance details

GET /organizations/{orgId}/projects/{projectId}/instances/{instanceId}/databases

Database details

GET /organizations/{orgId}/projects/{projectId}/instances/{instanceId}/databases/{databaseId}

Delete database

Open the database details > from the database […] more menu > select Delete.

DELETE /organizations/{orgId}/projects/{projectId}/instances/{instanceId}/databases/{databaseId}

Connecting applications

When connecting to a multiple database instance from an external client, specify the database name for your session or query. The database name identifies which database to access. If no database name is provided, queries run against the default neo4j database. This applies to drivers, the Query API, and other external sources.

Supported features

Multiple databases are supported across Aura tools. There are some things to consider when working with multiple databases:

Updates about supported features will be added to Canny.
